Strata
urniture
Addison Instructions
1A
Watch our assembly videos at www.stratafurniture.com/videos.html

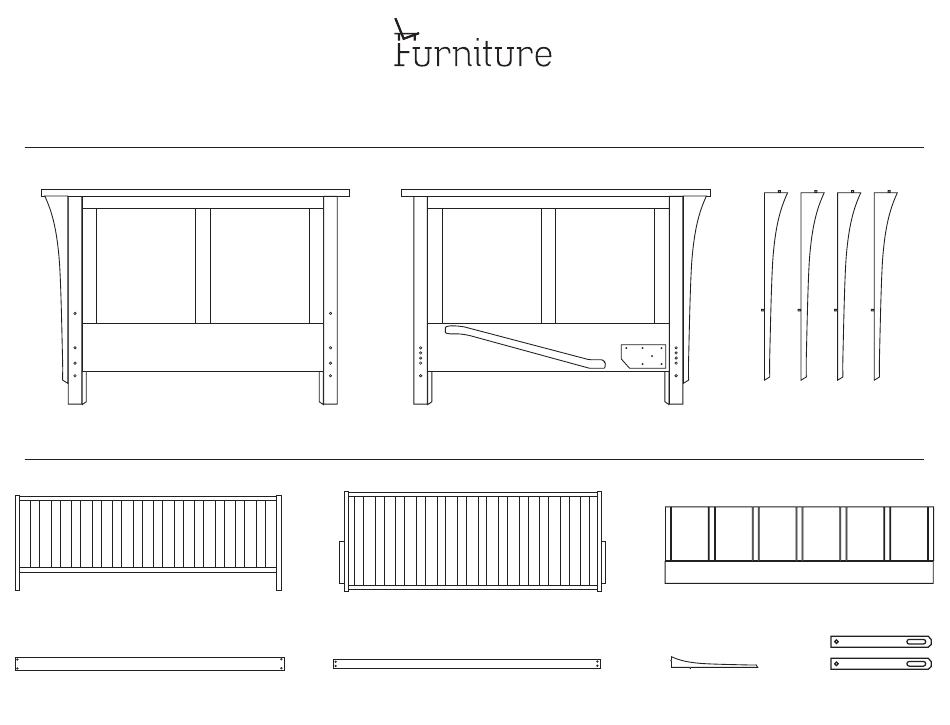

Parts in the Arm Box:
Corbels x 4
Arm - Outside View
Arm - Inside View
1B
Parts in the Body Box:
Back Deck x 1
Seat Deck x 1
Back Panel x 1
with the Feet attached
Back Panel Corbel x 1
Advance Arms x 2
Stretcher x 1
Foot Connector Bar x 1
Page 1 of 8
Advertisement
Related Manuals for Strata Furniture Addison
Summary of Contents for Strata Furniture Addison
- Page 1 Strata urniture Addison Instructions Watch our assembly videos at www.stratafurniture.com/videos.html Parts in the Arm Box: Corbels x 4 Arm - Outside View Arm - Inside View Parts in the Body Box: Back Deck x 1 Seat Deck x 1 Back Panel x 1...
- Page 2 Strata urniture Addison Instructions Hardware in the Body Box: Fit the Wooden Dowels into the Stretchers End of Stretcher Long Bolts (80mm) x 10 Short Bolts (30mm) x 2 For the Stretcher and Back Panel For the Back Panel Corbels...
- Page 3 Strata urniture Addison Instructions Assemble the Back Panel between the Arms Wooden Dowels Long Bolts (80 mm) Back Panel Corbel Barrel Nut Wooden Dowels Long Bolts (80 mm) Barrel Nuts Short Bolts (30 mm) Fit Wooden Dowels into back panel.
- Page 4 Strata urniture Addison Instructions Assemble the Stretcher between the Arms Back Panel Long Bolts (80 mm) Barrel Nuts Wooden Dowels Stretcher Fit the Stretcher, with the Barrel Nut holes on the inside, to the Long Bolts (80 mm) inside edge of the Arms.
- Page 5 Strata urniture Addison Instructions Join the Seat and Back Deck together. Lay both Decks out flat on the floor with the stickers facing upwards. Lock the clevis pin with a washer The Seat Deck fits inside the Back Deck as shown. Slip the Long Long Clevis Pin and locking pin.
- Page 6 Strata urniture Addison Instructions Attach the Connector Bar to the Legs. Lift the Seat Deck so it is Bolts (60mm) resting on the Back Deck, the feet should be pointing DOWNWARDS. Foot Line up the holes between the Connector Bar and the Feet.
- Page 7 Strata urniture Addison Instructions Fit the Seat Back Decks to the Frame. Connect the Advance Arms to the Arms. Back Panel Washer Advance Arm Long Sleeve Washer 60mm Bolt All joints must be left loose. All joints must Fit the Strap to the Back Deck be left loose.
- Page 8 Strata urniture Addison Instructions Operating Instructions Watch our videos at www.stratafurniture.com/videos.html Attach the Corbels to the Arms. To convert into a couch position Fit the dowel at the top of the Corbel into the •Remove any pillows and other obstructions hole on the underside of the Arm, and then fit •Push up the mattress into an inverted couch position...
