Summary of Contents for Strata Furniture Fremont

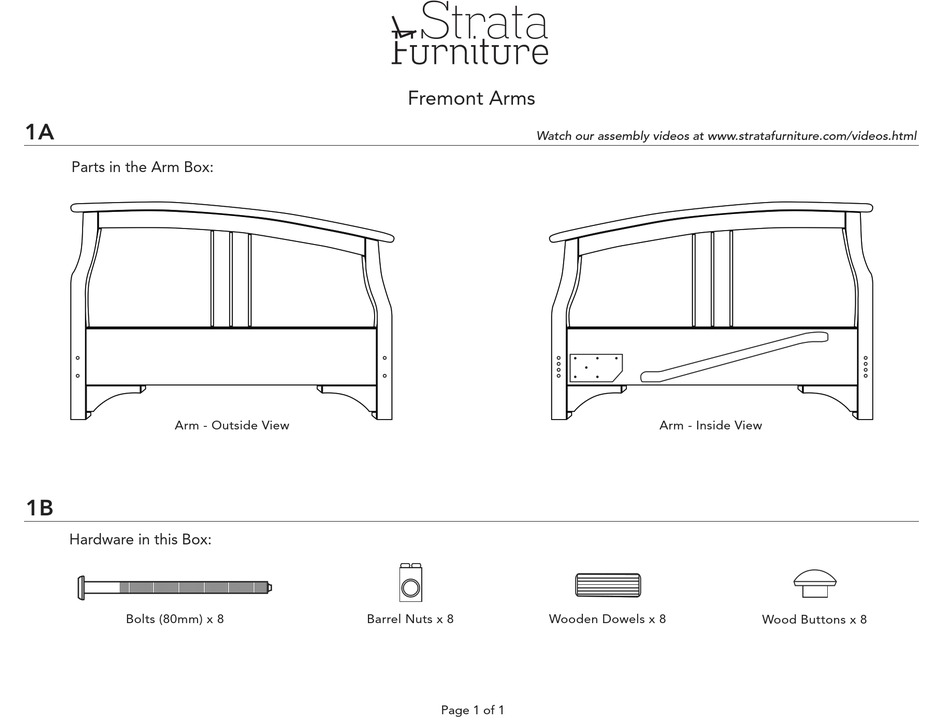

- Page 1 Strata urniture Fremont Arms Watch our assembly videos at www.stratafurniture.com/videos.html Parts in the Arm Box: Arm - Outside View Arm - Inside View Hardware in this Box: Bolts (80mm) x 8 Barrel Nuts x 8 Wooden Dowels x 8 Wood Buttons x 8...
- Page 2 Strata urniture Assembly Instructions for Carriage Body, all sizes Watch our assembly videos at www.stratafurniture.com/videos.html Parts in the Body Box: Back Deck x 1 Seat Deck x 1 with the Feet attached Foot Connector Bar x 1 Stretcher x 2 Advance Arms x 2 Hardware in the Box: Bolts (60mm) x 6...
- Page 3 Strata urniture Assembly Instructions for Carriage Body, all sizes Fit the Wooden Dowels into the Stretchers Attach the Arms* to the Stretchers using hardware in arm box. Be patient, it can be tricky to start the bolts in the nuts - a screwdiver will help you line up the Barrel Nut with the Bolt.
- Page 4 Strata urniture Assembly Instructions for Carriage Body, all sizes Join the Seat and Back Deck together. Lay both Decks out flat on the floor with the stickers facing upwards. Lock the clevis pin with a washer The Seat Deck fits inside the Back Deck as shown. Slip the Long Long Clevis Pin and locking pin.
- Page 5 Strata urniture Assembly Instructions for Carriage Body, all sizes Attach the Connector Bar to the Legs. Lift the Seat Deck so it is 60mm Bolts resting on the Back Deck, the feet should be pointing DOWNWARDS. Foot Line up the holes between the Connector Bar and the Feet.
- Page 6 Strata urniture Assembly Instructions for Carriage Body, all sizes Fit the Seat Back Decks to the Frame. Tighten all eight Bolts. Connect the Advance Arms to the Arms. Back Deck All joints must be left loose. All joints must be left loose. Please Note: Washer Insert the decks into the partially completed...
- Page 7 Strata urniture Assembly Instructions for Carriage Body, all sizes Operating Instructions Watch our videos at www.stratafurniture.com/videos.html Fit the Strap to the Back Deck. To convert into a couch position •Remove any pillows and other obstructions •Push up the mattress into an inverted couch position and then lift up the seat deck into a vertical position.
