Strata Furniture 18220 Assembly Instructions

Basic bed, full & queen

Download this manual

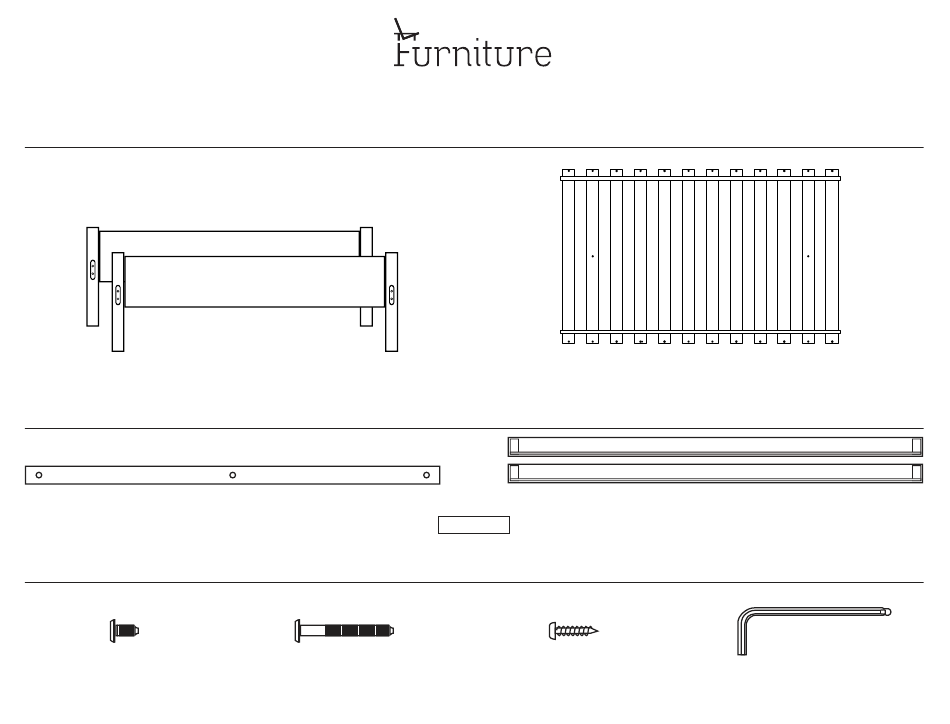

Parts in Box 1 of 2:

Headboard / Footboard x 2

Parts in Box 2 of 2:

Center Rail x 1

Hardware in Box 2 of 2:

Bolts (16mm) x 8

For the Headboard

and Footboard

Strata

urniture

Assembly Instructions for Basic Bed, Full & Queen

Slat Support Feet x 3

Bolts (70mm) x 3

For the Slat Support Feet

Watch our assembly videos at www.stratafurniture.com/videos.html

*May come in separate box

Screw x 28

For Slats, Slat Support

Page 1 of 4

Slats* x 1

Stretcher x 2

Allen Key x 2

One for 12mm Bolts,

One for 70mm & 90mm Bolts

Need help?

Do you have a question about the 18220 and is the answer not in the manual?

Page 1 Strata urniture Assembly Instructions for Basic Bed, Full & Queen Watch our assembly videos at www.stratafurniture.com/videos.html Parts in Box 1 of 2: Headboard / Footboard x 2 Slats* x 1 *May come in separate box Parts in Box 2 of 2: Center Rail x 1 Stretcher x 2 Slat Support Feet x 3...
Page 2 Strata urniture Assembly Instructions for Platform Bed, Full & Queen Insert 16mm Bolts into Headboard and Footboard. Connect the Stretchers to the Headboard and Footboard. Leave bolts loose! Drop Stretcher bracket over 16mm Bolts on Headboard and Footboard as shown. Tighten all 16mm Bolts with Allen Key.
Page 3 Strata urniture Assembly Instructions for Platform Bed, Full & Queen Roll slats out on top of Stretchers with Strip-side down. Attach the Slat Support Feet to the Center Rail Make sure slats are evenly spaced! using the 70mm Bolts as shown. Place Center Rail beneath the slats so it aligns with pre-drilled holes in the slats.
Page 4 Strata urniture Assembly Instructions for Platform Bed, Full & Queen Using two Screws, attach Center Rail to slats as shown. Attach Slats to Stretchers using Screws as shown. An electric screwdriver is helpful for this step. Screw Stretcher Headboard* Screws Slat Center Rail Slats...
