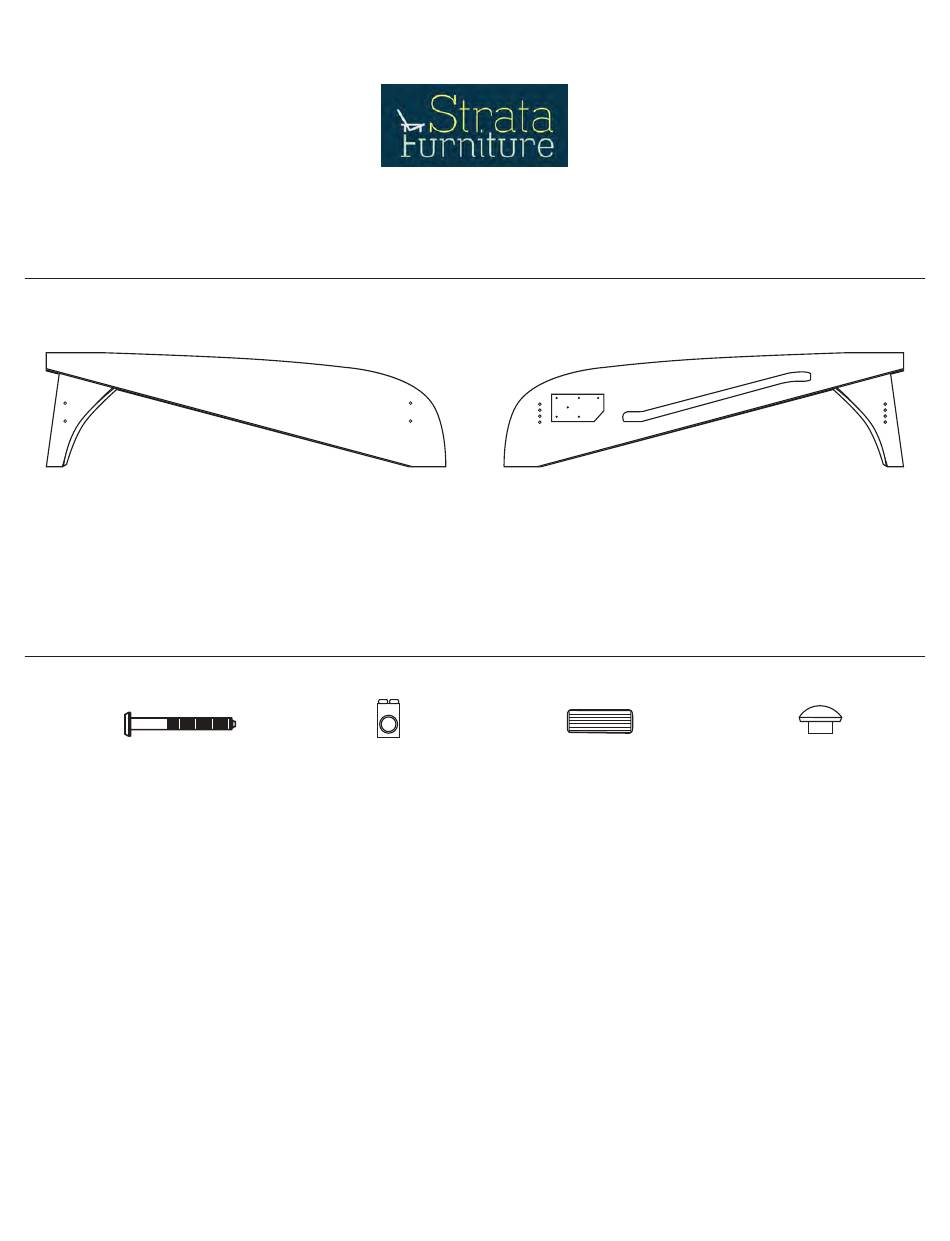

- Page 1 Dillon Arms Watch our assembly videos at www.stratafurniture.com/videos.html Parts in the Arm Box: Arm - Outside View Arm - Inside View Hardware in this Box: Bolts (60mm) x 8 Barrel Nuts x 8 Wooden Dowels x 8 Wood Buttons x 8...
- Page 2 Thank you for purchasing one of our products! We hope the instructions below make the process go smoothly. We strive to have high quality products and perform numerous quality control steps to ensure all the hardware is provided and no issues occur during assembly. In the rare case something is missing, please contact us directly during business hours at (763) 786-3784 or after hours at (763) 592-9093.
- Page 3 kStrata turn1ture Coach Frame Assembly Instructions Watch our assembly videos www.stratafurniture.com/videos Attach the Arms* to the Stretchers using separate hardware received Fit the Wooden Dowels into the two middle in arm box. holes on each end of the stretchers. (From Arm Box Hardware) Be patient, it can be tricky to start th e bolts in the nuts - a screwdiver will help you line up the Barrel Nut with th e Bolt.
- Page 4 Use the longer rails for the back deck Put a 30mm bolt through the counter-sunk holes at the end of each slat and then into the pre-drilled holes on the back deck support boards. Repeat this for all of the slats and tighten all bolts securely.
- Page 5 Please use shorter rails for the seat deck Put a 30mm bolt through the counter-sunk holes at the end of each slat and then into the pre-drilled holes on the seat deck support boards. Repeat this for all of the slats and tighten all bolts securely.
- Page 6 When connecting the decks, either rotate the foot on each side of seat deck 180 degrees or rotate the foot perpendicular to the seat deck.
- Page 7 Critical that the bolt is inserted on correct side of foot Please notice correct side of foot to attach foot connector board to foot. Correct...
- Page 8 kStrata turn1ture Coach Frame Assembly Instructions Watch our videos at www.stratafurniture.com/videos Tighten all eight Bolts. Fit the Strap to the Back Deck. Only needed for operation on frames utilizing heavy mattresses. Connect the Advance Arms to the Arms. Fit the Wood Buttons to the Arms and Back Deck Finally, when the frame is fully assembled, make sure all the bolts are secure.
- Page 9 Please see operating videos at www.stratafurniture.com Frame in bed After pushing up the position mattress, lift the seat deck into a vertical position. Push the foot connector all the way in so that the foot connector rests on the side end caps and locks the feet in place.
