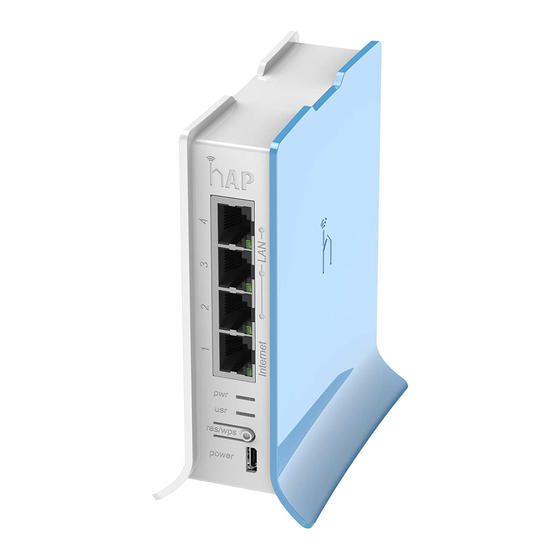

MikroTik RB941-2nD-TC Quick Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v6.49.1 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.
This Quick Guide covers models: RB941-2nD-TC (hAP lite TC), RBmAPL-2nD (mAP lite), RB941-2nD (hAP lite), RB931-2nD (hAP mini).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
This Device accepts the input of a 5V USB power adapter, which is provided in the original packaging of this device.
First steps:
Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address;
Connect the device to the included power adapter;
Connect your computer to the wireless network;
Open https://192.168.88.1
User name: admin and there is no password by default;
Click the "Check for updates" button on the right side and update your RouterOS software to the latest version. The device must have an active Internet
connection;
The device will reboot;
Connect again and choose your country on the left side of the screen, to apply country regulation settings;
Set up your wireless network password, the password must be at least eight symbols;
Set up your router password in the bottom field to the right and repeat it, it will be used to log in next time.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v6.49.1 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това бързо ръководство обхваща модели: RB941-2nD-TC (hAP lite TC), RBmAPL-2nD (mAP lite), RB941-2nD (hAP lite), RB931-2nD (hAP mini).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант
Това устройство приема вход на 5V USB адаптер за захранване, който се предлага в оригиналната опаковка на това устройство.
Първи стъпки:
Уверете се, че вашият доставчик на интернет услуги позволява промяна на хардуера и ще издаде автоматичен IP адрес;
Свържете устройството към включения захранващ адаптер;
Свържете компютъра си с безжичната мрежа;
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
in your web browser to start the configuration;
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mikrotik.com/products
at https://mt.lv/help
https://mt.lv/um-bg за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
https://mikrotik.com/consultants
https://mt.lv/help-bg
