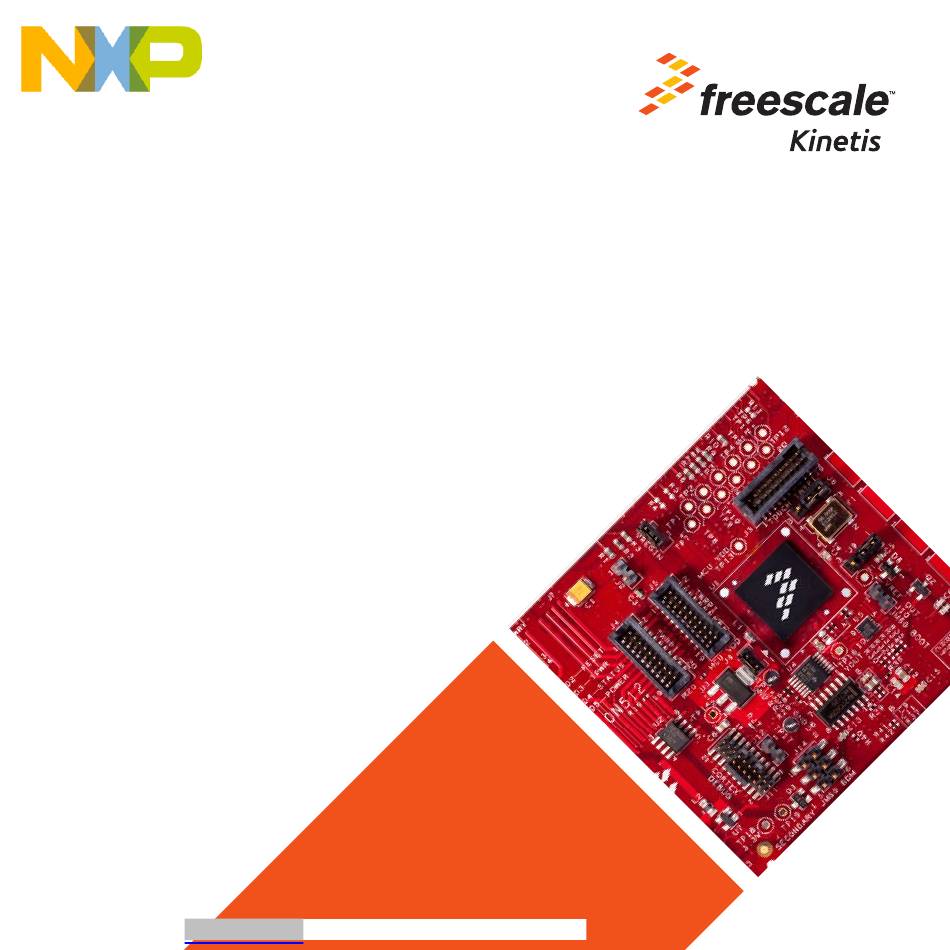

- Page 1 Kinetis K40 MCUs Quick Start Guide Low-power MCU with USB and segment LCD Tower System Development Board Platform Arrow.com. Downloaded from...
- Page 2 Quick Start Guide Get to Know the TWR-K40X256 Primary Connector Infra-Red Touch/SLCD TWRPI Socket General Purpose Tower Plug-In (TWRPI) Socket LED/Touch Buttons SW5 (Reset) E1–E4 Power/OSJTAG MK40X256 Mini-B USB VMD100 Connector Microcontroller MMA7660 Secondary Accelerometer Connector Figure 1: Front Side of TWR-K40X256 Board Not Including TWRPI TWR-K40X256 The TWR-K40X256 controller board is part of the Freescale Tower System, a development board platform that enables rapid...
-
Page 3: Configure The Hardware
Quick Start Guide Step-by-Step Installation Instructions In this Quick Start Guide, you will learn how to set up the TWR-K40X256 board and run the default demonstration. Install the Software Tilt the and Tools Board Install the P&E Micro Kinetis Tower Toolkit Tilt the board side to side to see the LEDs to install the OSJTAG and USB-to-Serial on E1–E4 light up as it is tilted. -
Page 4: Jumper Options
Quick Start Guide Jumper Options The following is a list of all the jumper options. The default installed jumper settings are shown in the shaded boxes. Jumper Option Setting Description Connect on-board 3.3 V supply to MCU MCU Power Connection Isolate MCU from power (connect an ammeter to measure current) Connect VBAT to on-board 3.3 V supply VBAT Power... -
Page 5: Get Started
Get Started Download installation software and documentation under “Jump Start Your Design” at freescale.com/TWR-K40X256. Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. To learn more about the TWR-K40X256 and other Freescale Kinetis microcontroller products, visit freescale.com/TWR-K40X256, freescale.com/Kinetis...
