How to install the laminate
(1) Take out the flange and the laminate stoker shaft from the accessory box.
(The laminate stocker shaft is longer than the media stocker shaft.)
(2) Set the flange position to match to the laminate width.
The prepared laminate is PET16-1110R4A.
Set the flange position to 110 mm width.

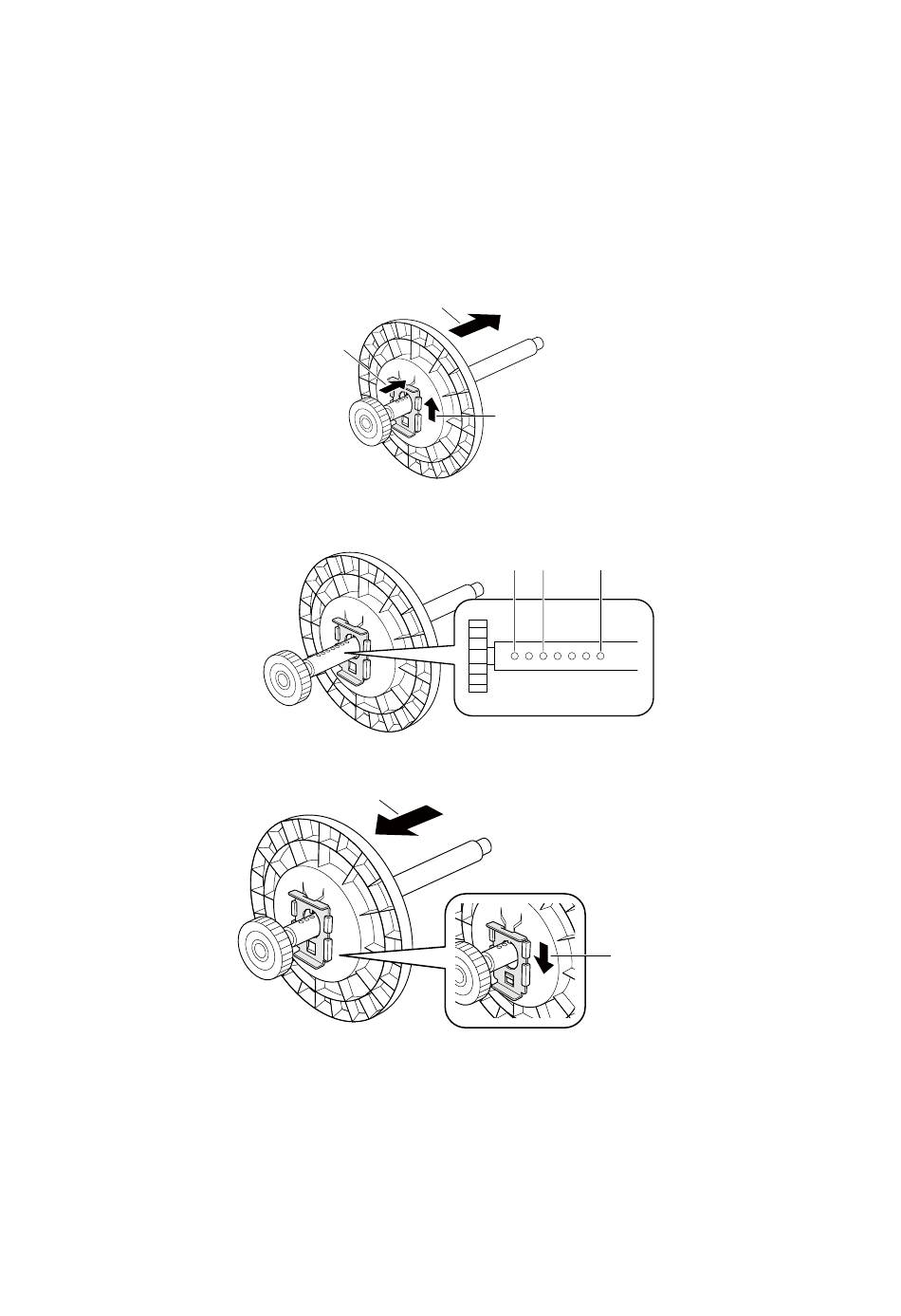

(3) Unlock the flange lock plate, and then slide the left flange to fit to laminate width.
(4) Set the left flange to the 110 mm width position.
(5) Lock in the shaft groove and set the flange.
LCX603-UM-651-9370
Step 3:
Slide the flange to
fit to the media width.
Step 1:
Press the "PUSH"
part of the flange.
Step 1
Step 2:
Slide up the flange lock plate.
Laminate width (mm)
• • • •
110 90 50
2-83
2
Step 2
