1 Preparation before the setup

1.1 Confirming the Installing Space for the LCX603

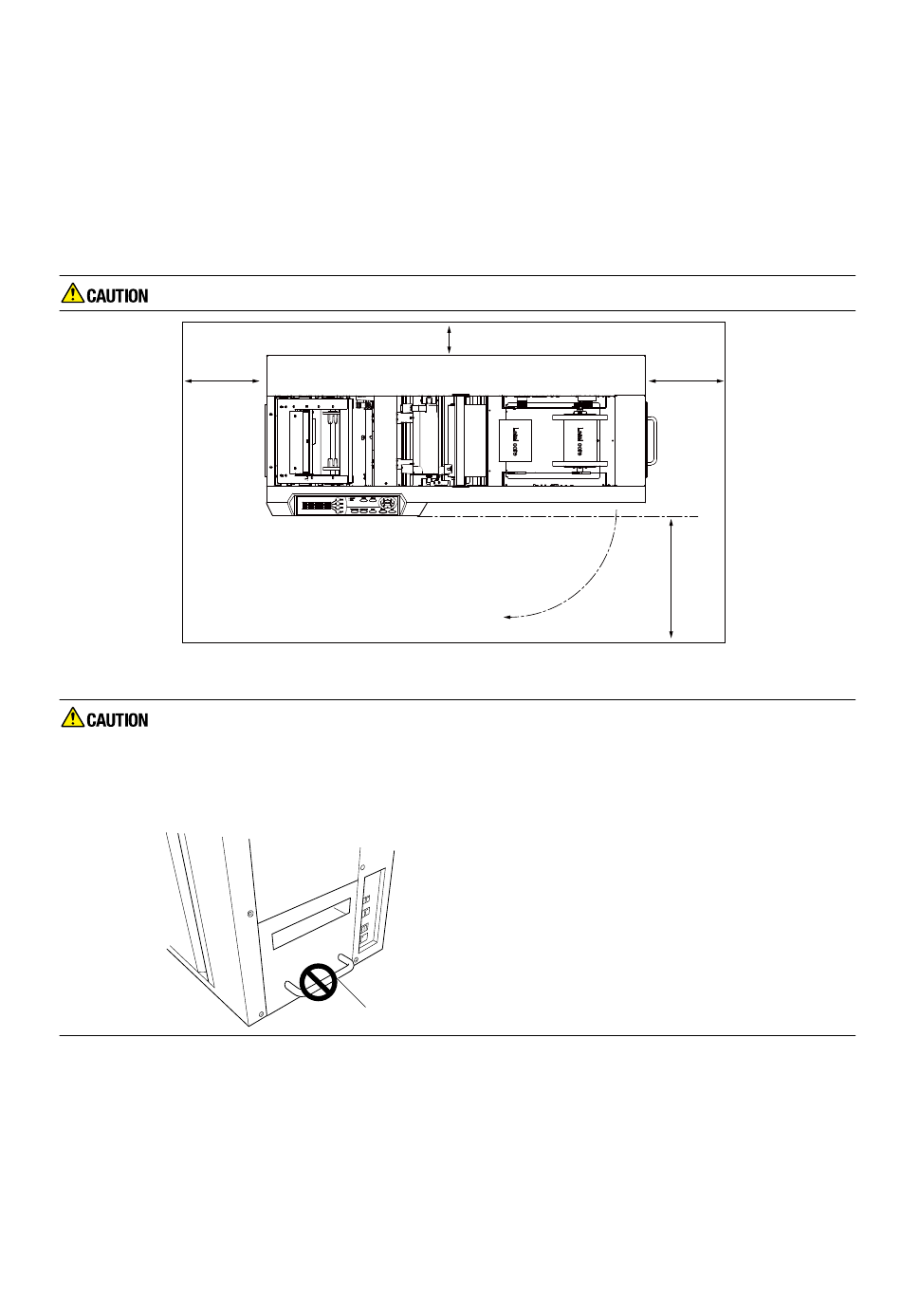

Confirm the installation space as shown in the picture below before installing the LCX603.
Please discuss with your end user before installing the LCX603 to your customers's site.
When installing the LCX603 on a table, please use a durable, solid table with a surface larger than 1000
mm × 400 mm.
Leave sufficient space for operations in front of and behind the printer.
500mm
Notes for installation of the LCX603
When setting up on a desk or work table, make sure there are two people to carry out the
task.
Do not use the handle in the media stocker section when lift up the LCX603, otherwise the
LCX603 will break.
LCX603-UM-651-9370
50mm
Handle
1-1
1 Preparation before the setup
500mm
1000mm
