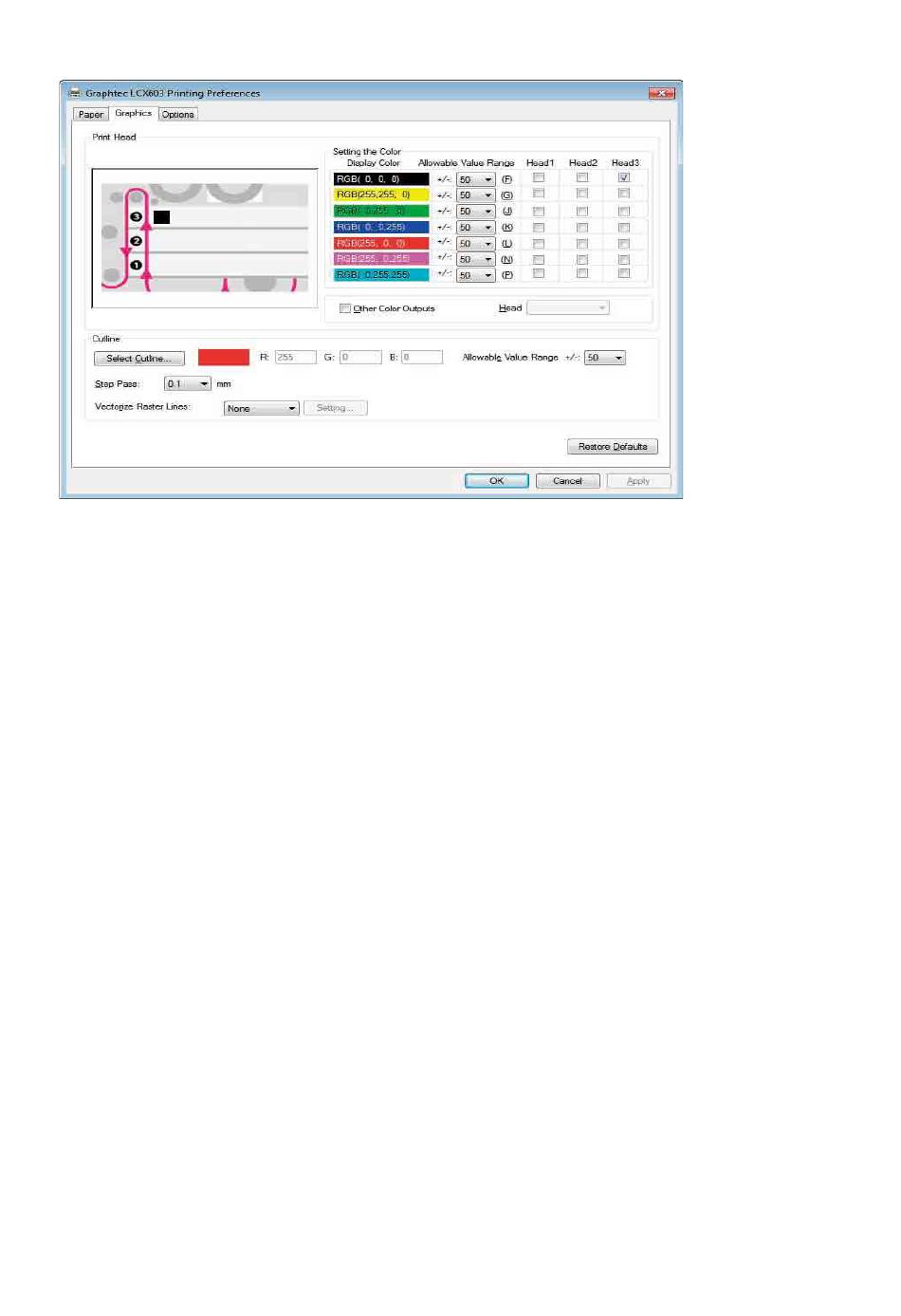

[Graphics] Tab
Print Head ........................ Displays the head number output settings of the label data color made by the
Setting the Color .............. Selects the output color of Head 1, Head 2, and Head 3. The available colors
Other Color Outputs ......... To be selected when using a label color different from the seven display colors.
Select Cutline ................... Specifies the color of the line data, which carries out the label's half-cutting.
LCX603-UM-651-9370
application. The display changes through the color selection set in "Setting the
Color".
The body heads are installed as Head 1, Head 2, and Head 3 from bottom to
top with Head 3 being the basic one.
are seven: black, red, blue, green, magenta, cyan, and yellow. The color with a
check next to it is selected.
The color specified here is the application color. The actual printing color is the
color of the set ink ribbon.
Selection among Heads 1 - 3 can be made, but even if Head 3 is not selected, it
is used in the cut mark printing, so please set black ribbon in Head 3.
The cutline recognized by the driver is the color specified here and is only the
thinnest line that can be set in the application.
The exact wording differs according to the application, but please use the
thinnest line thickness such as zero and make the cutline as a hairline.
When thin lines with the same colors as those set for the cutlines are present on
the data, depending on the application being used, said lines may be perceived
as being cutlines and cut as a result. In such instances, either widen the width
of the lines that were excessively cut, or change the data-based color of the
lines set for the cutlines, followed by changing the color under "Select Cutline"
in the driver to match the actual cutlines.
