Setup; How To Take Out The Lcx603 From The Packing Box - GRAPHTEC LABELROBO LCX603 Setup Manual

2 Setup

2.1 How to take out the LCX603 from the Packing Box

The LCX603 is packed by the woody box as shown in the picture below.
Follow the procedure to take out the LCX603 from the packing box.
When unpacking the LCX603 from woody box, make sure there are two people to carry out
the task.
How to take out the LCX603 from the packing box

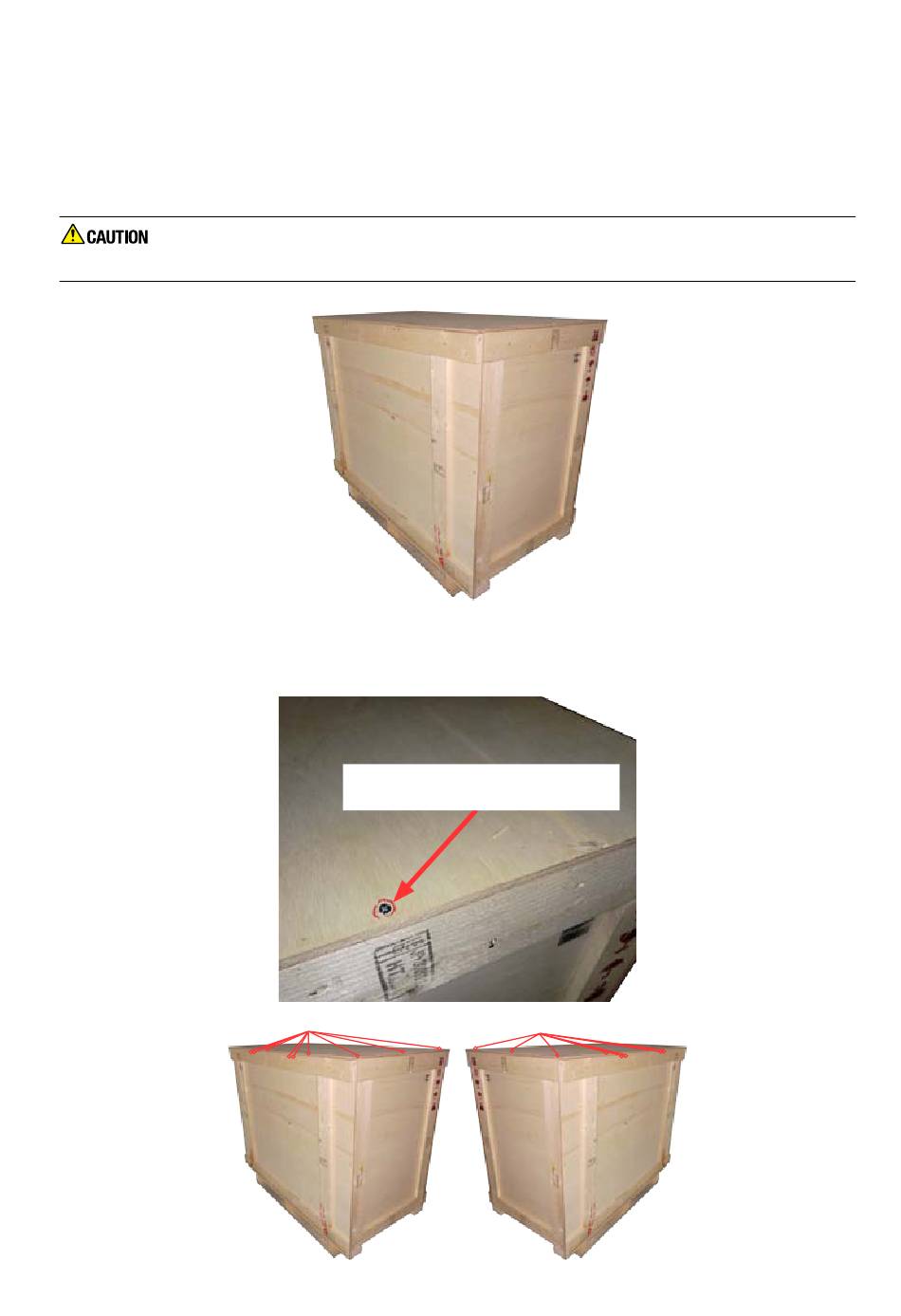

(1) Remove the self tapping screws which are marking by the red circle holding the top panel.
LCX603-UM-651-9370
Remove the self tapping screws
which are marking by the red circle.
Self tapping screw Self tapping screw
