GRAPHTEC LABELROBO LCX603 Setup Manual page 41

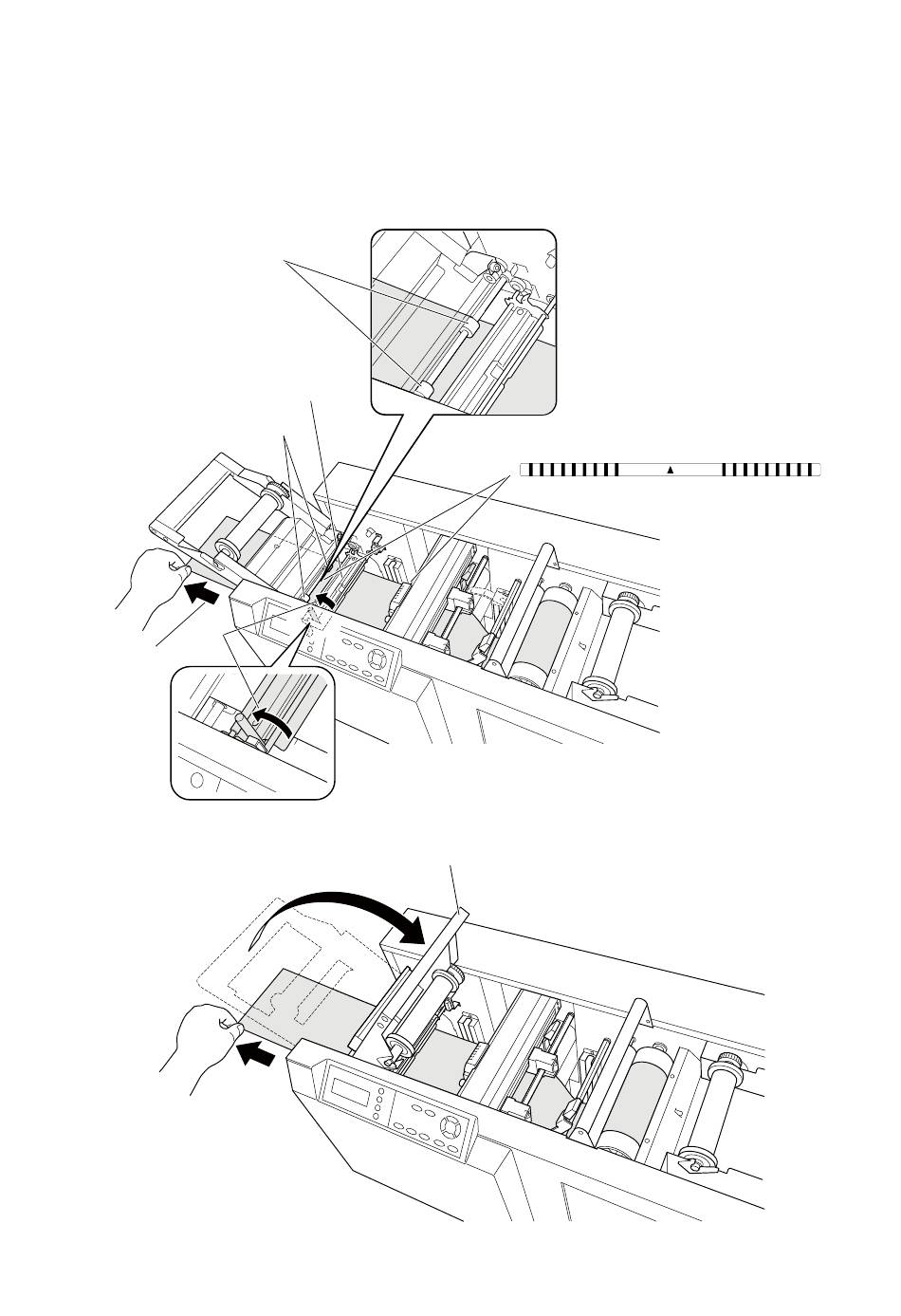

(17) Pull the media from the exit of cross cutter side (Step 1), and align the media and the position scale
while the media is pulling (Step 2).
While it is straight, adjust the exit pinch rollers position (Step 3).
The exit pinch rollers should be positioned to both edges of media.
While it is straight, close the separator suppression unit (Step 4).
Step 3
The exit pinch rollers should be
positioned to both edges of media.
Separator suppression unit
Exit pinch roller
Step 4
Step1
(18) Close the separator arm while pulling the media.
LCX603-UM-651-9370
Step 2
Position scale
Separator arm
2-33
2 Setup
