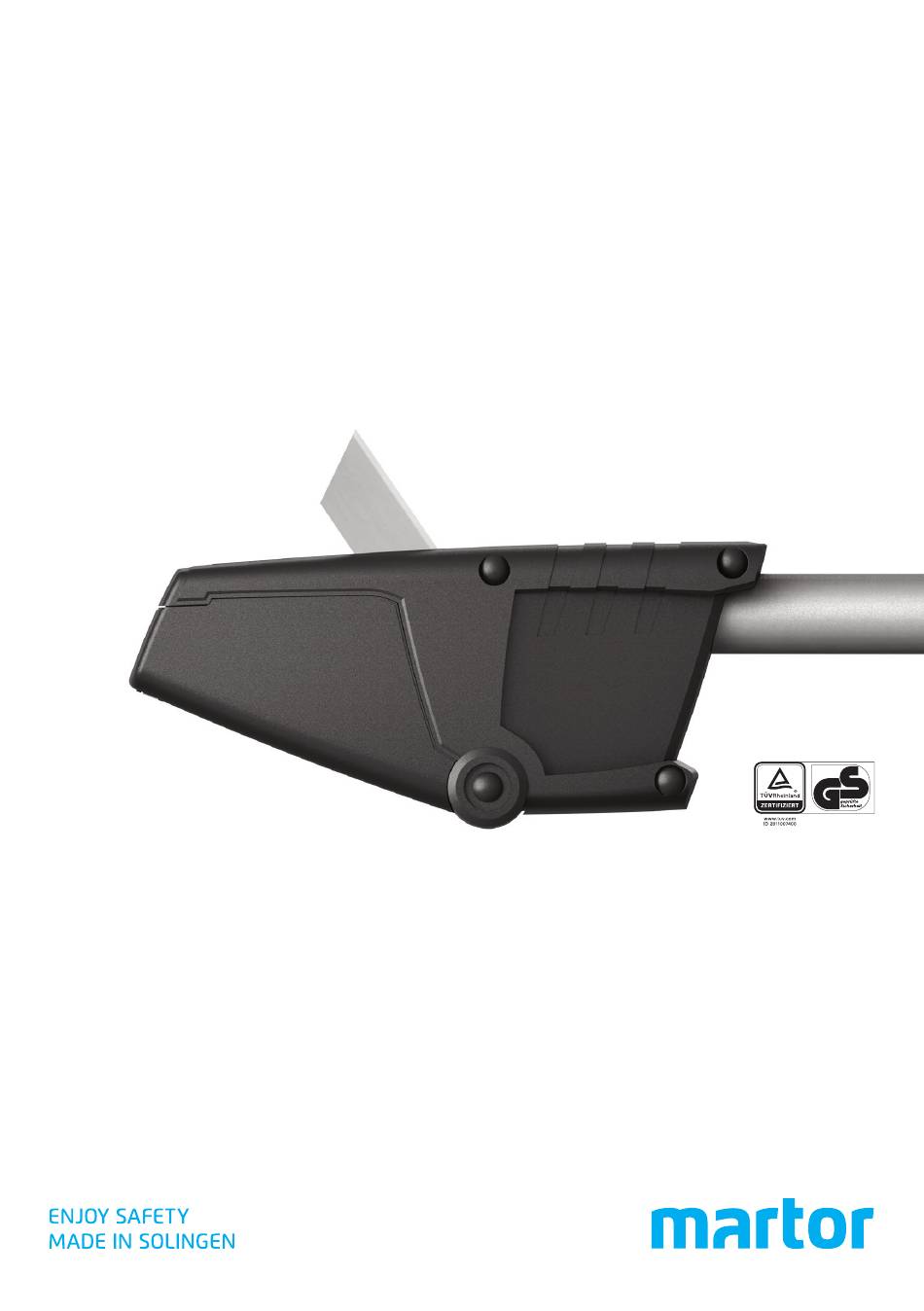

- Page 1 SECUNORM 590 INSTRUCTIONS | ENGLISH...
- Page 3 As a leading provider of safe cutting solutions, we are committed to the quality of the SECUNORM 590. However, if you do have any com- plaints, do not hesitate to contact us. We would be happy to address...
-
Page 4: Table Of Contents
CONTENTS Scope of delivery Product description Handling Maintenance and assembly Blade Change Dirt control device End of the handle Wall mount bracket Replacement screws Cleaning and care Security advise Replacement parts for re-ordering Contact and service... -
Page 5: Scope Of Delivery
SCOPE OF DELIVERY SECUNORM 590 NO. 590001 Ready for use WALL MOUNT BRACKET Set DIRT CONTROL DEVICE PROTECTIVE CAP + REPLACEMENT SCREWS WITH RETAINERS 10 X STYROPOR BLADE HEXALOBULAR SOCKET 2 x 10... -
Page 6: Product Description

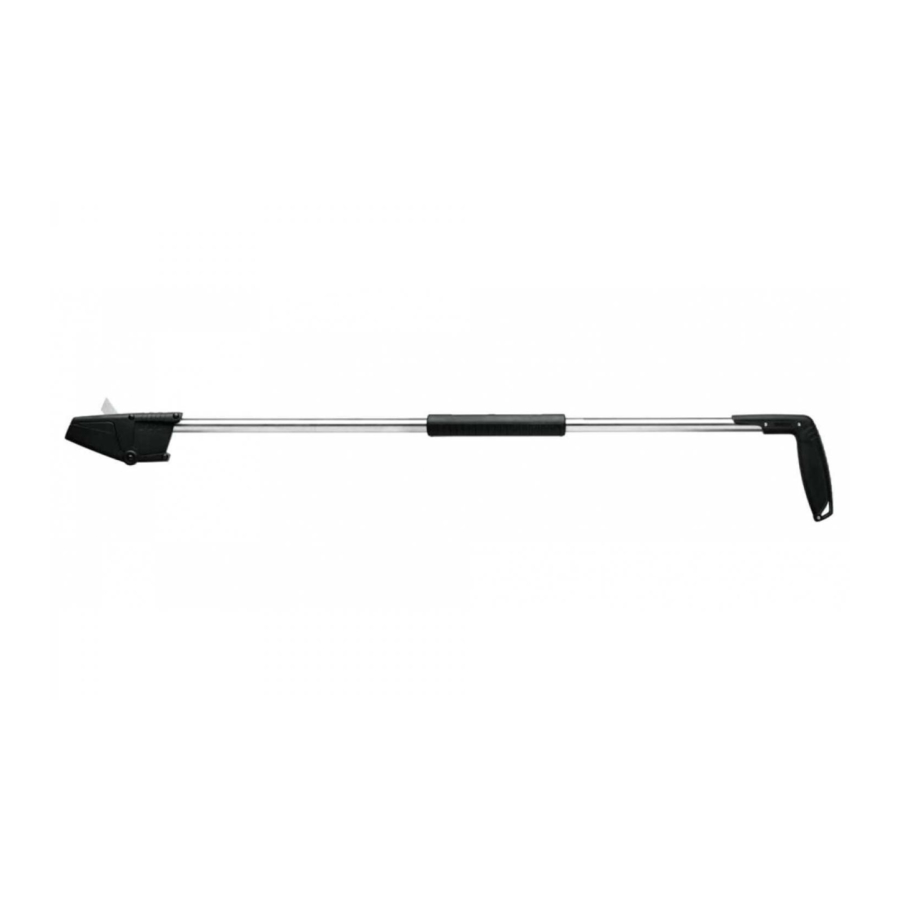

PRODUCT DESCRIPTION SECUNORM 590 Safety knife for right and left handers. Ideal for the deliberate opening of big bags. Blade engaging element Metal tube Cutting head Dirt control device Secured screw Secured Protective cap screw Blade holder Blade Protective cap... - Page 7 End of the handle Halves of the handle Secured screw Eyelet PRODUCT DETAILS Order No. (Set) NO. 590001.02 Packaging unit 1 in single unit box Knife size (L x W x H) 1000 x 144 x 43 mm Main material Glass fibre reinforced plastic Weight...
-
Page 8: Handling
HANDLING In order to use the SECUNORM 590, take it in both hands. Use one hand to operate the blade engaging element in the centre of the handle and use the other hand to hold the end of the handle tightly. - Page 9 ABB. 7 ... and cut towards yourself. ! You need not be underneath In order to ensure that the blade the cutting material during the safely retracts back into the cutting process or afterwards. handle after the cutting, move the blade engaging element back to the initial position ( automatic blade retraction ) .
-
Page 10: Maintenance And Assembly
BLADE CHANGE MAINTENANCE AND ASSEMBLY For the following steps, it is best to place the SECUNORM 590 on a flat surface as shown above. In order to access the screw on Once the protective cap has Then swivel the cover in a... - Page 11 You need: blade can no longer be seen ( b ) . Now push the centre of the In order to insert a new blade, blade holder ( within the cross- use the right index fi nger to The cutting edge must point in hatched area ) , ideally with the push on the centre of the blade the direction of a blue dirt con-...
-
Page 12: Dirt Control Device
DIRT CONTROL DEVICE MAINTENANCE AND ASSEMBLY For the following steps, it is best to place the SECUNORM 590 on a fl at surface as shown above. Before cleaning or replacing the Now place the knife upright so Then take hold of the grooves... - Page 13 You need: Then unfold the dirt control device When re-inserting the dirt control The dirt control device is correct- ( a ) , clean it and put it back device, hold the grooves again ly inserted when it completely together ( b ) – or use a new one. tightly with the thumb and the in- fi lls the gap.
-
Page 14: End Of The Handle
MAINTENANCE AND ASSEMBLY If necessary, you can rotate the end of the handle by 180 degrees. It is best to place the SECUNORM 590 on a flat surface as shown above to do this. Now remove first the lower ( a ) First unscrew all three screws. - Page 15 You need: Now rotate the knife ( a ) so that ... and then above the metal tube. you can screw the screws in tightly again ( b ) . Then you can continue working with a diff erent handle position.
-
Page 16: Wall Mount Bracket
... or horizontally. bracket is the ideal place to hang hanging the knife vertically ... your SECUNORM 590 in a man- ner which is safe for the work- place. Attaching the bracket using screws Each wall mount bracket is at- Before screwing in the screws, it Use a suitable screwdriver. - Page 17 DURABILITY OF THE WALL MOUNT BRACKET The wall mount bracket is not produced by MARTOR. According to the manufacturer it is very resistant to weathering. It is resistant to a limited degree to fats/oils, acids/lyes and solvents. There are no concerns...
-
Page 18: Replacement Screws
( for changing the blade and changing the dirt control device ) in case you have to replace this. It is best to place the SECUNORM 590 on a flat surface as shown above to do this. - Page 19 You need: First remove the blade ( see the If the old screw is still there, pull Insert the replacement screw chapter on changing the blade, the retainer off by hand and re- into the screw channel in the 2 to 5 ) . move the screw.
-
Page 20: Cleaning And Care
! Do not use any aggressive acids or lyes. ! Do not use a high-pressure cleaner. RESISTANCE OF THE SECUNORM 590 The plastics built into the cutting tool are resistant to oils, lubricants and gasoline, have limited resistance to acetone and alcohols and have low to no resistance to aggressive acids and lyes. -
Page 21: Security Advise
SECURITY ADVICE To ensure that you use your new MARTOR knife safely and most ef- fectively, please read and note the following user-instructions. Please keep the written guide in a safe place so that you can access it at any time. -
Page 22: Replacement Parts For Re-Ordering
That's why you can order a new cutting head, a new blade holder or a new end of the handle from us separately and replace it yourself. You don't have to buy a brand new knife - your SECUNORM 590 will work like new again. - Page 23 10 X stainless steel 10 X Optional blade NO. 7940.60 0.50 mm 10 X INSTRUCTIONS SECUNORM 590 The manual is available in Alternatively, the PDF instruc- SECUNORM 590 ANLEITUNG | DEUTSCH German, English, French and tions are available to download...
-
Page 24: Contact And Service
Technical Data Sheet. Still have questions? You can reach our service department on +49 212 25805-0 MARTOR KG | Heider Hof 60 | 42653 Solingen | Germany T +49 212 25805-0 | F +49 212 25805-55 | info@martor.de | www.martor.com...
