USE LIMITS

AZIMUT can automate sectional doors max 2,25 m high, balanced doors max 2,25 m and counterweight balanced door max 2,45 m.

Take into consideration in order to install properly.

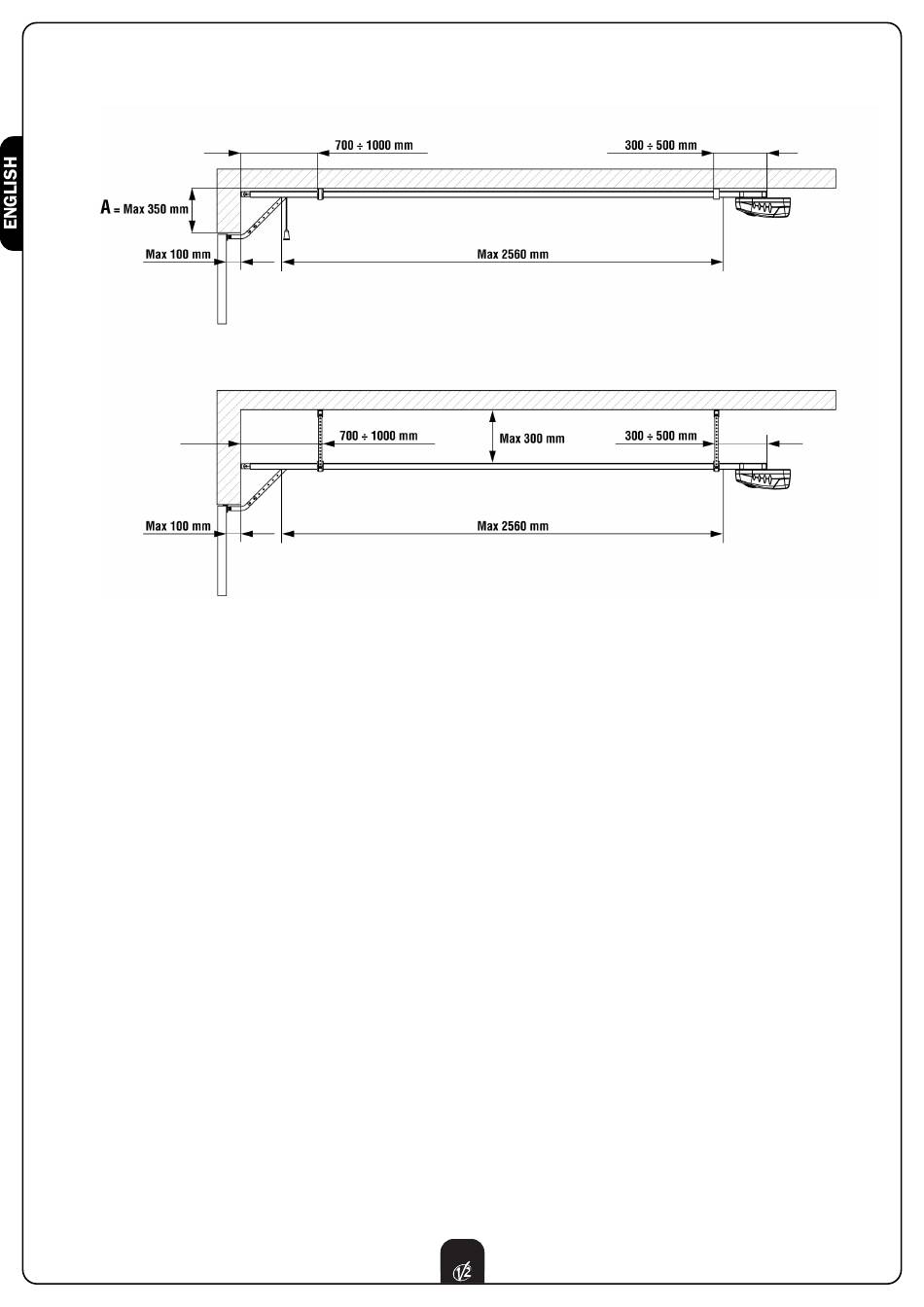

CAUTION: It measurement A shown in the figure above is greater than 350 mm accessory kit p/n 163203 must be installed. Respect

the limits of use called for in the figure below.
