Summary of Contents for Billion BiGuard 30
- Page 1 BiGuard 30 iBusiness Security Gateway SMB Quick Start Guide...
-
Page 3: Package Contents
Introduction Welcome to Billion BiGuard 30 Router. BiGuard 30 is a rack-mountable device integrated with cutting-edge technology including Load Balancing, VPN and Firewall for central sites to establish office network and connect with branch offices, remote dial up and tele-workers. It is designed for business requiring application-based network solutions at low-capital investment and is perfectly catering to the needs of small and medium sized business. -

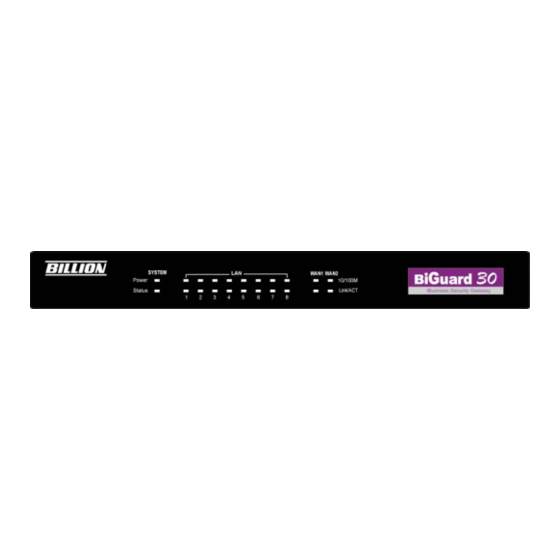

Page 4: The Front Leds
Quick Start Guide The Front LEDs A steady light indicates connection to power source Power A blinking light indicates device is writing flash Status Light when connect to an Ethernet device. 10/100M : 1 – 8 Link/ACT : transmitted/received. Light when connect to an Ethernet device. 10/100M : WAN1 Link/ACT :... -
Page 5: The Rear Ports
WAN1 — (RJ-45 connector) DC12V BiGuard 30 iBusiness Security Gateway SMB After the device is powered on, press it to reset the device or restore to factory default settings. 0-3 seconds: The Status LED will light 6 seconds above: restore to factory default settings (this is used when you cannot login to the router. -
Page 6: Connecting Your Router
Quick Start Guide Connecting Your Router 1. Connect the Router to a LAN (Local Area Network) & WAN (Connect to Cable or ADSL modem). 2. Power on the device. 3. Make sure the Power LED is steadily and that the WAN1/ WAN2 and relevant LAN LED is light. -
Page 7: Configuring Pc In Windows Xp
Properties. 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. BiGuard 30 iBusiness Security Gateway SMB... -
Page 8: Configuring Pc In Windows 2000
Quick Start Guide Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. -
Page 9: Configuring Pc In Windows 98/Me
Network Interface Card (NIC) in your PC. 3. Select the Obtain an IP address automatically radio button. 4. Then select the DNS Configuration tab. 5. Select the Disable DNS radio button and click OK to finish the configuration. BiGuard 30 iBusiness Security Gateway SMB... - Page 10 Quick Start Guide Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.
- Page 11 Connection fails, when you see “Request timed out” in the command prompt window. You may need to check your set up. BiGuard 30 iBusiness Security Gateway SMB then...
- Page 12 Quick Start Guide Connecting to the Router Open the web browser and type http://192.168.1.254 browser’s address box. This number is the default IP address for this router. Press Enter. A user name and password window will appear. The default User Name and Password are “admin”...
-
Page 13: Product Support And Contact Information
BiGuard 30 iBusiness Security Gateway SMB Product Support and Contact Information Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product.
