2.2 Connecting the EtherNet/IP network

Connecting the EtherNet/IP network
The I/O devices are based on the EtherNet/IP communication protocol but does
not require any additional RobotWare options or hardware options to be connected
to the robot controller. In this standard configuration the devices should be
connected to the private network (I/O or LAN + ETHERNET SWITCH) to gain the
advantages with plug-n-produce.
When using the RobotWare options 3024-1 EtherNet/IP Scanner or 3024-2
EtherNet/IP Adapter more configuration possibilities are available. For more
information see Application manual - EtherNet/IP Scanner/Adapter.
A factory wide I/O network should be connected to the Ethernet port WAN on the
controller.

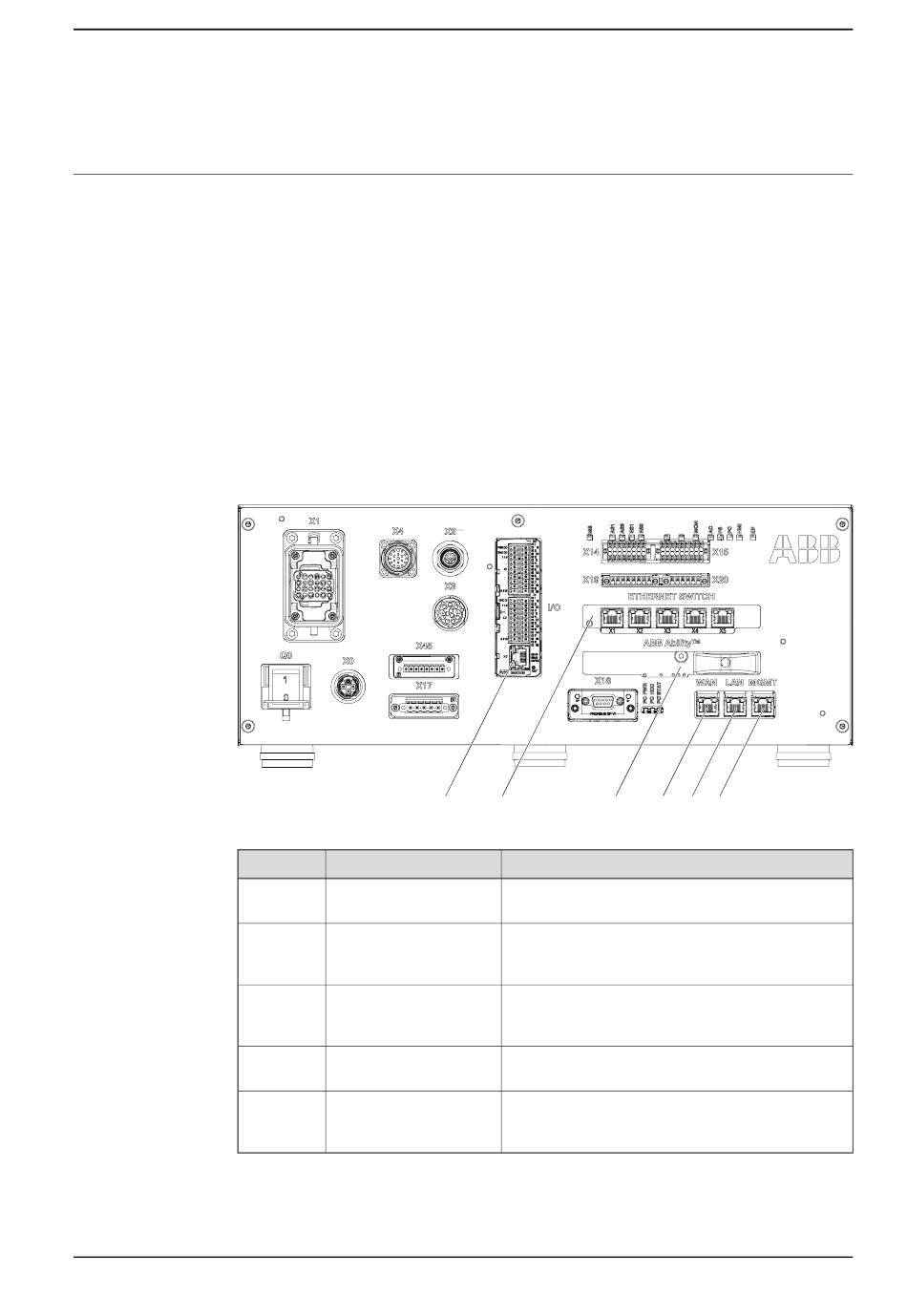

The following figure illustrates where the Ethernet port connectors are placed on
the computer.
xx1800003138
1
2
3
4
5
Application manual - Discrete I/O
3HAC070208-001 Revision: C
1 2
Label
I/O
LAN + ETHERNET
SWITCH
ABB Ability™
WAN
MGMT (Management)
© Copyright 20192020 ABB. All rights reserved.
2 Hardware overview
2.2 Connecting the EtherNet/IP network
3 4
Description
Port to the robot's private network. Intended for
connecting I/O units.
Port to the robot's private network. Intended for
connecting network based process equipment to
the controller.
This port only exists if the wired variant of the Con-
nected Services Gateway is used. Intended for
connecting to the robot's Ability™ network.
WAN port that can be used to host a public industri-
al network.
Port to the robot's private network. Intended to be
used by service personnel to connect to the com-
puter, that is, not for other connections.
