Removing base devices
1
Application manual - Discrete I/O
3HAC070208-001 Revision: C

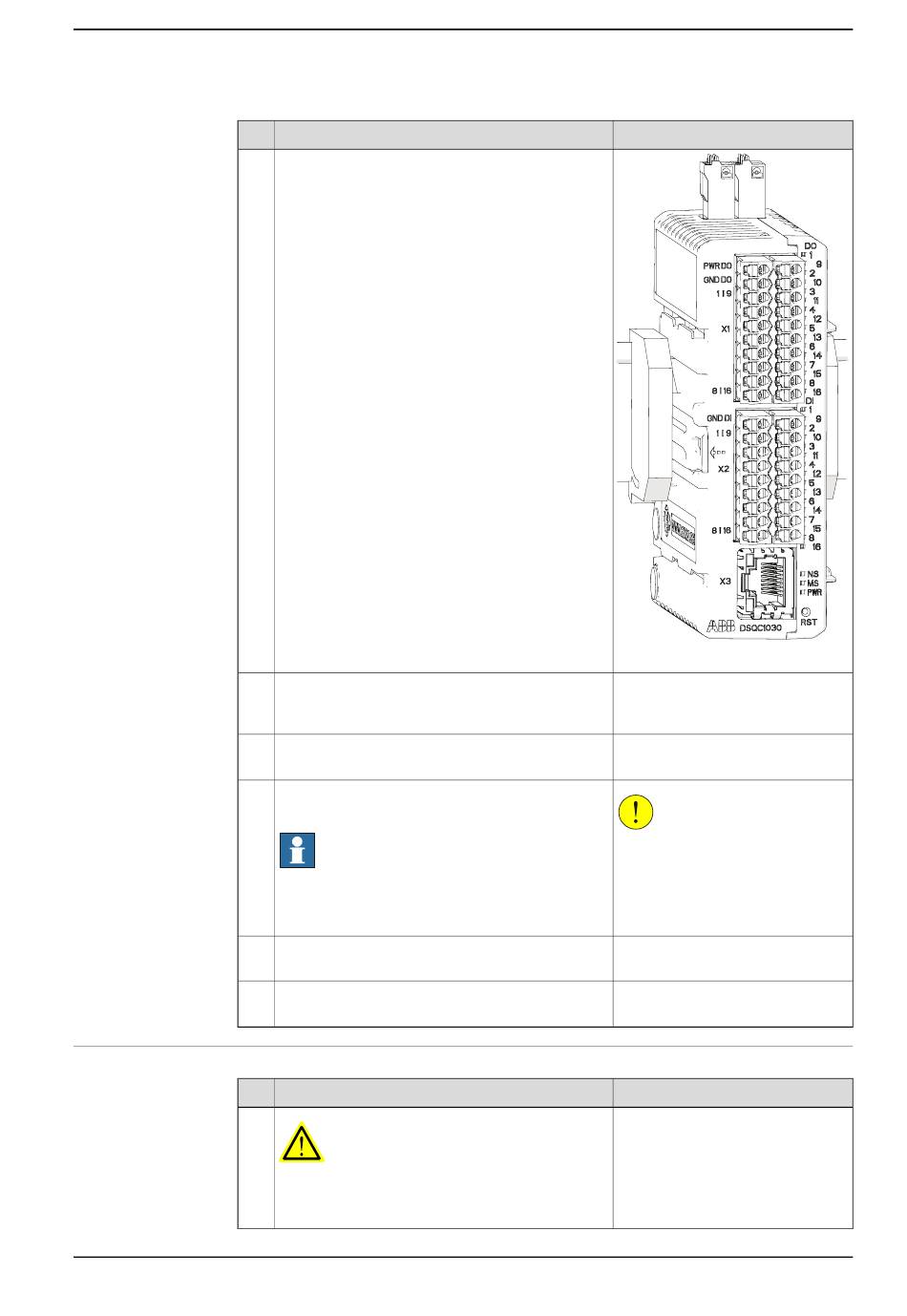

Action
Fit the device by snapping it onto the mounting
rail.
Connect the Ethernet cable from the robot control-
ler, or the EtherNet/IP scanner, to any of the con-
nectors X3 or X5.
Connect the logic power supply to connector X4.
Connect process power supply and GND to the
input and output connectors X1 and X2.
Note
The process power supply also powers the optical
interface to the add-ons.
Connect wires to the inputs and outputs as re-
quired.
Configure the device, see
devices on page 42.
Action
DANGER
Before commencing any work inside the cabinet
make sure that the main power has been switched
off.
© Copyright 20192020 ABB. All rights reserved.
Note
xx1700000275
For information about the pinout
see
The process power supply must be
supplied separately. Connecting
the process power supply through
the logical power supply connector
may damage the device.
Using Discrete I/O
Note
2 Hardware overview
2.1.2 Installing base devices
Continued
Connectors on page 27.
CAUTION
Continues on next page
