2 Hardware overview
2.1.2 Installing base devices
Continued
2
3
4
Replacing base devices
1
2
Continues on next page
18

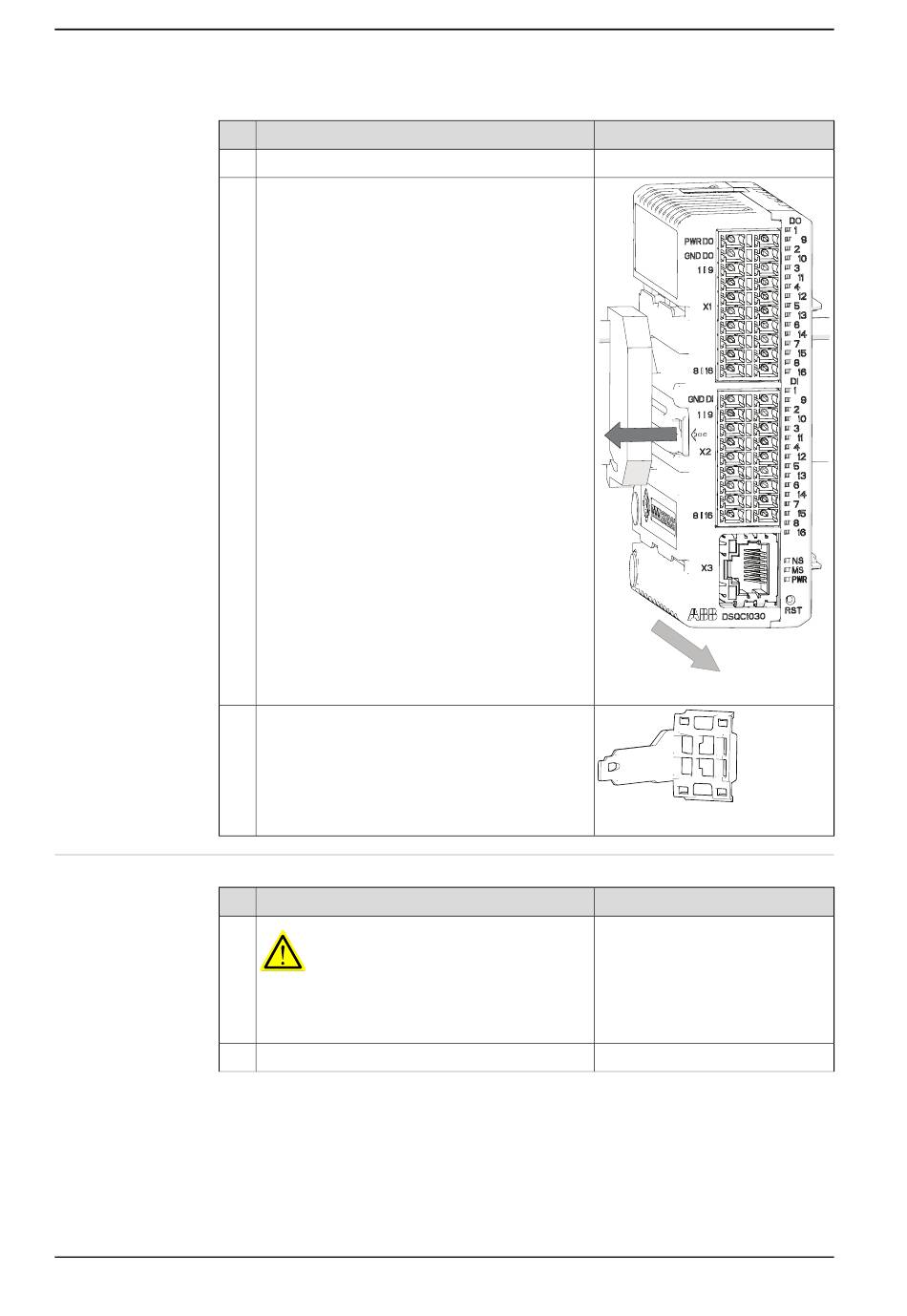

Action
Disconnect all connectors.
Press the DIN bracket gently to the left and pull
the device straight out.
Snap off the DIN bracket and refit it to the re-
moved device.
Action
DANGER
Before commencing any work inside the cabinet
make sure that the main power has been switched
off.
Disconnect all connectors.
© Copyright 20192020 ABB. All rights reserved.
Note
xx1700000276
xx1600002039
Note
Application manual - Discrete I/O
3HAC070208-001 Revision: C
