2 Hardware overview

2.1 Installing the I/O devices

2.1.1 Introduction

Local I/O devices

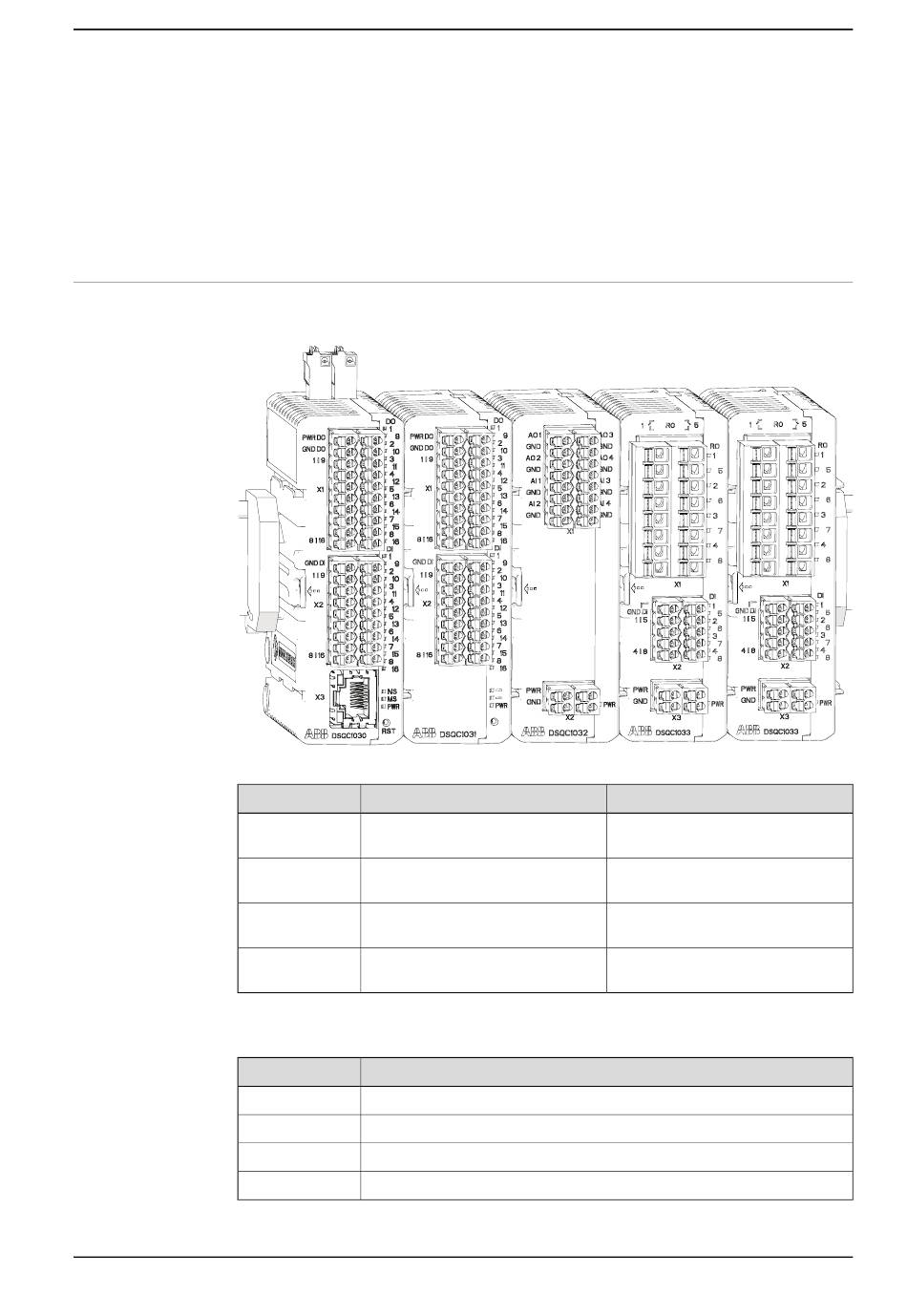

The illustration below shows the base device and connected add-on devices.
xx1600002032
Spare part no.
3HAC058663-001
3HAC058664-001
3HAC058665-001
3HAC058666-001
The main dimensions for the I/O devices are 75x36x101 (Length x Width x Height).
Additional parts
Spare part no.
3HAC060919-001
3HAC060925-001
3HAC060926-001
3HAC062073-001
Application manual - Discrete I/O
3HAC070208-001 Revision: C
Description
Digital base, 16 digital inputs, 16 di-
gital outputs
Digital add-on, 16 digital inputs, 16
digital outputs
Analog add-on, 4 analog inputs, 4
analog outputs
Relay add-on, 8 digital inputs, 8 re-
lay outputs
Description
Connectors digital base/add-on
Connectors analog add-on
Connectors relay add-on
DIN bracket
© Copyright 20192020 ABB. All rights reserved.
2 Hardware overview
2.1.1 Introduction
Type
DSQC1030
DSQC1031
DSQC1032
DSQC1033
