SOMFY THERMOSUNIS WIREFREE Instructions

SOMFY INSTRUCTIONS
THERMOSUNIS WIREFREE RTS
LIGHT & TEMPERATURE SENSOR
Part# 9013708

DESCRIPTION

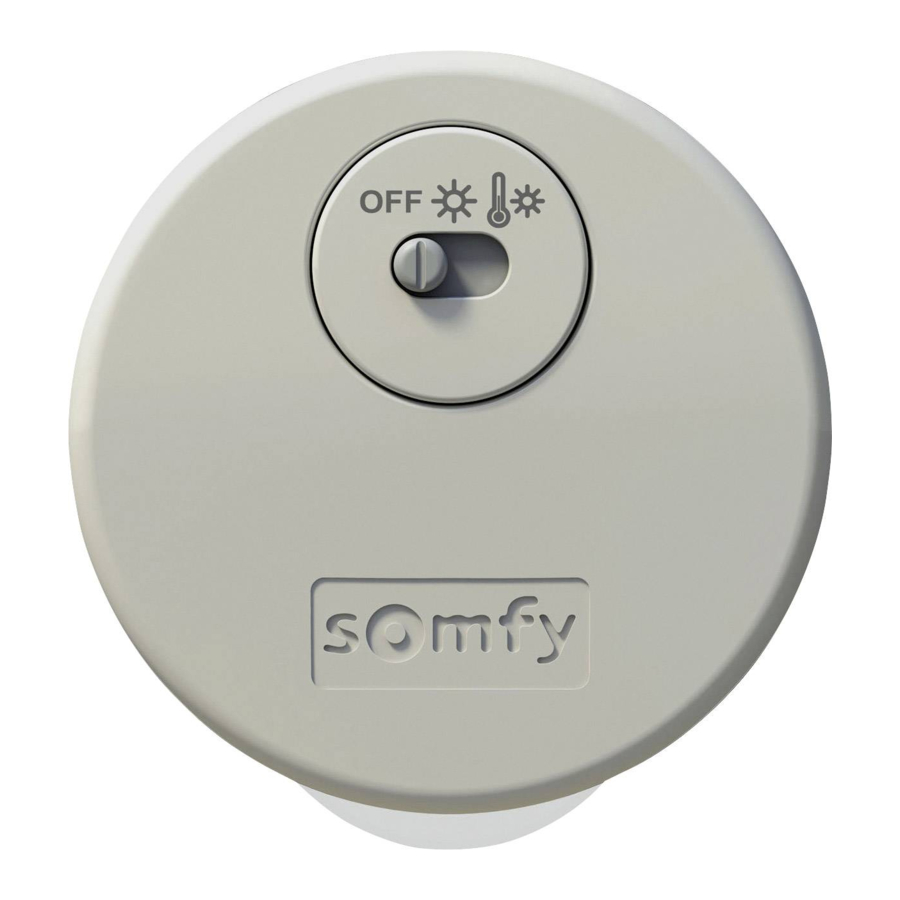

The Thermosunis RTS Light and Temperature Sensor is a wireless transmitter compatible with RTS motorized window coverings.
Window or Sill mounted, the Thermosunis RTS operates motorized window coverings in accordance to room temperature or the amount
of sunlight received. Sensitivity (threshold) settings can be adjusted to accommodate various sunlight intensity and room temperatures
to provide the ultimate in comfort and protection from harmful UV rays.
Commands are transmitted by radio waves at 433.42 MHZ
Power: 3V Lithium battery, CR430
Operating temperature: 0 deg. C/32 deg. F - +60deg. C/140 deg. F
Range: Up to 65ft.
Mount: Window glass/sill
Dimensions: Diameter 2 3/16" /(55.5mm) x Depth 3/4" /(19mm)
Indoor Use Only
PROGRAMMING:
ADDING A THERMOSUNIS WIREFREE™ RTS SENSOR - INITIAL INSTALLATION
NOTE: During initial programming, it is recommended that power is provided only to motorized window covering being programmed.
1. Carefully remove rear cover to expose sensor control setting panel.
2. Set the motorized window covering into Programming Mode
(Refer to the installation instructions of the relevant RTS
receiver or motor for this procedure).
3. Slide the On/Off Selector Switch to the ON or
Sun LED Indicator will illuminate for 5 seconds then extinguish.
4. Using a paper clip, pen or similar device, briefly press the Programming
Button (for 1 second) located on the control setting panel of the
Thermosunis (See Figure 1). The motorized window covering will confirm
the addition of the Thermosunis sensor in their respective manners.
NOTE: Repeat steps 1-3 when multiple motorized window coverings are required to operate
from the Thermosunis sensor.
PROGRAMMING:
DELETING A THERMOSUNIS WIREFREE™ RTS SENSOR FROM MEMORY
1. Using a paper clip, pen or similar device, press and hold the Programming Button
on a previously addressed Thermosunis or Somfy Transmitter. (Telis, DecoFlex, etc.) (See Figure 1). The
motorized window covering will confirm Programming mode their respective manners.
2. Using a paper clip, pen or similar device, briefly press the Programming Button (for 1 second) located
on the control setting panel of the Thermosunis to be deleted (See Figure 1). The motorized window
covering will confirm the deletion of the Thermosunis sensor in their respective manners.
NOTE: Step 1 should not be performed with the Thermosunis intended for deletion.
© Copyright Somfy Systems, Inc. 1/2010
™
www.AV-Outlet.com
position.
www.AV-Outlet.com
C-0010
On/Off Selector Switch
Sun LED
Indicator
Programming
Button
Figure 1
(approximately 3 seconds)
Control
Setting
Panel
Rear Cover
PAGE 1 REV 5
