Projecta IP2000 Instruction Manual page 8

CONNECTING THE AC CABLES TO THE INVERTER
Note: Ensure a licensed Electrician wires the 240V AC mains and output terminals
to and from the inverter. If the inverter is being installed in to a caravan/camper van
ensure the unit & wiring is installed to AS3001.
WIRING AC POWER FROM THE INVERTER
AC output power can be wired directly from the OUTPUT terminals of the inverter
allowing connection to external GPO's in addition to the outputs located on the front
of the IP2000 unit.
1. Ensure the inverter is turned off and disconnected from DC & AC mains power.

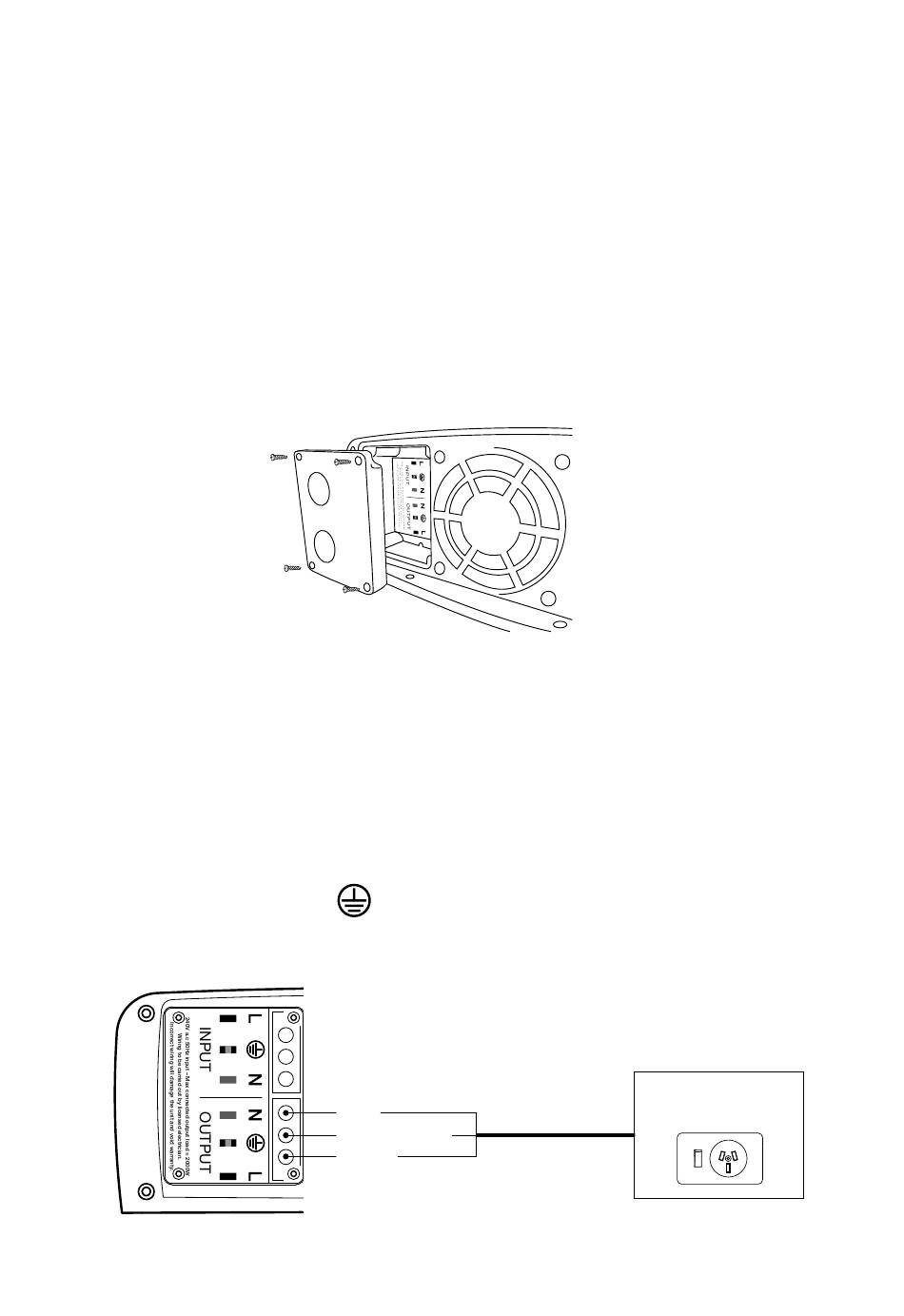

2. To gain access to the OUTPUT terminals remove the cover located at the back of the
unit using a phillips head screw driver as per illustration below.
3. Select suitable size cable gland/conduit fittings (16mm or 20mm) & cable to be wired
to the INPUT terminals. Ensure cable multi strand cable is used as per AS3001.
4. Once the suitable size cable glands/conduit fitting are selected, push through the
appropriate size pre cut holes located on the rear cover & install the fitting.
5. Strip the cable back and feed through the cable glands/conduit fittings, then hard wire
VOLTS
the cables to the OUTPUT terminals. Ensure cable is wired to the OUTPUT terminals as
per the below illustration:
Earth (Green/Yellow) connect to:
Neutral (Blue) connect to: N
Active (Brown) connect to: L
6. Refit rear cover and tighten cable gland/conduit fitting.
8
OFF
ON
TEST
WATTS ECO SAFETY
SWITCH
LOAD%
OFF
ON
TEST
VOLTS WATTS ECO SAFETY
LOAD% SWITCH
Blue
Green/Yellow
Brown
2000W Pure Sine Wave
OFF
ON
2000W Pure Sine Wave
+
OFF
ON
REMOTE
–
external AC sockets
12VDC INPUT
+
REMOTE
–
Connection to
