Berkel 909E Specifications

Model 909E
C
Safety and Convenience Features

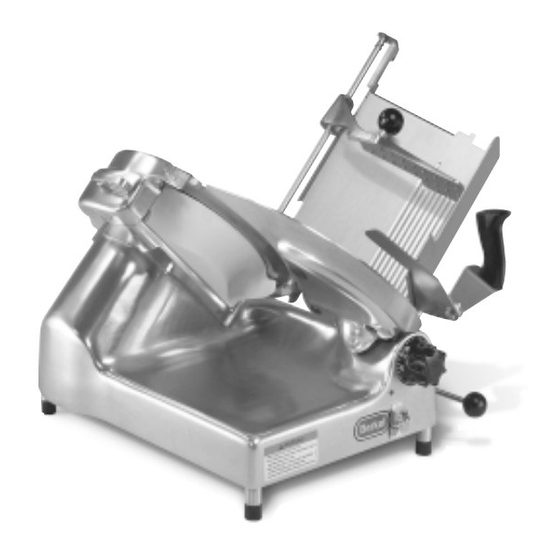

Berkel Model 909E manual gravity feed slicer
features Berkel's time proven hollow ground stain-
less steel knife, built-in dual action sharpener and a
number of safety features. The permanent, tapered
guard covers the non-slicing portion of the knife even
when the sharpener and center plate are removed.
The unit is easy to clean and disassembles quickly
without tools.
Accessories
Stainless steel vegetable chute with pusher
Product fence
Skewers with coring tool
Sharpening kit
Slaw tray
Receiving tray
Juice cup
4" Extension NSF legs (set of 4)
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC05-0902N
Item #
Model 909E
Manual Gravity Feed Slicer
Standard Features
1-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor, thermally protected
Furnished in 115/60/1, 4.5 amp, AC, ETL listed;
also available in 1/3 HP, 220/60/1, 2.4 amp, AC,
ETL listed
Low 12/5 VDC circuitry for added operator protection
Finish is stainless steel and sanitary burnished
aluminum; unit disassembles quickly without tools
for easy cleaning
Nominal 12-1/2" (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
The carriage handles food up to 11" (280 mm) wide,
by 6" (152 mm) high or 8" (203 mm) diameter
Rear-mounted, stainless steel meat pusher extends
over the entire length of the product table
Precise slice adjustment to a thickness of
27/32" (21 mm)
Ergonomic style handle for ease of use
Built-in, top-mounted, two stone knife sharpener
with single lever, dual-action system
Permanent, tapered knife ring guard covers non-
slicing portion of knife even when the sharpener
and center plate are removed
Q-P-Q nickel-plated transport slide rod with reservoir
wick for reduced wear
On/Off, 3-position, moisture resistant switch with
power light
Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
No-Volt release prevents activation of the slicer in
the event of a power interruption; operator must
restart the slicer
Options
1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
