Berkel 909M Specifications

Berkel 909M Specifications

Manual gravity feed slicer

Advertisement

Quick Links

Model 909M
Features

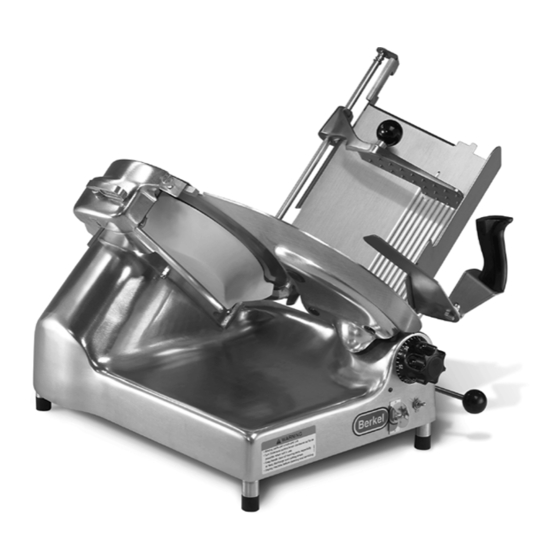

Berkel Model 909M manual gravity feed slicer features
Berkel's time proven hollow ground stainless steel knife,
built-in dual action sharpener and a number of special
features. The permanent, tapered guard covers the non-
slicing portion of the knife even when the sharpener and
center plate are removed. The center plate interlock
prevents the slicer from operating if the center plate is
removed. The unit is easy to clean and disassemblles
quickly without tools.
Accessories
Stainless steel vegetable chute with pusher
!
!
Product fence
Skewers with coring tool
!
Sharpening kit
!
Slaw tray
!
Receiving tray
!
Juice cup
!
4" Extension NSF legs (set of 4)
!
Sure-Lock Lift
!
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC06-0803N
Item #
Model 909M
Manual Gravity Feed Slicer
Standard Features
!
1-speed, 1/2 HP , totally enclosed and permanently
lubricated knife motor, thermally protected
!
Furnished in 115/60/1, 4.5 amps, AC, ETL listed; also
available in 1/3 HP , 220/60/1, 2.4 amp, AC, ETL listed
!
Low 12/5 VDC circuitry for added operator protection
!
Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools afor easy cleaning
!
Nominal 12-1/2" (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
!
The carriage handles food up to 11" (280 mm) wide, by 6"
(152 mm) high or 8" (203 mm) diameter
!
Rear-mounted stainless steel meat pusher extends over
the entire length of the product table
!
Precise slice adjustment to a thickness of 27/32" (21 mm)
!
Ergonomic product table handle for ease of use
!
Built-in, top-mounted, two stone knife sharpener with single
lever, dual-action system
!
No-Volt Release prevents activation of the slicer in the
event of a power interruption; operator must restart the
slicer
!
Center plate interlock prevents the slicer from running
when the center plate is removed
!
Permanent, tapered knife ring fuard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
!
Q-P-Q nickel-plated transport slide rod with reservoir wick
for reduced wear
!
ON/Off, 3-position, moisture resistant switch with power
light
!
Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Options
!
1.3 HP , 230/60/1, 2.9 amp, AC, ETL listed
!
1.3 HP , 230/50/1, 2.9 amp, AC, ETL listed
