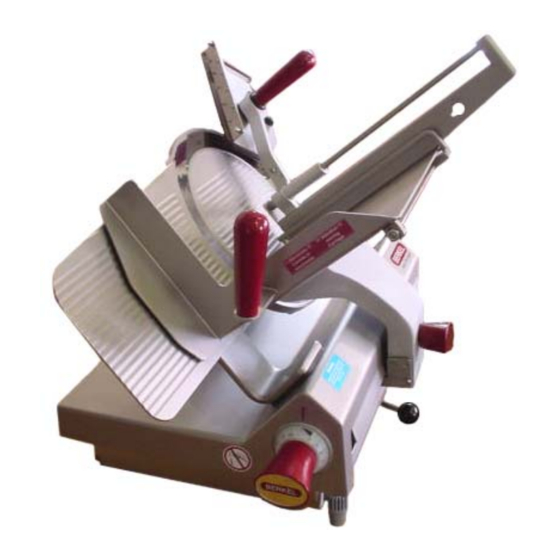

Berkel 932 Service Manual

Semi automatic slicers
Hide thumbs

Advertisement

Quick Links

Download this manual
Service Manual
SERVICE MANUAL
932 & 933
SEMI AUTOMATIC SLICERS
900 Series 932-933
Date 11-06-08 SM - Code SC1- Rev. 0.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 932 and is the answer not in the manual?

Questions and answers

Related Manuals for Berkel 932

Summary of Contents for Berkel 932

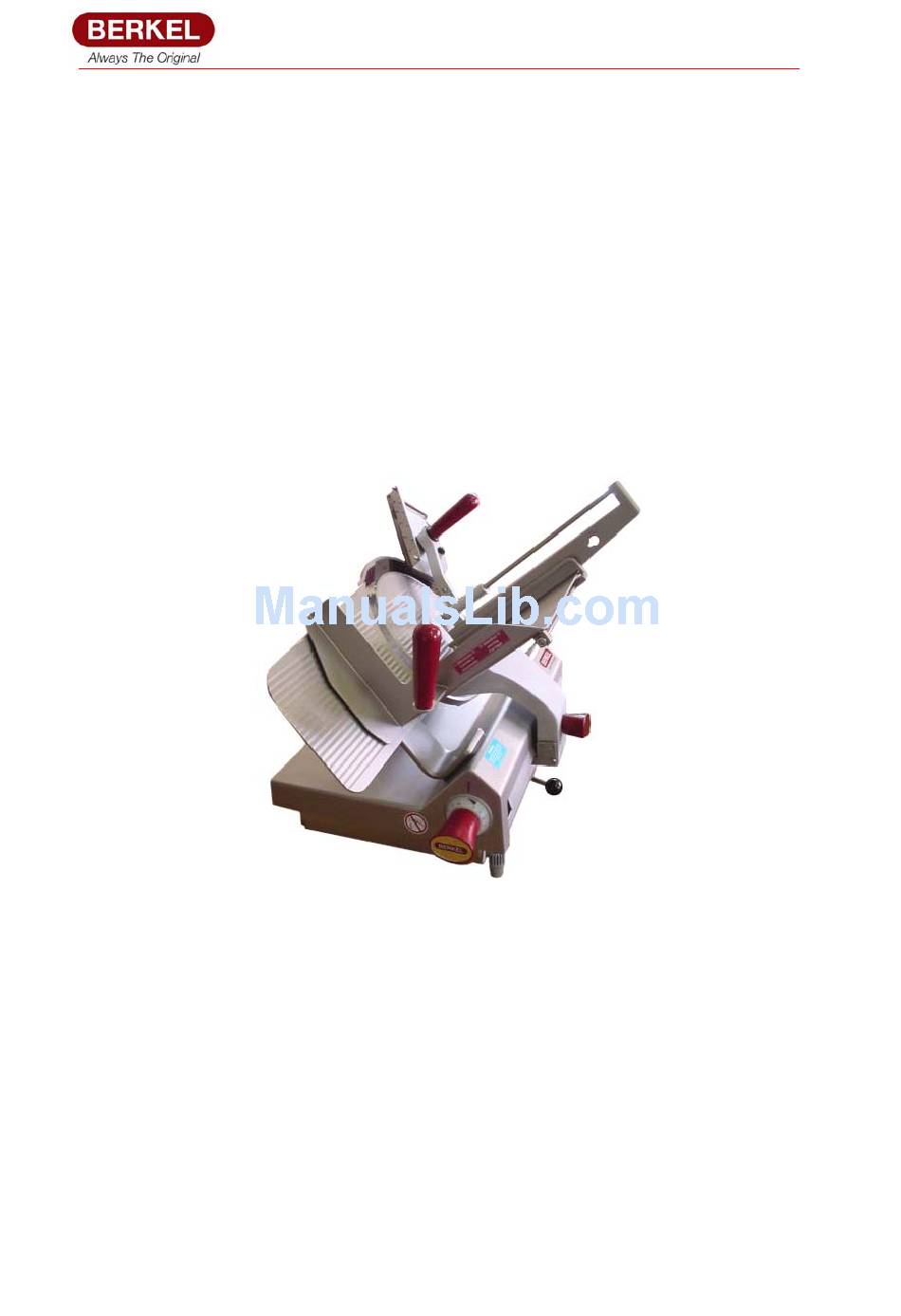

  • Page 1 Service Manual SERVICE MANUAL 932 & 933 SEMI AUTOMATIC SLICERS 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 2 Service Manual CONTENTS Table of Contents: INTRODUCTION SAFETY ELECTRICAL DIAGRAMS TECHNICAL INFORMATION APPENDICES 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 3 1 INTRODUCTION Table of Contents: 1.0 INTRODUCTION The Berkel 932 and 933 slicers are stainless steel robust slicers designed for continuous use, these slicers are IP33 rated. The slicers have a simple electronic control and are easy to operate. The carriage can be moved either automatically or manually.

  • Page 4: Safety Devices

    2.2 Products that can’t be sliced Non food items Food with bones Deep frozen food products Note: To slice quantities of cheese the Teflon coated option is recommended 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 5 Service Manual 3 ELECTRICAL DIAGRAMS Table of Contents: Page 3.0 ELECTRICAL DIAGRAM 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 6 Service Manual 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 7 Service Manual 4 TECHNICAL INFORMATION Table of Contents: Page 4.1 TECHNICAL DATA 4.2 MAINTENANCE 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...

  • Page 8: Technical Data

    Footprint Dimension: D Footprint Dimension: A Maximum distance between the pusher and gauge plate Speed of table 32 - 52 32 - 52 Motor power rating 1 PHASE 0.6kW 0.6kW 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 9 If you find any hazardous problems with the machine i.e. interlock not functioning then inform the customer that the machine is not safe to be used and note the issue on your TJR. 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 10 Top clamp meat table 5.2 TECHNICIANS RECOMMENDED PARTS PART NUMBER DESCRIPTION B9S-2.24 Countersunk screw (Knife screw) B92-009-014 Sharpener stone - fine B92-2.6 Blade 330mm, 932 B93-2.6 Blade 350mm, 933 BS936-312 Knife remover 330mm G350-313 Knife remover 350mm B9S-52.32 Switch foil 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev.

  • Page 11: Table Of Contents

    5.3.2 932/933 Blade drive unit (Drawing 2) 5.3.3 932/933 Knife hub (Drawing 3) 5.3.4 932/933 Thickness plate complete with support (Drawing 4) 18 5.3.5 932/933 Index knob and cam assembly (Drawing 5) 5.3.6 932/933 Meat table and support (Drawing 6) 5.3.7...

  • Page 12: 932/933 Machine Body (Drawing 1)

    Service Manual 5.3.1 932 / 933 Machine body (Drawing 1) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 13 Service Manual 5.3.1 932 / 933 Machine Body (Drawing 1) PART NO DESCRIPTION B9S-1 Machine Body Complete B92-2 Blade drive unit complete assembly (drawing 2) B93-2 Blade drive unit complete assembly (drawing 2) B92-3 Thickness plate complete with support (drawing 4)

  • Page 14: 932/933 Blade Drive Unit (Drawing 2)

    Service Manual 5.3.2 932 / 933 Blade drive unit (Drawing 2) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 15 Service Manual 5.3.2 932 / 933 Blade drive unit (Drawing 2) PART NO DESCRIPTION B92-2 Blade drive unit complete assembly B93-2 Blade drive unit complete assembly B92-2.1 Knife hub complete B93-2.1 Knife hub complete B9S-2.2 Fixing screw for blade guard complete B92-2.3...

  • Page 16: 932/933 Knife Hub (Drawing 3)

    Service Manual 5.3.3 932 / 933 Knife hub (Drawing 3) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 17 Service Manual 5.3.3 932 Knife hub (Drawing 3) PART NO DESCRIPTION B92-2.1 Knife hub complete (see drawing 2) B93-2.1 Knife hub complete (see drawing 2) 2.1.1 B92-2.1.1 Knife hub B93-2.1.1 Knife hub 2.1.2 B9S-2.1.2 Knife axle 2.1.3 B9S-2.1.3 Retaining ring 2.1.4...

  • Page 18: 932/933 Thickness Plate Complete With Support (Drawing 4)

    Service Manual 5.3.4 932 / 933 Thickness plate complete with support (Drawing 4) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 19 B93-3.1T Thickness plate complete, Teflon B9S-3.2 Support for thickness plate complete B9S-3.3 Cover for support B9S-3.4 Countersunk screw B9S-3.5 Threaded pin B9S-3.6 Hexagon nut B9S-3.7 Spring washer B9S-3.8 Washer 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...

  • Page 20: 932/933 Index Knob And Cam Assembly (Drawing 5)

    Service Manual 5.3.5 932 / 933 Index knob and cam assembly (Drawing 5) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 21 Service Manual 5.3.5 932 / 933 Index knob and cam assembly (Drawing 5) PART NO DESCRIPTION Drawing 05 B9S-4 Adjusting lever complete assy (drawing 05) B9S-4.1 Adjusting lever B9S-4.2 Guide shaft for adjusting lever B9S-4.3 Distance piece for strap B9S-4.4 Strap B9S-4.5...

  • Page 22: 932/933 Meat Table And Support (Drawing 6)

    Service Manual 5.3.6 932 / 933 Meat table and support (Drawing 6) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 23 Service Manual 5.3.6 932 / 933 Meat table and support (Drawing 6) PART NO DESCRIPTION Drawing 06 B9S-5 Carriage Complete Assembly (drawing 06) B9S-5.1 Carriage complete B9S-5.1T Carriage complete, Teflon B9S-5.2 Carriage arm B9S-5.3 End piece holder complete (drawing 07) B9S-5.4...

  • Page 24: 932/933 End Piece Holder Assembly (Drawing 7)

    Service Manual 5.3.7 932 / 933 End piece holder (pusher plate) assembly (Drawing 7) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 25 Service Manual 5.3.7 932 / 933 End piece holder (pusher plate) assembly (Drawing 7) PART NO DESCRIPTION Drawing 07 B9S-5.3 End piece holder complete (drawing 07) 5.3.1 B9S-5.3.1 End piece holder plate – metal 5.3.2 B9S-5.3.2 End piece holder arm complete 5.3.3...

  • Page 26: 932/933 Product Fence (Drawing 8)

    Service Manual 5.3.8 932 / 933 Product fence (Drawing 8) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 27 Service Manual 5.3.8 932 / 933 Product fence (Drawing 8) PART NO DESCRIPTION Drawing 08 B9S-5.7 Adjusting bar complete assy (drawing 08) 5.7.1 B9S-5.7.1 Adjusting bar complete 5.7.2 B9S-5.7.2 Locking part complete 5.7.3 B9S-5.7.3 Pressure spring 5.7.4 B9S-5.7.4 Countersunk screw 5.7.5...

  • Page 28: 932/933 Sliding Carriage Support (Drawing 9)

    Service Manual 5.3.9 932 / 933 Sliding carriage support (Drawing 9) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 29 Service Manual 5.3.9 932 / 933 Sliding carriage support (Drawing 9) PART NO DESCRIPTION B9S-6 Sliding support complete assembly (drawing 09) B9-6.1 Sliding support with magnet B9S-6.2 Bolt for carriage drive B9S-6.3 Eccentric for carriage B9S-6.4 Locking bolt B9S-6.5 DU-bushing B9S-6.6...

  • Page 30: 932/933 Electrical Components (Drawing 10)

    Service Manual 5.3.10 932 / 933 Electrical Components (Drawing 10) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 31 Service Manual 5.3.10 932 / 933 Electrical Components (Drawing 10) PART NO DESCRIPTION Drawing 10 B9S-7 Electronic complete assembly (drawing 10) 7.1.1 B9S-7.1.1 Electronic control for switch, single phase 7.1.2 B9S-7.1.2 Electronic control for switch, three phase 7.2.1 B9S-7.2.1 Plug single-phase 7.2.2...

  • Page 32: 932/933 Carriage Chain Drive (Drawing 11)

    Service Manual 5.3.10 932 / 933 Carriage chain drive (Drawing 11) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 33 Service Manual 5.3.11 932 / 933 Carriage chain drive (Drawing 11) PART NO DESCRIPTION Drawing 11 B9S-50 Complete assembly with chain wheels 50.1 B9S-50.1 Fixing angle 50.2 B9S-50.2 Chain wheel complete (Drawing 12) 50.3 B9S-50.3 Chain tensioner complete) 50.4 B9S-50.4 Distance piece for chain cover 50.5...

  • Page 34: 932/933 Chain Cog Assembly (Drawing 12)

    Service Manual 5.3.12 932 / 933 Chain cog assembly (Drawing 12) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 35 Service Manual 5.3.12 932 / 933 Chain cog assembly (Drawing 12) PART NO DESCRIPTION Drawing 12 B9S-50.2 Chain wheel complete 50.2.1 B9S-50.2.1 Chain cog 50.2.2 B9S-50.2.2 Bolt for chain cog 50.2.3 B9S-50.2.3 Deep groove ball bearing 50.2.4 B9S-50.2.4 Retaining ring 50.2.5...

  • Page 36: 932/933 Plate For Sliding Support (Drawing 13)

    Service Manual 5.3.13 932 / 933 Plate for sliding support (Drawing 13) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 37 Service Manual 5.3.13 932 / 933 Plate for sliding support (Drawing 13) PART NO DESCRIPTION Drawing 13 B9S-51 Plate for sliding board complete (drawing 13) 51.1 B9S-51.1 Plate for sliding support 51.2 B9S-51.2 Disengaging lever complete 51.3 B9S-51.3 Bearing-1 51.4 B9S-51.4...

  • Page 38: 932/933 Auto / Manual Lever (Drawing 14)

    Service Manual 5.3.14 932 / 933 Auto / Manual lever (Drawing 14) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 39 Service Manual 5.3.14 932 / 933 Auto / Manual lever (Drawing 14) PART NO DESCRIPTION Drawing 14 B9S-51.2 Disengaging lever complete (drawing 14) 51.2.1 B9S-51.2.1 Plate for disengaging lever 51.2.2 B9S-51.2.2 Knob for disengaging lever 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...

  • Page 40: 932/933 Electronic Pcb & Transformer (Drawing 15)

    Service Manual 5.3.15 932 / 933 Electronic PCB & Transformer (Drawing 15) 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
  • Page 41 Service Manual 5.3.15 932 / 933 Electronic PCB & Transformer (Drawing 15) PART NO DESCRIPTION Drawing 15 B9S-52 Electric complete assy (drawing 15) 52.1 B9S-52.1 Fixing plate for electric components 52.2 B9S-52.2 Angle for condenser 52.3.1 B9S-52.3.1 Condenser 52.3.2 B9S-52.3.2 Condenser (Only CSA-execution) 52.4...

  • Page 42: Additional Parts

    Service Manual 5.3.16 Additional Parts PART NO DESCRIPTION B9S-52.60 Electronic board (110V) B9S-52.61 Electronic board (400V) B9S-52.62 Electronic board (230V) B93-009 Sharpening device complete 933 900 Series 932-933 Date 11-06-08 SM - Code SC1- Rev. 0.1...
