Berkel 909AS Specifications

Model 909AS
C
Safety and Convenience Features

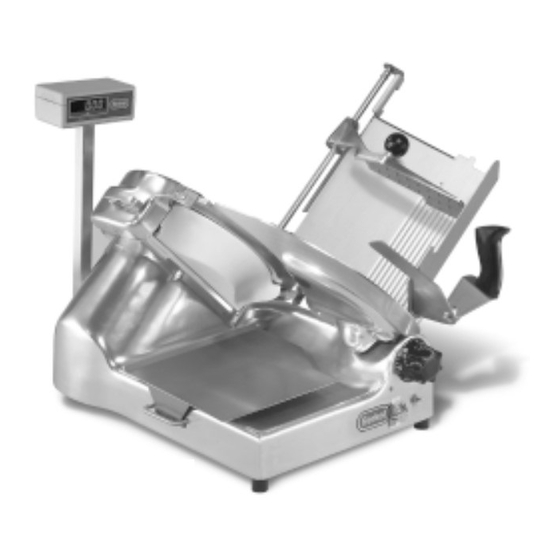

Berkel Model 909AS combi gravity feed slicer features a built-
in digital scale that lets you slice/weigh to order. available in
pound, ounce or gram versions. The side-mounted weight
system uses an easy-to-read, tower, vacuum florescent
display. Model 909AS includes Berkel's time proven hollow
ground stainless steel knife, built-in, single lever, dual-action
sharpener and many safety features. The permanent, tapered
guard covers the non-slicing portion of the knife even when
the sharpener and center plate are removed. The gauge plate
interlock prevents the product table from being removed
unless it is in the full forward or home position and the gauge
plate is closed. Removing the product table locks the gauge
plate in the closed position. The center plate interlock prevents
the slicer from operating if the center plate is removed. A built-
in timer automatically shuts off the unit after 15 seconds of
non-use. Units are easy to clean and disassemble quickly
without tools.
Accessories
Stainless steel vegetable
chute with pusher
Skewers with coring tool
Sharpening kit
Receiving tray
Product fence
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC09-0902N
Item #
Model 909AS
Combi Gravity Feed Slicer
Standard Features
Built-in, digital scale lets you slice/weigh to order; pound,
ounce or gram versions available
Side-mounted weight system uses an easy-to-read,
tower, vacuum florescent display
2-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor
Furnished in 115/60/1, 5.5/4.5 amp, AC, ETL listed; also
available in 1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
Low 12/5 VDC circuitry for added operator protection
Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools for easy cleaning
Nominal 12-1/2" (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
The carriage handles food up to 11" (280 mm) wide,
by 6" (152 mm) high or 8" (203 mm) diameter
Rear-mounted, stainless steel meat pusher extends over
the length of the product table
Precise slice adjustment to thickness of 27/32" (21 mm)
Ergonomic style handle for ease of use
Built-in, top-mounted, two stone knife sharpener with
single lever, dual-action system
Permanent, tapered knife ring guard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
Center plate interlock prevents the slicer from running
when center plate is removed
No-Volt release prevents activation of the slicer in the
event of power interruption; operator must restart slicer
Gauge plate interlock prevents removal of the product
table until it is in the full forward or home position and the
gauge plate is fully closed; once table is removed, gauge
plate cannot be reopened
Built-in timer automatically shuts the slicer off after15
seconds of non-use
Q-P-Q nickel plated transport slide rod with reservoir
4" Extension NSF
wick for reduced wear
legs (set of 4)
On/off, 3-position, moisture protected switch
SURE-LOCK LIFT™
with power light
Attached 6-foot, flexible, 3-wire cord and plug for
Slaw tray
grounded receptacle
Juice cup
Options
1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
