Berkel 909A Specifications

Model 909A
C
Safety and Convenience Features

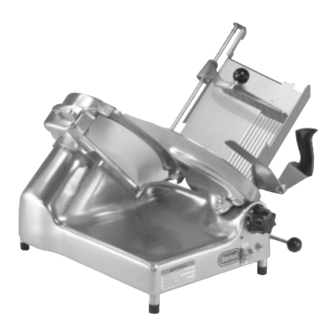

Berkel Model 909A manual gravity feed slicer features
Berkel's time proven hollow ground stainless steel knife,
built-in, single lever, dual action sharpener and many safety
features. The permanent, tapered guard covers the non-slicing
portion of the knife even when the sharpener and center
plate are removed. The gauge plate interlock prevents the
product table from being removed unless it is in the full
forward or home position and the gauge plate is closed.
Removing the product table locks the gauge plate in the
closed position. The center plate interlock prevents the slicer
from operating if the center plate is removed. A built-in timer
automatically shuts off the unit after 15 seconds of non-use.
Units are easy to clean and disassemble quickly without tools.
Accessories
Stainless steel vegetable
chute with pusher
Skewers with coring tool
Sharpening kit
Receiving tray
Product fence
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC08-0902N
Item #
Model 909A
Manual Gravity Feed Slicer
Standard Features
2-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor
Furnished in 115/60/1, 5.5/4.5 amp, AC, ETL listed; also
available in 1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
Low 12/5 VDC circuitry for added operator protection
Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools for easy cleaning
Nominal 12-1/2" (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
Precise slice adjustment to a thickness of
27/32" (21 mm)
The carriage handles food up to 11" (280 mm) wide,
by 6" (152 mm) high or 8" (203 mm) diameter
Rear-mounted, stainless steel meat pusher extends over
the entire length of the product table
Ergonomic style handle for ease of use
Built-in, top-mounted, two stone knife sharpener with
single lever, dual-action system for a lasting, razor-sharp
edge
Permanent, tapered knife ring guard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
Center plate interlock prevents the slicer from running
when center plate is removed
No-Volt release prevents activation of the slicer in the
event of power interruption; operator must restart the
slicer
Gauge plate interlock prevents removal of the product
table until it is in the full forward or home position and the
gauge plate is fully closed; once table is removed, gauge
plate cannot be reopened
Built-in timer automatically shuts the slicer off after
15 seconds of non-use
4" Extension NSF
Q-P-Q nickel plated transport slide rod with reservoir wick
legs (set of 4)
for reduced wear
SURE-LOCK LIFT™
On/off, 3-position, moisture protected switch with
power light
Slaw tray
Attached 6-foot, flexible, 3-wire cord and plug for
Juice cup
grounded receptacle
Options
1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
