Overview

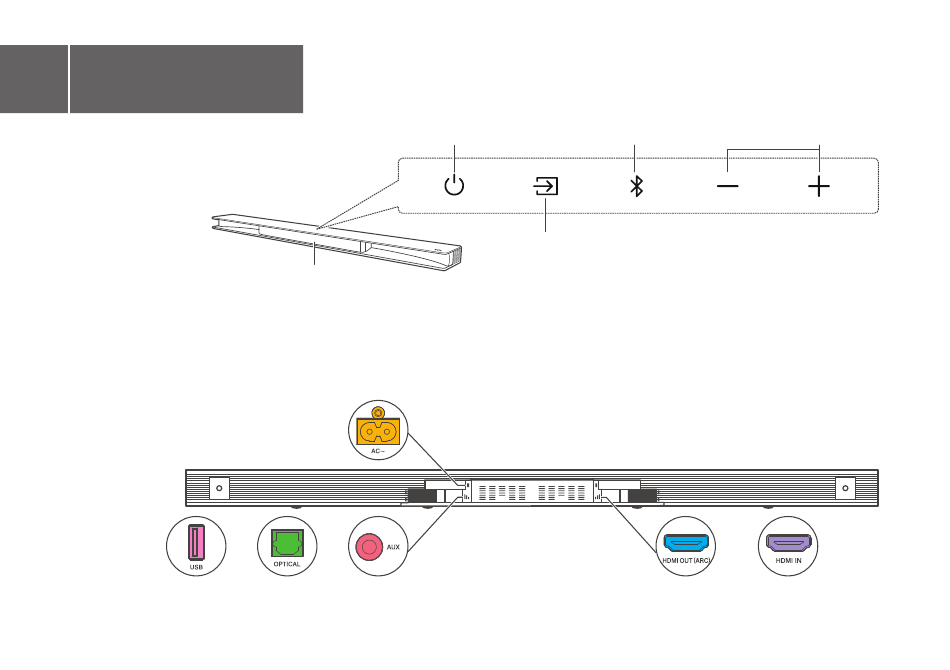

Sound Bar main unit
USB Type A
connector
LED display:
It indicates the Sound Bar status (e.g.
volume level, sound source mode, etc.).
AC input
power connector
Optical input AUX input
connector
connector
Power button:
Press to turn the Press to select the Bluetooth
Sound Bar main unit source. Press and hold to
on or off.
Source button:
Press to switch the
audio source among
HDMI IN/HDMI ARC/
AUX/BT/Optical/
USB modes.
Bluetooth button:
enter pairing mode.
HDMI OUT (ARC)
connector
Volume button:
Press to increase
or decrease the
volume level.
HDMI IN
connector
