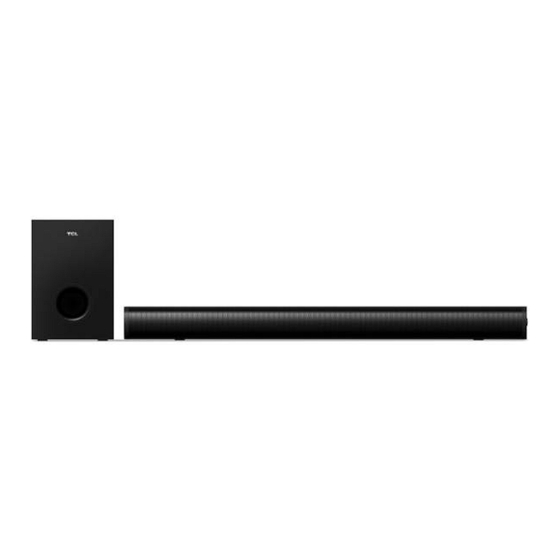

  • Page 2 2.1 Channel Sound Bar with Wireless Subwoofer S522W User Manual...

  • Page 3: Table Of Contents

    Contents 1 Important safety instructions Important information Important safety instructions Battery Caution and Disposal Information 2 Welcome What's in the box Overview Overview of the remote control Install/replace the remote control batteries Set up your sound bar system 3 Set up your Sound Bar system Position Your Sound Bar and Subwoofer Mount your Sound Bar on the wall 4 Connect your Sound Bar system...

  • Page 4: Important Safety Instructions

    1 Important safety instructions Important information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol,within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to...
  • Page 5 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Warnings ● To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 6: Important Safety Instructions

    Important safety instructions ● Read these instructions - Read all the safety and operating instructions before operating the product. ● Retain these instructions - Retain the safety and operating instructions for future reference. ● Heed all warnings - Adhere to all warnings on the product and in the operating instructions.
  • Page 7 ● Use only attachments/accessories specified by the manufacturer. ● Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. ●...

  • Page 8: Battery Caution And Disposal Information

    ● Disconnect the power adapter to shut off when you find trouble or when not in use. The power adapter shall be easy to access. ● Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
  • Page 9 ● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. ● Recycle or dispose of batteries as per state and local guidelines. ● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

  • Page 10: Installation Location

    the battery compartment is completely secure after you replace the battery. ● If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. Installation location ● This product is designed to sit on a firm, flat surface. Do not place the product on built-in installation such as a bookcase or rack because the ventilation slots around the product will be blocked, resulting in reduced lifetime from overheating.

  • Page 11: Welcome

    2 Welcome Congratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a super sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.

  • Page 12: Overview

    Overview Button and jack definition: Buttons and jacks are defined as follows: OPT USB AUX DC IN : Press to power on, short press to switch function, long press to power off 2. —: Press for volume down 3. +: Press for volume up : Press for Bluetooth pairing 5.

  • Page 13: Overview Of The Remote Control

    Overview of the Remote Control : Press to power on and power off. : Press to switch to Bluetooth mode, long press to bluetooth pairing. 3. AUX: Press to switch to AUX input. 4. HDMI: Press to switch to HDMI mode. 5.

  • Page 14: Install/Replace The Remote Control Batteries

    light will be on). Press to previous song under Bluetooth, USB or mode. 11. MUTE: Press the mute button and turn on the sound button (white light will flash slowly when mute). 12. USB: Press to switch to USB play when insert USB. 13.
  • Page 15 Note: The Remote Control works within a range of 6 meters. OPEN PUSH • This product contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. •...

  • Page 16: Set Up Your Sound Bar System

    Sound Bar main unit on the wall. Make sure you use screws provided or specified by the authorized manufacturer. TCL Overseas Marketing Limited bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc.

  • Page 17: Mount Your Sound Bar On The Wall

    Mount your Sound Bar on the wall You can choose to mount your Sound Bar main unit on the wall. 1. Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 10cm below the center of the TV.
  • Page 18 4. Mark on the wall using each marking on the template through the mounting holes. 5. Take away the wall mount template. 6. Drill a screw hole at each marking on the wall. > 10cm 406.7mm 7. Take out the screws from the rear of the soundbar, 2 per side.
  • Page 19 10. Insert the supplied wall anchors into 2 screw holes on the wall. 11. Insert the supplied screws into the wall anchors. 12. Fix and tighten the screws on the wall. 13. Hang the Sound Bar main unit on the screws.

  • Page 20: Connect Your Sound Bar System

    4 Connect your Sound Bar system After you have fixed the position of the Sound Bar, you can start connecting it to your TV or other devices and listen to the audio through your Sound Bar. Make sure you have muted the audio of your TV or device.
  • Page 21 For TCL TV: • Connect HDMI cable from the HDMI (ARC) interface on the sound bar to the HDMI (ARC/eARC) interface on the TV. Connect power cord. • Enable the CEC function in the settings of the TCL TV.

  • Page 22: Connect With The Optical Cable

    Connect with the optical cable 1. Remove the protective caps from the optical cable when necessary. 2. Connect one end of the optical cable to the optical input connector on your Sound Bar and another end to the optical output connector of your TV or device. DC IN ARCO PT USBA UX DC IN...

  • Page 23: Direction For Setting Up Your Sound Bar Using An Optical Cable

    To get the best possible audio experience using the optical cable: 1 Press the Home button on your TCL TV Remote. 2 Navigate to Audio option under Settings. 3 Uncheck the “TV speaker enabled” option.

  • Page 24: Use Your Sound Bar System

    • Press on the remote control to listen to/pause/ resume the music. • Press on the remote control to skip to the previous or next track. • Press to increase or decrease the volume level. 5 Use your Sound Bar system Get Started: 1.

  • Page 25: Aux Mode

    Bluetooth device (please refer to the phone instructions for details); 3. Select "TCL S522W" from the device that has been searched for, click connection, with voice prompt; 4. If the phone remind you to enter password, enter “0000”...

  • Page 26: Hdmi Mode

    HDMI Mode Press the " " button on the soundbar or "HDMI" button on the remote control to switch to " HDMI” mode. At this point, connect the HDMI cable to the TV set and then to the HDMI IN(ARC) jack on the back of the soundbar. Turn on the TV to power on the soundbar.

  • Page 27: Specification

    raise the volume. Note: during volume increase and decrease, the indicator light flash; when the volume is increased to the maximum or decreased to the minimum, the indicator light will be on. So remind the user! B. After power on, in any mode of playback, Press the remote control to choose sound effect mode: MUSIC, MOVIE and DIALOG.
  • Page 28 Bluetooth version Bluetooth range Up to 10m Soundbar, Subwoofer, Remote control, AC Included in the adaptors, AUX cable (3.5mm to RCA), QSG, packaging Wall-mounted bracket and screws, Wall mount template Soundbar: 810 x 92 x 63 mm/1.50 kg Dimensions/Weight Subwoofer: 165 x 240 x 298 mm/2.05 kg Distance/Angel: 6m/30°...

  • Page 29: Trademarks

    7 Trademarks Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TCL Corporation under license. Other trademarks and trade names are those of their respective owners. HDMI...

  • Page 30: Faq

    8 FAQ Question Answer approach Another mobile device may be connected Bluetooth to the soundbar. Disconnected the paired other connected bluetooth device. Once connection the device is disconnected, you device cannot be should pair automatically-provided it was completed previously paired. 1.
  • Page 31 1. Obstruction exists between mobile devices and Bluetooth device. Bluetooth Remove obstructions. connection 2. Too far away from Bluetooth device plays normally, to connected mobile devices, beyond sometimes with the connection range. Shorten the broken sound. distance between the Bluetooth device and mobile devices.
  • Page 32 TCL support: Please visit www.tcl.com WE ARE READY TO HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUND BAR Copyright © 2022 TCL. All rights reserved. EN_S522W-EU_UM_V1.2...
