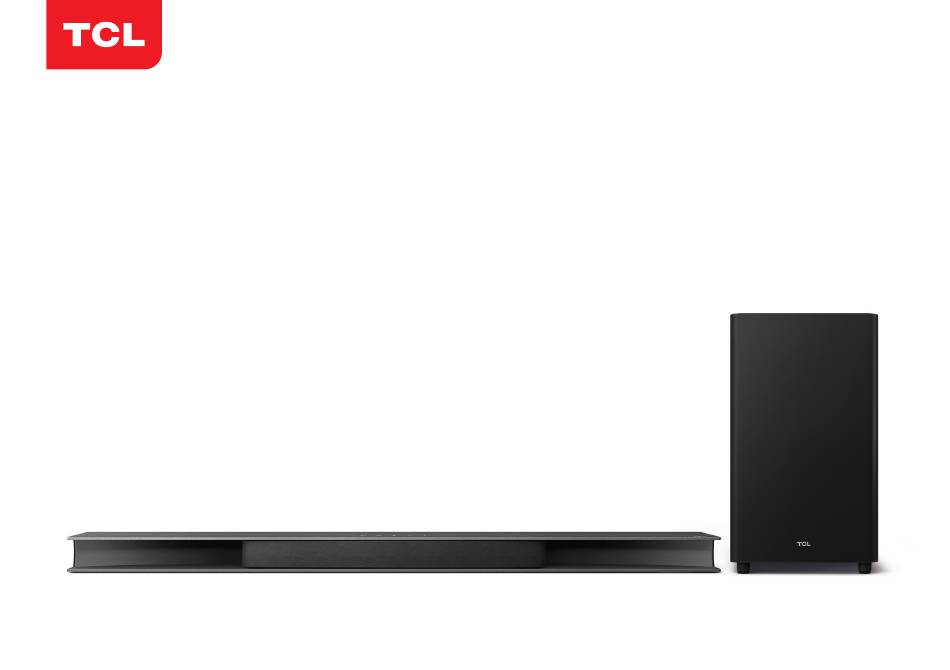

3.1 ch atmos sound bar with built-in subwoofer
Hide thumbs

Advertisement

Table of Contents

RAY.DANZ
3.1 CH Atmos Sound Bar with Built-in Subwoofer
Short user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAY.DANZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TCL RAY.DANZ

Summary of Contents for TCL RAY.DANZ

  • Page 1 RAY.DANZ 3.1 CH Atmos Sound Bar with Built-in Subwoofer Short user manual...
  • Page 2 • Unplug this apparatus during lightning storms or when unused for long periods of time. TCL Entertainment Solutions Limited bears no responsibility for accidents or damages caused by unauthorized • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been...
  • Page 3 • Débranchez cet appareil lors d’orages ou lors de non-utiliser pendant une longue temps. TCL Entertainment Solutions Limited ne prendra aucune responsabilité pour tous accidents ou endommages • Confiez tout entretien au personnel qualifié. Un entretien est requis lorsque l’appareil a été...

  • Page 4: What's In The Box

    What's in the box Make sure you read all the safety information before you use this product. Sound Bar main unit Subwoofer AC power cord x 2 Optical cable HDMI cable Remote control AAA battery x 2 Wall mount bracket x 2 Wall screws x 2 Wall anchor x 2 Wall mounting screw x 2...
  • Page 5 Power button: Bluetooth button: Volume button: Overview Press to turn the Press to select the Bluetooth Press to increase Sound Bar main unit source. Press and hold to or decrease the on or off. enter pairing mode. volume level. Sound Bar main unit Source button: Press to switch the audio source among...
  • Page 6 Overview Wireless subwoofer AC input power PAIR connector...
  • Page 7 Power button Overview Remote control Source buttons Play/Pause/OK Rewind Fast forward Volume up Bass level up Treble level up Bass level down Treble level down Volume down Mute/Unmute Vertical surround on/off Sound mode on/off AV sync adjustment...

  • Page 8: Wall Mount Your Sound Bar

    Place your Sound Bar and subwoofer < 3m / 9.8' You are recommended to place the Sound Bar on the top of the table and right below the center of your TV. The distance between the subwoofer and the Sound Bar main unit should be within 3 meters (9.8 feet).
  • Page 9 Wall mount your Sound Bar Required tools: • Insert the supplied wall anchors into 2 screw holes on the wall. • Insert the supplied wall bracket screws through the wall brackets into the wall anchors. • Fix and tighten the wall bracket screws on the wall.
  • Page 10 Remove the back cover of your Sound Bar Remove the back cover of your Sound Bar before connecting cables. Connect to your TV by HDMI ARC Connect the Sound Bar with your TV through the HDMI cable.

  • Page 11: Optical Connection

    Connect to your AV device by HDMI IN Connect the Sound Bar with the audio device (Bluray player or set top box) through the HDMI cable. Bluray player, set top box, etc. Optical connection You can also connect the Sound Bar with your TV or other audio devices through the supplied optical cable.

  • Page 12: Aux Connection

    AUX connection You can also connect the Sound Bar with your TV or other audio devices through the supplied AUX cable. Connect to power Use the power cord. Standby power consumption: < 2W...
  • Page 13 2. Press > is flashing on the LED display. The Sound Bar is ready to pair. 3. Power on your Bluetooth device and activate its Bluetooth function. 4. Select TCL RAY-DANZ. > You hear a sound signal. > Pairing is successful.

  • Page 14: Setup Wifi Connection

    Pair your subwoofer 2.4GHz The Sound Bar will pair with the Subwoofer automatically. If not sucessful, press and hold PAIR to activate pairing manually. > The LED will flash when pairing is in progress. > The LED will remain on solidly when pairing is successful.
  • Page 15 Sound Bar LED display The LED display on the front of the Sound Sound Bar status LED display Bar gives you information about different Sound Bar status. Power Power on HELLO Power off STANDBY Standby • Source Bluetooth Optical HDMI IN HDMI1 IN HDMI ARC HDMI2 ARC...

  • Page 16: Frequently Asked Questions

    When Sound Bar and TV are both on, there’s an echo effect and audio is out of sync. Turn the speaker off. If you have a TCL Roku TV, please follow the steps below to turn off the TV speakers: 1.
  • Page 17 Frequently asked questions How many sound modes are available? Three auto sound modes - Movies, Music and News are available. The Sound Bar will automatically switch to HDMI or optical mode when watching movies and USB or Bluetooth mode when listening to music. How do I get the best Wi-Fi connection? •...

  • Page 18: Wireless Specification

    • Impedance: 4 Ω • Frequency Response: 40Hz - 120Hz • Dimension (WxHxD): 120 x 410 x 300 mm Specifications Remote Control • Distance/Angle: 6m/30° • Battery Type: AAA (1.5V X 2) Wireless Specification • Bluetooth Version /profiles: V5.0 (A2DP, AVRCP) •...
  • Page 19 WE ARE READY TO User manual HELP contact us first TCL SUPPORT: with any questions www.tcl.com/support TAKE CARE WHEN REMOVING THE SOUNDBAR Copyright © 2019 TCL. All rights reserved. TS9030_EU_EN_QSG_V1.0...
