Summary of Contents for TCL TS8132

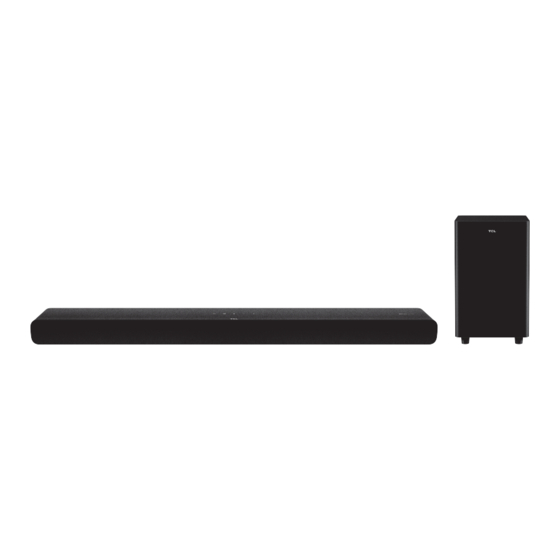

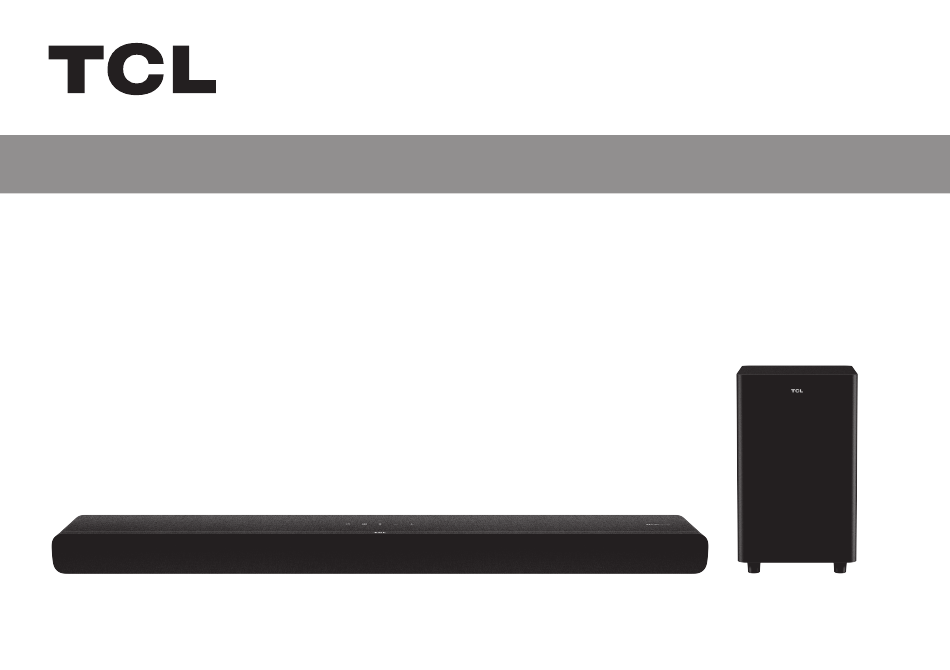

- Page 1 TS8132 / TS813 3.1.2 Channel Dolby Atmos Sound Bar with Wireless Subwoofer Quick Start Guide...
-
Page 3: Register Your Product
Register Your Product Register your TCL Sound Bar to receive the latest news on product releases, promotional offers, and more!* Text to Register Text a photo of the camera icon to 71403 Or register online at register.tcl.com Need help? Visit photoregister.com/help... -
Page 5: What's In The Box
Make sure you read all the safety information before you use this product. Sound Bar main unit Wireless Subwoofer AC power cord x 2 Optical cable (TS8132 only) HDMI cable AAA battery x 2 Remote control Wall mount bracket x 2... - Page 6 Overview Sound Bar main unit Source button: Volume buttons: Press to increase Press to switch the audio source or decrease the among HDMI ARC/HDMI IN/ /BT/USB modes. volume level. Power button: Bluetooth button: Press to select the Bluetooth source. Press to enter SLEEP Press and hold to enter pairing mode.
- Page 7 HDMI IN connector Overview AC IN AC input power connector Pair button (Pair with Soundbar main unit)
-
Page 8: Wall Mount Your Sound Bar
Position your Sound Bar < 9.8' The ideal place to position the Sound Bar is centered underneath your TV. Wall mount your Sound Bar Required tools: > 2" Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 2 inches below the center of the TV. - Page 9 Wall mount your Sound Bar Required tools: Insert the wall anchors in the holes on the wall. Insert the supplied screws with the sleeves into the hole of the wall anchors. Fix and tighten the wall bracket screws on the wall.
- Page 10 Wall mount your Sound Bar Required tools: Unscrew the rubber cushions from the bottom of the sound bar and set them aside for potential use in the future. Attach the included wall bracket mounts to the sound bar in the same holes the rubber cushions were removed from.
-
Page 11: Connect To Your Tv
Connect to your TV There are 2 ways to connect your sound bar to the TV HDMI CEC (listed in order that we recommend): HDMI ARC (refer to 5a and 5b), and Optical (refer to 5c). For USA only: If you have a Roku TV , simply plug in the HDMI cable to the ARC ports and follow the Roku TV Ready... - Page 12 Sound Mode Auto Standby Sports Mode PlayStation 5 Consumer Electronic Control(CEC) Enable CEC function on TCL TV. Audio Only Mode TV Settings Connect HDMI cable from the HDMI (ARC) interface on the sound bar to the HDMI (ARC/eARC) interface on the TV.
- Page 13 Optical Connect the Sound Bar to the TV with an Optical cable. Connect the Sound Bar to the power supply with the supplied power cord. AC IN...
-
Page 14: Using The Remote
Install or replace the remote batteries Battery type: 1.5V AAA Alkaline battery x 2 Using the Remote Press to switch the audio source to Bluetooth mode. Press and hold to enter pairing mode. Press to switch on/off Pass Through function. Press to select the equalizer (EQ) effect when you are watching TV, Press to enter Sleep mode. - Page 15 > The Sound Bar is ready to pair. 4. Power on your Bluetooth device and activate its Bluetooth function. 5. Select TCL 8132 Sound Bar. > You hear a sound signal. > Pairing is successful. 6. If you want to pair another device, please repeat step 3.
- Page 16 3b. For the Airplay 2, in Settings > Wi-Fi, look for Media Settings "TCL 8132 Sound Bar" under "SETUP AS NEW AIRPLAY SPEAKER" and complete the setup process. Once setup is complete via either 3a or 3b, you are now connected to your network and Wi-Fi.
- Page 17 Wi-Fi network as your phone is Which device would you Select Wi-Fi network like to set up? Select Wi-Fi network for your TCL speaker to use or manually enter a Wi-Fi network using. You may need to enter the Wi-Fi network's PREVIOUSLY SAVED TO AMAZON TCL speaker connected password.
- Page 18 Online Firmware Update Automatic detection and upgrade of Sound Bar software： HE LL O Ensure your Sound Bar and Subwoofer are both powered up. Ensure your Sound Bar and Subwoofer pair successfully. Ensure your Sound Bar is connected to Wi-Fi successfully (Refer to 8a and 8b.) You will see the following LED indications: UPDATE FOUND >...
- Page 19 Sound Bar Settings SL EE P The LED display on the Sound Bar gives you information about the status of the SLEEP Sound Bar Settings. NA01 > 5s VERSION EXIT WAIT FACTORY RESET EXIT...
- Page 20 Sound Bar LED Display HELLO Remote Control LED Indications Remarks *Power on/off The LED display on the Sound Bar gives HELLO START READY SLEEP STDBY you information about the status of the HDMI 1 IN HDMI 2 ARC *Input source Sound Bar.
-
Page 21: Chromecast Built-In
Works with Apple AirPlay Trademarks To control this AirPlay 2–enabled speaker, iOS 11.4 or later is required Apple, AirPlay, iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. Chromecast built-in Google and Chromecast built-in are trademarks of Google LLC. works with Hey Google Google and Chromecast built-in are trademarks of Google LLC. - Page 22 Compatible with Dolby Vision Trademarks Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012–2021 Dolby Laboratories. All rights reserved.
- Page 23 Does this Sound Bar work with any TV? What are the subwoofer LED indicator status during pairing: Yes, the Sound Bar is compatible with any TV that has one of the ports below: • Standby mode: flashes slowly. 1. HDMI supporting ARC/eARC (preferred) •...
- Page 24 Copyright © 2021 TCL. All rights reserved. TS8132 / TS813_NA_USA_QSG_V1.8...
