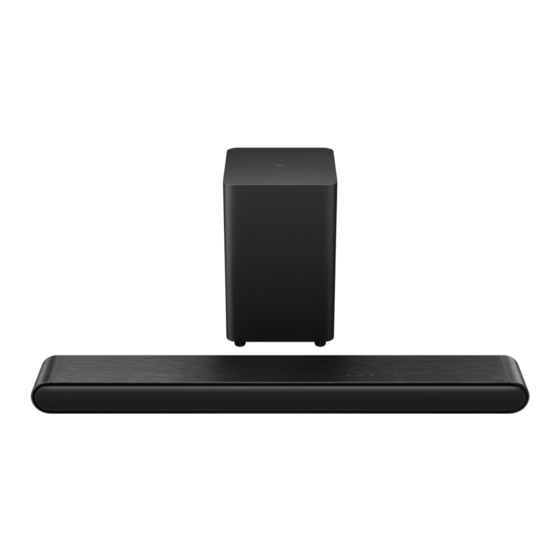

- Page 1 3.1 Channel Soundbar with Dolby Audio , DTS Virtual:X ™ ™ ® and Wireless Subwoofer S643W User Manual...
-
Page 2: Table Of Contents
Contents 1 Before you begin ...........3 2 Welcome ..............6 What’s in the box ............. 6 Overview of the Soundbar ..........8 Overview of the Wireless Subwoofer ......10 Set up your Soundbar system ........11 Position your Soundbar and Subwoofer ......11 Mount your Soundbar on the wall ........ - Page 3 4 Use your Soundbar system ........28 Use your Soundbar with the top panel or Remote Control ............28 Listen to music from your Bluetooth device ....29 Use the USB cable or device for music playback ..30 5 Specifications ............31 6 Notice ..............32 Disposal of your old product and battery ......
-
Page 4: Before You Begin
1 Before you begin • Carefully read and observe all safety instructions in the safety leaflet. • This Soundbar is intended for indoor use only. In case it accidentally gets in contact with small amounts of water, unplug immediately and use a dry cloth to remove the water. - Page 5 TCL ELECTRONICS AUSTRALIA PTY LTD bears no responsibility for accidents or damages caused by unauthorized changes, modifications or improper use of the product. User Manual can be found at www.tcl.com/au on the specific product page in the “Download” section. CAUTION...
- Page 6 • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 7: Welcome
2 Welcome Congratulations on the purchase of your new TCL Soundbar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly. - Page 8 Power cord x 2 HDMI cable Wall mount kits Warranty card Manual Manual Wall mount template...
-
Page 9: Overview Of The Soundbar
Overview of the Soundbar... - Page 10 Short press: Power On Long press: Power Off Short press: Switch input sources (HDMI-ARC/Optical/AUX/AUX VA/USB/Bluetooth) Long press: Enter Subwoofer pairing (If Subwoofer disconnected) Short press: Select Bluetooth mode Long press: Bluetooth Pairing Press to increase or decrease the volume level 5 Input Source LED Indicator HDMI-ARC: Magenta Optical: Yellow...
-
Page 11: Overview Of The Wireless Subwoofer
Overview of the wireless Subwoofer Wireless Subwoofer The subwoofer will pair automatically with Soundbar upon first use. In case of a problem, take the following steps to manually pair: 1. Press the button on the Subwoofer for 3 seconds until indicator light flashing fast beside pair button. -
Page 12: Set Up Your Soundbar System
• Make sure you use screws provided or specified by the authorized manufacturer. • TCL AUSTRALIA bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc. • Additional tools (not supplied) are required for installation. -
Page 13: Mount Your Soundbar On The Wall
< 3M Mount your Soundbar on the wall 1 Place the included wall mount template on the wall. Make sure the wall mount template is at least 5cm below the center of the TV. 2 Use a level to make sure the wall mount template is positioned accurately. - Page 14 4 Mark on the wall using each marking on the template through the mounting holes. 5 Take away the wall mount template. 6 Drill screw holes at each marking on the wall. > 50mm 688.8mm 755.2mm 7 Insert the wall anchors in the holes on the wall. 8 Insert the included screws with the brackets into the hole of the wall anchors.
- Page 15 Notes • Do not place your Soundbar in a location exposed to direct sunlight, heat, fire, or moisture. Only suitable for mounting at heights: < 200cm...
-
Page 16: Install/Replace The Remote Control Batteries
Install/replace the Remote Control batteries Warnings • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Caution 1 Open the battery compartment, remove the old batteries if necessary. 2 Place two new AAA batteries into the battery compartment with the correct polarity (+/ - ). -
Page 17: Overview Of The Remote Control
Overview of the Remote Control Short press: mute / unmute the sound Short press: select Bluetooth mode Long press: Bluetooth Pairing Short press: power on Long press: power off Short press: Switch input sources HDMI-ARC/Optical/AUX/AUX VA/USB/Bluetooth Increase volume Decrease volume Play previous music;... - Page 18 Play next music; turn to next item Play/Pause music Short press to turn on/off DTS Virtual:X Short press to turn on/off DTS TruVolume Short Press: switch to Voice Enhance Long press Voice button for 5 seconds to adjust the Voice Announment volume Short press to enter the Bass Boost Menu Long press BassBoost button to enable/disable Night mode...
-
Page 19: Connect Your Soundbar System
For TCL TV: Connect HDMI cable from the HDMI (ARC) interface on the Soundbar to the HDMI (ARC/eARC) interface on the Enable the CEC function in the settings of the TCL TV. (See TV User Manual for instructions) - Page 20 Power on the TV in sync HDMI 1(ARC/eARC) Device standby in sync HDMI 2 Device HDMI 3 TCL S643W HDMI 4 Audio System For other TV brands: Connect HDMI cable from the HDMI (ARC) interface on the Soundbar to the HDMI (ARC/eARC) interface on the Enable the CEC function in the settings of the TV.
-
Page 21: Connect With The Optical Cable
Connect with the optical cable 1 Remove the protective caps from the optical cable when necessary. 2 Connect one end of the optical cable to the optical input connector on your Soundbar and another end to the optical output connector of your TV or device. Note •... -
Page 22: Connect With The Aux Va
Connect with the AUX VA Your soundbar can connect to a Voice Assistant (VA) device through an AUX VA connection. Once connected, your soundbar will now act as the VA speaker. Features and Benefits: Voice Assistant Dedicated Input: VA is active on the •... -
Page 23: Connect With The Ir Pass-Through
Connect with the IR Pass-through If the soundbar blocks the IR receiver of the TV when placed directly in front of it. You can use the included IR pass- through cable to send IR commands to your TV using the soundbar. -
Page 24: Direction For Setting Up Your Soundbar Using An Optical Cable
To get the best possible audio experience using the optical cable: 1 Press the Home button on your TCL TV Remote. 2 Navigate to Audio option under Settings. 3 Uncheck the “TV speaker enabled” option. -
Page 25: Connect Your Soundbar To Power Supply
Connect your Soundbar to power supply 1 M a k e s u re t h a t y o u h a v e c o m p l e t e d a l l o t h e r connections before connecting the Soundbar to power supply. -
Page 26: Connect The Soundbar With Your Bluetooth Device
Pairing is successful. If you want to pair another device, please repeat step 3. • If you cannot find the model name TCL S643W on your Bluetooth device, press and hold on the Remote Control. You will see blue light flashing. Now the... - Page 27 TCL S643W...
-
Page 28: Connect Your Wireless Subwoofer To The Soundbar
Connect your wireless Subwoofer to the Soundbar When the wireless Subwoofer is connected, you can enjoy powerful deep bass sounds and a truly immersive audio experience. Auto pairing Make sure both the Soundbar and wireless Subwoofer areconnected to the power supply and are turned on. THE SUBWOOFER WILL PAIR AUTOMATICALLY WITH SOUNDBAR UPON FIRST USE. -
Page 29: Use Your Soundbar System
4 Use your Soundbar system Use your Soundbar with the top panel or Remote Control Make sure the Soundbar is properly connected to the power supply and sources. Press at the top panel of your Soundbar or Remote Control to switch to the correct source. The LED display on the Soundbar gives you information about the LED Behavior on Soundbar. -
Page 30: Listen To Music From Your Bluetooth Device
Note: After powering on your Soundbar, if there is no operation performed on either the Soundbar or Remote Control within 10 seconds, all LED indicators on the Soundbar will turn off and light up again when the operation is resumed. Tip: You can use more advanced functions on the Remote Control (see ‘Overview of the Remote... -
Page 31: Use The Usb Cable Or Device For Music Playback
Use the USB cable or device for music playback • Press play/pause button on the Remote Control to listen to/pause/ resume the music. • Press left/right button the Remote Control to skip to the previous or next track. • Press up/down button to increase or decrease the volume level. -
Page 32: Specifications
5 Specifications Product Name 3.1 Channel Soundbar with Dolby Audio, DTS Virtual:X and Wireless Subwoofer Soundbar • Power supply: AC 100-240V~50/60Hz • Power consumption: 50W • Power consumption at standby mode (after long pressing the power button): ≤ 0.5W Impedance: 8 Ω •... -
Page 33: Notice
6 Notice Disposal of your old product and battery Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Remove the disposable battery To remove the disposable batteries, see the section ‘Install/ replace the Remote Control battery’. -
Page 34: Trademarks
Trademarks Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. The Bluetooth word mark and logos are registered trademarks ® owned by Bluetooth SIG, Inc. and any use of such marks by TTE Corporation is under license. -
Page 35: Faq
7 FAQ No power • Make sure the AC power cord and AC input connector are connected properly. • Make sure there is power supply. • Make sure the Soundbar has turned on. No sound • Make sure the audio cable is connected to the Soundbar and your device. - Page 36 TCL support: Please visit www . tcl . com/au WE ARE READY TO HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUNDBAR Copyright © 2023 TCL. All rights reserved. S643W-AU_EN_UM_V2.0...
