Summary of Contents for TCL TS6100

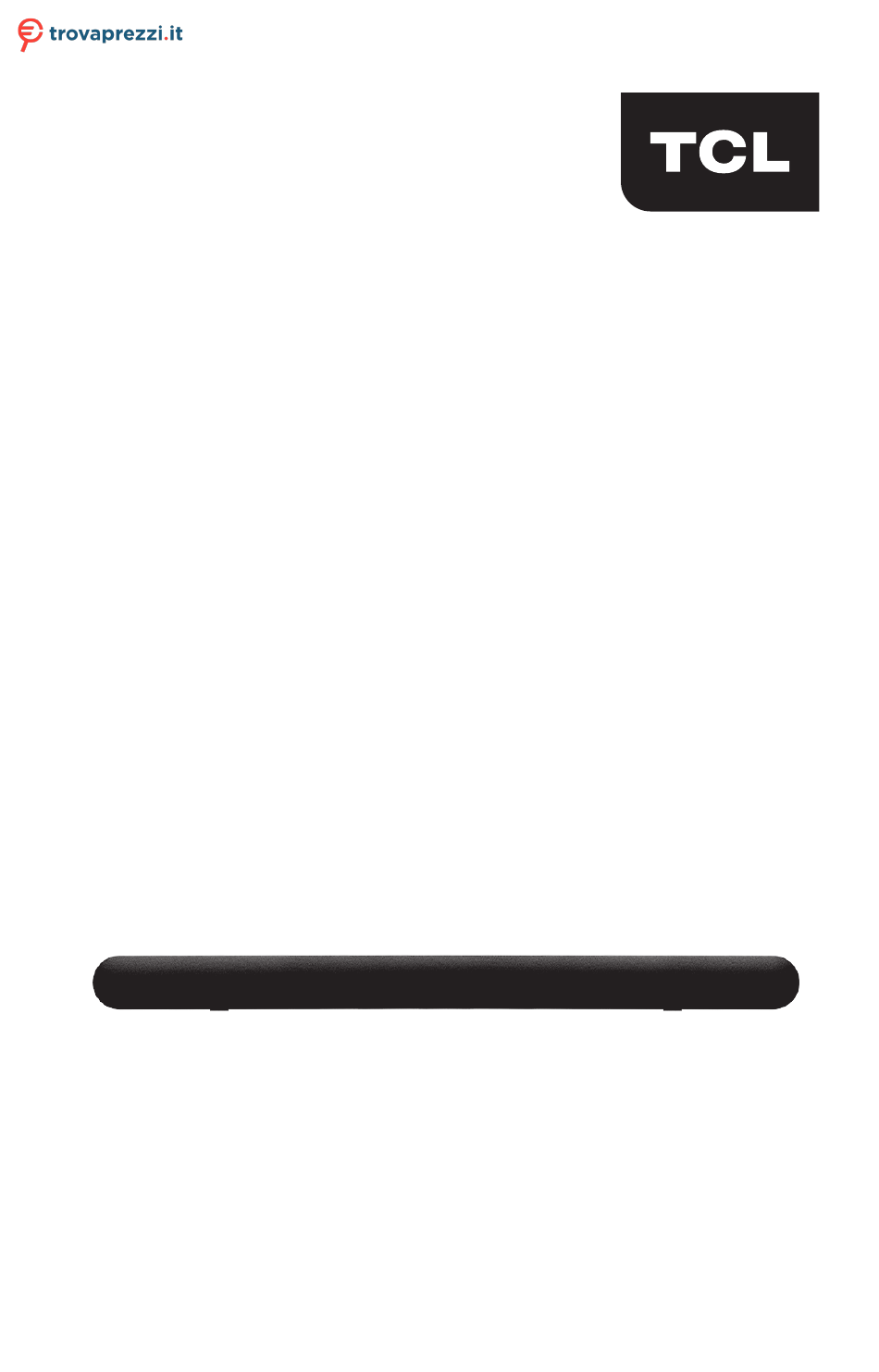

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per TCL Alto 6 TS6100 o cerca il tuo prodotto tra le migliori offerte di Home Theatre 2.0 Channel Sound Bar with Dolby Audio 6100 Series User Manual...
-
Page 2: Table Of Contents
Contents 1 Before you begin............ 2 Welcome........................What’s in the box ......... Overview of the Sound Bar ........Overview of the remote control ........Set up your Sound Bar system ......Mount your Sound Bar on the wall ....Install/replace the remote control batteries 3 Connect your Sound Bar system...... - Page 3 ....Listen to music from your Bluetooth device ........Use the USB cable or device Specifications............Notice......................Declaration of conformity ....Disposal of your old product and battery ............. Trademarks 7 FAQ ...............
- Page 4 • • • • • • • •...
-
Page 5: Welcome
2 Welcome Congratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly. - Page 6 Wall anchor x 2 AC power cord Wall mounting screw x 2 Wall mount bracket x 2 Safety instructions Safety leaflet Quick Start Guide Wall mount template...
-
Page 7: Overview Of The Sound Bar
Overview of the Sound Bar AC IN ~AC IN Press to turn the Sound Bar on or to standby mode. Press to switch the audio source among HDMI/Optical/AUX/USB/Bluetooth modes. Press to select the Bluetooth function. Press and hold to enter the pairing mode. - Page 8 Press to increase or decrease the volume level. LED indicator Red: in standby mode. Purple: in HDMI ARC mode. Green: in AUX mode. Blue: in Bluetooth mode. Yellow: in Optical mode. Cyan: in USB mode. Sound Mode LED indicator Flashing mode of LED indicators for MUSIC / MOVIE / TV. AC input power connector AUX input connector Optical input connector...
-
Page 9: Overview Of The Remote Control
Overview of the remote control Press to turn the Sound Bar on or to standby mode. Long press to reset the Sound Bar. Press to mute or unmute the sound. Press to increase or decrease the volume level. - Page 10 Play/pause/resume playback in Bluetooth/USB mode In Bluetooth mode, press and hold for 3 seconds to disconnect the Bluetooth device and enter pairing status. Press to skip to previous or next track in Bluetooth/USB mode. Press to switch the audio source among HDMI/Optical/AUX/USB/Bluetooth modes.
-
Page 11: Set Up Your Sound Bar System
Sound Bar on the wall. Make sure you use screws provided or specified by the authorized manufacturer. TCL Overseas Marketing Limited bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc. - Page 12 Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 5cm below the center of the TV. Use a level to make sure the wall mount template is positioned accurately. the wall. Mark on the wall using each marking on the template through the mounting holes.
- Page 13 Screw off the rubber cushions from the sound bar. (Reserve the rubber cushions for future use) Screw on the wall brackets to the sound bar. Insert the supplied screws into the wall anchors. Fix and tighten the screws on the wall, and please leave 4mm between the screw heads and the wall.
- Page 14 Hang the Sound Bar on the screws. Notes Check the installation location before you mount the Sound Bar on the wall (see ‘Mount your Sound Bar on the wall’ on page 10). You may consider to connect the cables first before mounting the Sound Bar on the wall.
-
Page 15: Install/Replace The Remote Control Batteries
Install/replace the remote control batteries Warnings Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Open the battery compartment, remove the old batteries if necessary. Place two new AAA batteries into the battery compartment with the correct polarity (+/-). -
Page 16: Connect Your Sound Bar System
3 Connect your Sound Bar system After you have fixed the position of the Sound Bar you can start connecting it to your TV or other devices and listen to the audio through your Sound Bar. Make sure you have muted the audio of your TV or device. - Page 17 Connect your Sound Bar to HDMI input marked (ARC) on your TCL TV. Press the Settings button on your TCL TV remote. Navigate to System options. Set T-Link on the TV to On. (This feature may be called, Anynet+, SimpLink, BRAVIA Link, EasyLink or VIERA Link*.)
-
Page 18: Connect With An Optical Cable
Connect with an optical cable Remove the protective caps from an optical cable when necessary. Connect one end of an optical cable to the optical input connector on your Sound Bar and another end to the optical output connector of your TV or device. AC IN Note In case you are not hearing any sound when using HDMI... - Page 19 To get the best possible audio experience using the optical cable: Press the Home button on your TCL TV Remote. Navigate to Audio option under Settings. Uncheck the “TV speaker enabled” option.
-
Page 20: Connect With A 3.5Mm-To-3.5Mm Audio Cable
Connect with a 3.5mm-to-3.5mm audio cable connect one end of a 3.5mm-to-3.5mm audio cable to • the AUX input connector on your Sound Bar and another end to the headphone or audio output connector on your TV or device. This will disable the sound of your TV built-in speakers;... -
Page 21: Connect Your Sound Bar To Power Supply
Connect your Sound Bar to power supply Make sure that you have completed all other connections before connecting the Sound Bar to power supply. Make sure the power supply voltage complies with your country’s safety standards (see ‘Specifications’ on page Connect one end of a supplied AC power cord to the AC input connector on your Sound Bar and another end to the power socket on the wall. -
Page 22: Connect The Sound Bar With Your Bluetooth Device
The blue LED flashes quickly. The Sound Bar is ready to pair. Power on your Bluetooth device and activate its Bluetooth function. Select TCL 6100 on the pairing list of your Bluetooth device. You hear distinct double beep sound. The blue LED remains on solidly when pairing is... - Page 23 If you cannot find the model name TCL 6100 on your Bluetooth device, press and hold on the remote control. You will see the blue LED flashes rapidly. Now the Sound Bar is entering the pairing mode. TCL 6100 To disconnect the Bluetooth function, you can:...
-
Page 24: Use Your Sound Bar System
4 Use your Sound Bar system Use your Sound Bar with the top panel or remote control Make sure the Sound Bar is properly connected to the power supply and sources. Press at the top panel of your Sound Bar or remote control to switch to the correct source. - Page 25 Note After powering on your Sound Bar, if there is no operation performed on either the Sound Bar or remote control within 10 seconds, all LED indicators on the Sound Bar will turn off and light up again when the operation is resumed.
-
Page 26: Sound Settings
Sound settings You can enjoy your movies or music with your ideal sound. Press to adjust the volume. • Press on the remote control to mute the sound. Press • again to unmute the sound. Press the EQ buttons (MOVIE/MUSIC/TV) on the remote •... -
Page 27: Listen To Music From Your Bluetooth Device
Listen to music from your Bluetooth device Make sure that your device supports A2DP and/or AVRCP. For information, check the specification of your device. Pair your Bluetooth device with the Sound Bar (see ‘Connect the Sound Bar with your Bluetooth device’ on page 22). -
Page 28: Use The Usb Cable Or Device
Use the USB cable or device Connect the USB device to the USB Type A connector on your Sound Bar. Press on the Sound Bar or remote control. until the cyan LED is on. You can now listen to music through the Sound Bar. To pause or resume music, press on the remote •... - Page 29 Operation LED indicators Listen to music. The cyan LED is on. Press to pause the The cyan LED keeps flashing music. This Sound Bar can support USB devices of up to 32GB memory and the supported file format is MP3.
-
Page 30: Specifications
5 Specifications Sound Bar Power adapter: AC~100-240V, 50/60Hz • Power consumption: 20W • Power consumption at standby mode: ≤ 0.5W • Impedance: 6 Ω • Frequency response: 150 Hz-20 kHz • Dimensions (WxHxD): 800x62x107mm • Weight: 1.8 kg • Operating temperature: 0°C - 45°C •... -
Page 31: Notice
6 Notice Declaration of conformity Hereby, TCL Overseas Marketing Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.tcl.com. Disposal of your old product and... - Page 32 This symbol means that the product contains a battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste.
-
Page 33: Trademarks
Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TTE Corporation is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. -
Page 34: Faq
7 FAQ No power Make sure the AC power cord and AC input connector are connected properly. Make sure there is power supply. Make sure the Sound Bar has turned on. No sound Make sure the audio cable is connected to the Sound Bar and your device. - Page 35 I cannot find the Bluetooth name of this Sound Bar on my Bluetooth device. Make sure the Bluetooth function is activated on your Bluetooth device. Make sure the Sound Bar has paired with your Bluetooth device.
- Page 36 TCL support: Please visit www.tcl.com WE ARE READY TO HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUND BAR Copyright © 2020 TCL. All rights reserved. TS6100_EU_EN_UM_V1.0...
