TCL Q85H Quick Start Manual

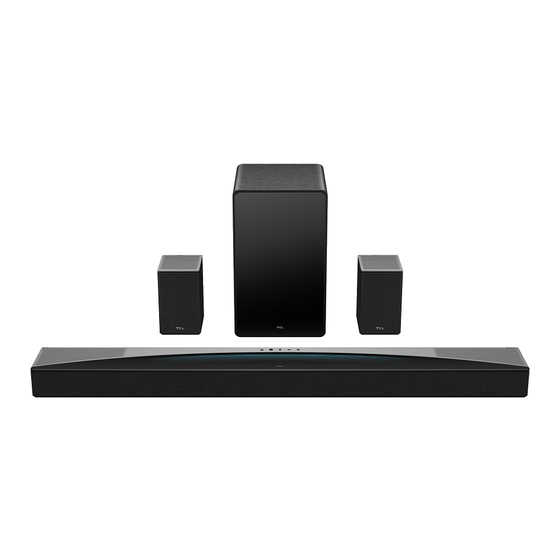

7.1.4 channel dolby atmos sound bar with wireless subwoofer and satellite speakers

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Q85H

7.1.4 Channel Dolby Atmos Sound Bar with Wireless Subwoofer

and Satellite Speakers

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the Q85H and is the answer not in the manual?

Questions and answers

Summary of Contents for TCL Q85H

Page 1 Q85H 7.1.4 Channel Dolby Atmos Sound Bar with Wireless Subwoofer and Satellite Speakers Quick Start Guide...
Page 3: Register Your Product
Register Your Product Register your TCL Sound Bar to receive the latest news on product releases, promotional offers, and more!* TEXT TO REGISTER Text a photo of the camera icon to 71403 Or register online at register.tcl.com Need help? Visit photoregister.com/help...
Page 4: What's In The Box
What’s in the box Make sure you read all the safety information before you use this product. User Manual can be found at www.tcl.com/us on the speciﬁc product page in the “Download” section. Sound Bar Subwoofer Satellite Speaker x 2...
Page 5 Overview Sound Bar AC~IN OPTICAL HDMI IN HDMI (eARC) AC input power connector USB Type A connector AC~IN OPTICAL HDMI IN HDMI (eARC) Optical input connector HDMl IN connector HDMl eARC connector Source button: Short Press: Switch input sources Volume buttons: (HDMI eARC/Optical/USB/Bluetooth/HDMI IN) Long Press: Enter subwoofer pairing or satellite speakers Press to increase or...
Page 6: Wireless Subwoofer
Overview Wireless Subwoofer THE SUBWOOFER WILL PAIR AUTOMATICALLY WITH SOUND BAR UPON THE FIRST USE. In case of a problem, take the following steps to manually pair: Press and hold the button on the Subwoofer for 3 seconds until an amber light begins flashing on the button.
Page 7 Overview Satellite speaker Pairing indicator Slowly flashing: Not paired / to be paired Fast flashing: In pairing Constant on: Connected / Paired Pairing button: Activate the pairing between the satellite speaker and the sound bar. Indicates “L” or “R”. AC~IN AC~IN AC input power connector...
Page 8 HELLO Sound Bar LED Display Sound Bar Status LED Display Status Power on HEELO Power The LED display on the Sound Bar helps to Power off STDBY sleep understand Sound Bar behavior. HDMI eARC/ARC HDMI EARC Source Optical Bluetooth HDMI IN 1 HDMI IN Bluetooth Searching mode (flashing)
Page 9: Top View
Place your Sound Bar, Subwoofer and Satellite Speakers Top View The ideal place to position the Sound Bar is Sound Bar on the table Subwoofer beside centered underneath your TV. The ideal place to position the Subwoofer is adjacent to the TV on the floor. Note: Do not place your Sound Bar in a location exposed to direct sunlight, heat, fire, or moisture.
Page 10: Wall Mount Your Sound Bar
Wall mount your Sound Bar Required tools: Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 2 inches below the center of the TV. Use a level to make sure the wall mount template is positioned accurately >...
Page 11 Wall mount your Sound Bar Required tools: Insert the wall anchors in the holes on the wall. Insert the supplied screws with the wall brackets into the hole of the wall anchors. Fix and tighten the wall bracket screws on the wall.(keep space between the screw cap and the brackets) Screw off the rubber cushion from the bottom...
Page 12 Install or replace the remote batteries Battery type: 1.5V AAA battery x 2 Use the Remote Short Press: Power on/sleep Long Press: Power off Short Press: Mute/Unmute the sound Short Press: Switch input sources Long Press: Bluetooth Pairing HDMI eARC/Optical/USB/Bluetooth/HDMI IN Battery CAUTION &...
Page 13: Connect To Your Tv
HDMI CEC the TV (listed in order that we recommend): HDMI eARC (refer to 7a), and Optical (refer to 7b). If you have a TCL or Roku TV ® , simply plug in the HDMI cable to the eARC/ARC ports and...
Page 14 HDMI 1 Auto Standby HDMI 2 HDMI 3 HDMI 4 (eARC/ARC) Enable CEC function on TCL TV. TCL Q85H Connect HDMI cable from the HDMI (eARC) interface on the Sound Bar to the HDMI (eARC/ARC) interface on the TV. Enable the CEC function in the settings of the TCL TV.
Page 15 Optical Connect the Sound Bar to the TV with an Optical cable. Connect the Sound Bar to the power supply with the included power cord. Warning: Do not bend or kink the optical cable (SPDIF) as it AC~IN is fragile and can easily get damaged and broken. AC~IN OPTICAL HDMI IN...
Page 16 > The Sound Bar is ready to pair. Power on your Bluetooth device and activate its Bluetooth function. Select TCL Q85H. > You will see LED display shows “CONNECTED”. > Pairing is successful. If you want to pair another device, please repeat step 3.
Page 17: Other Connections
Other connections - USB Supported audio ﬁles: MP3, WMA, WAV, FLAC. USB format: FAT and FAT 32. AC~IN OPTICAL HDMI IN HDMI (eARC)
Page 18 (eARC/ARC) Internal Speaker Note: Wired Headphone The message displayed may differ with the TV model. Bluetooth This function is compatible with some TCL TVs. Optical The operation methods for different televisions may vary. External Subwoofer Wired headphone+Internal speaker AC~IN HDMI (eARC)
Page 19: How It Works
What is AI Sonic-Adaptation? AI Sonic-Adaptation AI Sonic-Adaptation is a Room Calibration Technology developed by TCL Audio Lab. To use this function, you need to download TCL Home App and follow the instructions. Before AI Sonic-Adaptation After AI Sonic-Adaptation Speaker distance, sound pressure level, Speaker distance, sound pressure level, and frequency response are all uneven.
Page 20 TCL-HOME app. VX.X.X_XXXXXX Device name TCL Q85H Updated content Note: The message displayed may differ. Update Do not exit the TCL-HOME app during the Manual rmware update (1) update process. TCL Q85H Update now Remove device Firmware update Firmware update Firmware update Updating...
Page 21 Trademarks Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/or registered trademarks of Roku, Inc. This product is Roku TV Ready-supported in the United States and Canada. Countries are subject to change. For the most current list of countries in which this product is Roku TV Ready-supported, please email rokutvready@roku.com.
Page 22 Trademarks Apple, AirPlay, Apple Home, and Apple TV are trademarks of Apple Inc., registered in the U.S. and other countries and regions. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc.
Page 23: Important Safety Instructions
User Manual can be found at www.tcl.com/us on the speciﬁc product page in the “Download” section. • The user must maintain a minimum distance of 20CM from the device at all time.
Page 24: Consignes De Sécurité Importantes
ﬁche sont endommagés, si un liquide a été renversé ou si des objets sont tombés dans l'appareil, TCL North America décline toute responsabilité en cas d'accidents ou de dommages causés par des si l'appareil a été exposé à la pluie ou à l'humidité, s'il ne fonctionne pas normalement ou s'il est tombé.
