TCL TS6110 Quick Start Manual

2.1 channel sound bar with dolby audio & wireless subwoofer
Hide thumbs Also See for TS6110:

Advertisement

Quick Links

Download this manual

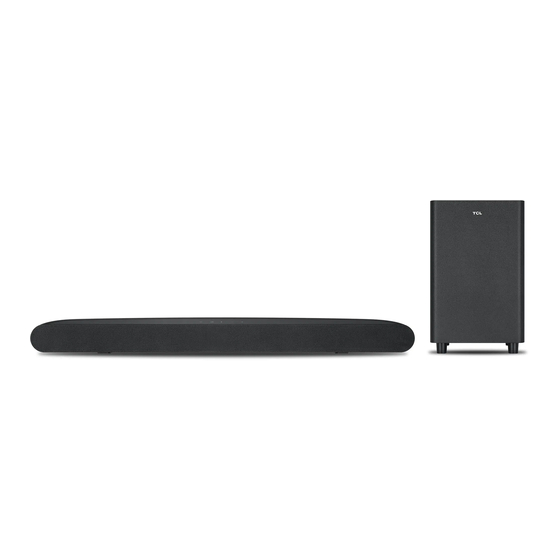

TCL TS6110
2.1 Channel Sound Bar with Dolby Audio & Wireless Subwoofer
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS6110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TCL TS6110

Summary of Contents for TCL TS6110

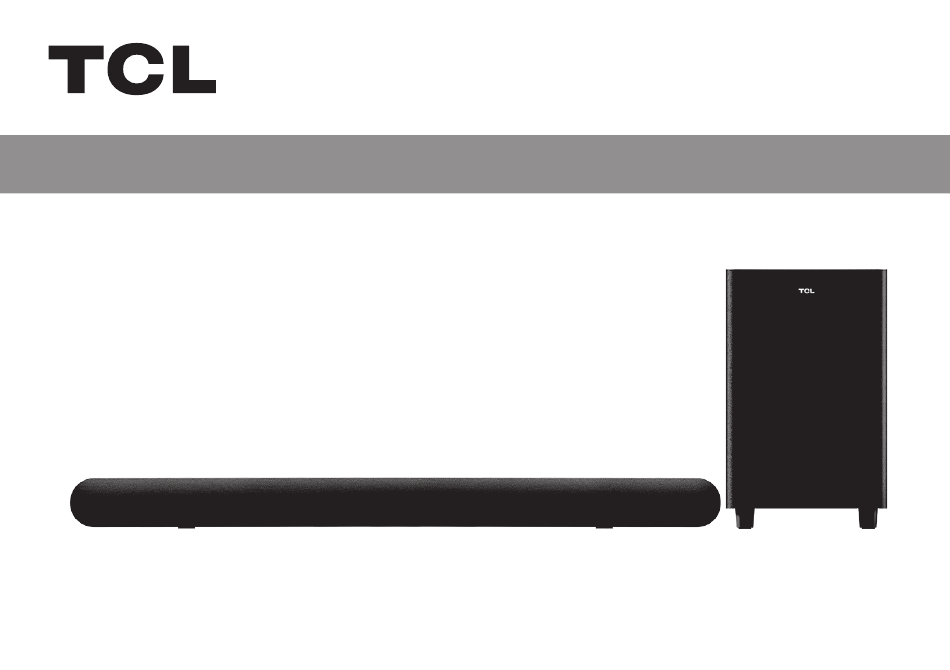

  • Page 1 TCL TS6110 2.1 Channel Sound Bar with Dolby Audio & Wireless Subwoofer Quick Start Guide...

  • Page 2: What's In The Box

    What's in the box Make sure you read all the safety information before you use this product. Sound Bar main unit Subwoofer AC power cord x 2 HDMI cable AAA battery x 2 Wall mount bracket x 2 Remote control User Manual Wall anchor x 2...
  • Page 3 Overview Sound Bar main unit Source button: Volume buttons: Press to increase Press to switch the audio source OPT/ or decrease the among HDMI/ AUX/USB/BT modes. volume level. Power button: Bluetooth button: Press to select the Bluetooth source. Short press to power Press and hold to enter pairing mode.
  • Page 4 AC IN AC IN Overview AC IN AC input power connector...

  • Page 5: Wall Mount Your Sound Bar

    Place your Sound Bar and Subwoofer < 3m The ideal place to position the Sound Bar is centered underneath your TV. For the Subwoofer working correctly, it should be less than 3 meters from the Sound Bar. Wall mount your Sound Bar Required tools: >...
  • Page 6 Wall mount your Sound Bar Required tools: • Insert the wall anchors in the holes on the wall. • Insert the supplied screws into the hole of the wall anchors. • Fix and tighten the wall bracket screws on the wall, but leave a little space for hanging the brackets.
  • Page 7 Wall mount your Sound Bar Required tools: • Unscrew the rubber cushions from the bottom of the sound bar and set them aside for potential use in the future. • Attach the included wall bracket mounts to the sound bar in the same holes the rubber cushions were removed from.

  • Page 8: Connect To Your Tv

    Connect to your TV HDMI CEC There are 3 ways to connect your sound bar to the TV (listed in order that we recommend): HDMI ARC (refer to 4a), Optical (refer to 4b), and AUX (refer to 4c) HDMI-ARC AC IN Connect the Sound Bar with your TV through the supplied HDMI cable.
  • Page 9 Connect power cord. T-Link Picture T-Link Enable the T-Link function in the settings of the System TCL TV. Sound More settings Note: CEC function naming may differ by TV manuafacturer. This feature may be called T-Link, Anynet+, SimpLink, BRAVIA Link, EasyLink or VIERA Link. Please see your TV's user manual for more information.
  • Page 10 Optical Connect the Sound Bar with your TV through the Optical cable (not supplied). Connect the Sound Bar and the subwoofer to the power supply with the supplied power cords. AC IN AC IN...
  • Page 11 Connect the Sound Bar with your TV through AUX cable (not supplied). Connect the Sound Bar and the subwoofer to the power supply with the supplied power cords. AC IN AC IN...

  • Page 12: Using The Remote

    Install or replace the remote batteries Battery type: 1.5V AAA Alkaline battery x 2 Using the Remote Short press: Power off Mute/Unmute Long Press: Factory default Volume+/- Play/pause/resume playback in Bluetooth/USB mode Next in Bluetooth/USB mode Previous in Bluetooth/USB mode Press and hold to activate the pairing function in Bluetooth mode or disconnect the paired device.
  • Page 13 > The Sound Bar is ready to pair. 4. Power on your Bluetooth device and activate its Bluetooth function. 5. Select TCL TS6110. > You hear a sound signal. > Pairing is successful. 6. If you want to re-pair with another device,...
  • Page 14 Sound Bar LED Display The LED display on the Sound Bar gives you information about the status of the Sound Bar status LED Indications Sound Bar. In standby mode In HDMI ARC mode Purple In OPT mode Yellow In AUX mode Green In USB mode Cyan...
  • Page 15 Does this Sound Bar work with any TV? What does the LED indicator on the subwoofer indicate during pairing? Yes, the Sound Bar is compatible with any TV that has one of the ports below: • Standby mode: flashes slowly. 1.
  • Page 16 TCL Electronics Australia Pty Ltd. ABN 83 111 032 896 Telephone:1300 738 149 service.au@tcl.com www.tcl.com/au TCL Electronics New Zealand Pty Ltd. NZBN 9429043411917 Telephone: 0800 449 750 service.nz@tcl.com www.tclelectronics.co.nz Copyright © 2021 TCL. All rights reserved. TS6110_AU_QSG_V0.6...
