HIKVISION DS-K1A802 Series Quick Start Manual

DS-K1A802 Series
Fingerprint Time Attendance Terminal
Quick Start Guide
UD14846B
©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software embodied in the
Product is governed by the user license agreement covering that Product.
About this Manual
This Manual is subject to domestic and international copyright protection. Hangzhou
Hikvision Digital Technology Co., Ltd. ("Hikvision") reserves all rights to this manual.
This manual cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and are
registered trademarks or the subject of applications for the same by Hikvision and/or
its affiliates. Other trademarks mentioned in this manual are the properties of their
respective owners. No right of license is given to use such trademarks without express
permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS",
WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD
PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR
AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS
PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN
CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL
BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES
FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING
FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF
REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN
YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR
USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To
protect data, the development of Hikvision devices incorporates privacy by design
principles. For example, for device with facial recognition features, biometrics data is
stored in your device with encryption method; for fingerprint device, only fingerprint
template will be saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in
accordance with the applicable data protection laws and regulations, including
without limitation, conducting security controls to safeguard personal data, such as,
implementing reasonable administrative and physical security controls, conduct
periodic reviews and assessments of the effectiveness of your security controls.
1

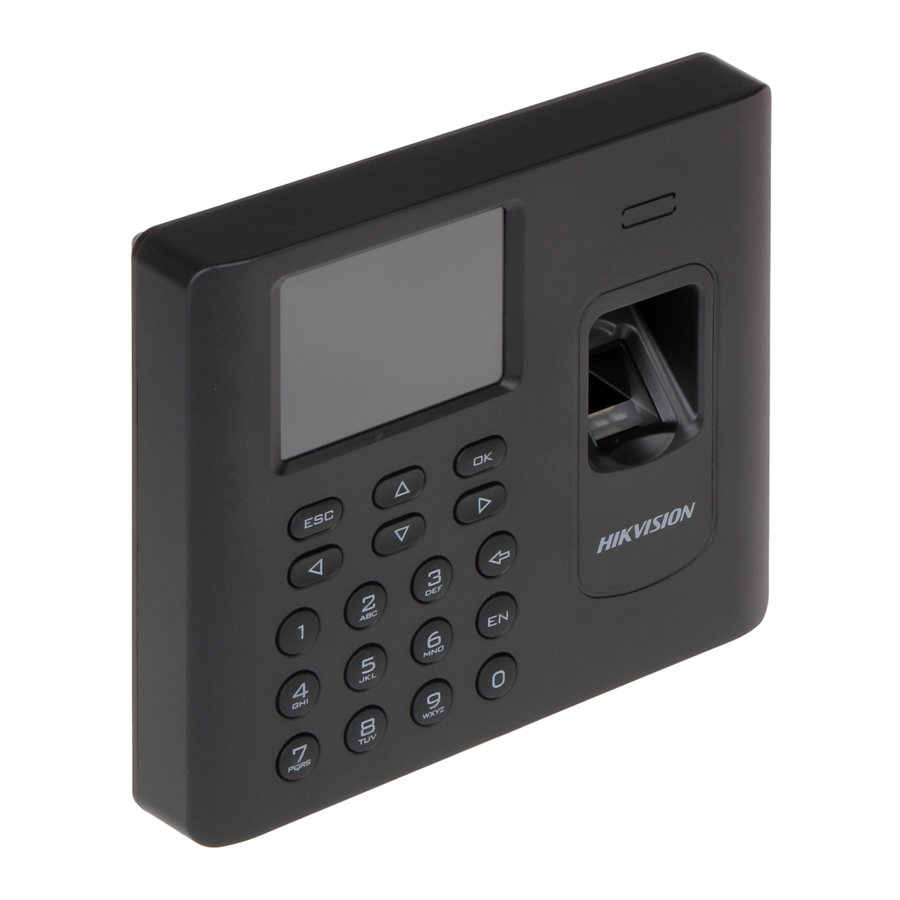

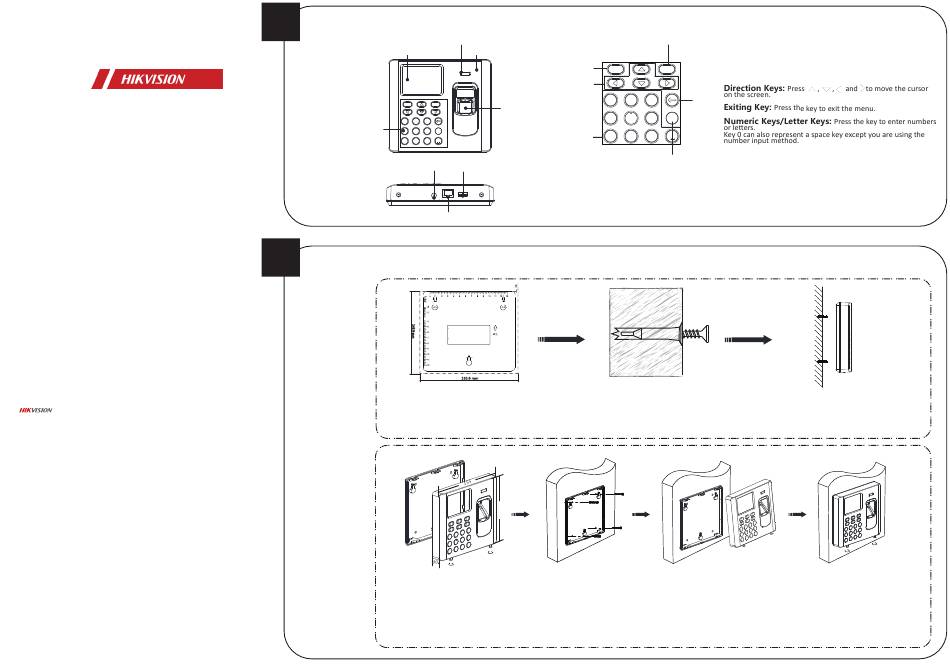

Appearance
2.8-inch
Loudspeaker
LCD Display Screen
Front View
ESC OK
2 3
1
ABC DEF
Keypad
4 5 6 EN
GHI JKL MNO
7 8 9 0
PQRS TUV WXYZ
12V Power Interface USB Interface
Bottom View
Ethernet Port
2
Installation
Hole 1
Paste the template on the required place,. Drill screw and cable
holes according to the template.
Hole 1: Wall Mounting Screw Hole
Method 1:
Wall Mounting
102010858
1. Drill holes on the wall or other places
according to the mounting template. (Supplied)
Note: The length and width will be 2 to 3 mm
smaller than the actual device's.
Method 2:
Wall Mounting
with
Mounting Plate
Clockwise Rotation
1. Remove the two screws at the
bottom of the front cover and
remove the back cover.
Front Cover
Exiting Key
ESC
Direction
Keys
2
1
Fingerprint
ABC
Reading Module
4 5
GHI JKL
Numeric Keys/
7 8
Letter Keys PQRS TUV
Hole 1
Mounting Template
UP
Hole 1
165.0 mm
2. Insert the screw sockets of the setscrews in the drilled
holes.
3. Fix and fasten the screws in the sockets on the wall or
other places. (You should reserve 5.2mm to 5.5 mm for
the hanging the device when fix and fasten the screws.)
140
Clockwise Rotation
2. Align the back cover on the level on the
wall or other places.
3. Drill through the holes at the four
corners of the back cover.
4. Insert the screw sockets of the setscrews
in the drilled holes.
Keypad Descriptions
OK Key: Press the key and confirm operations. Hold the key
OK Key
for 2 s to enter the login interface.
Deleting Key: Press the key to delete the entered letter or
number.
OK If the device supports connecting lithium battery, long press
the key to power off the device.
Deleting
3
DEF Key
6
EN
MNO
9 0
WXYZ
Editing Key: Press the key to enter the editing status.
Editing Key
You can shift among numbers/lowercases, numbers/uppercases
and symbols.
Notes:
1. The pictures here are for reference only. Some models do not support
card swiping function. For details, refer to the actual products.
2. If you enable the attendance status function, the OK key, the direction
key, and the exiting key can be the shortcut key of the attendance status.
4. Align the three holes on the device plate
with the fixed screws and hang the device
on the wall.
5. Fasten the screws in the 6. Align the front cover to the back
sockets to fix the back cover on cover and buckle them together.
the wall or other places. 7. Fasten the screws at the bottom
of the front cover.
Anticlockwise Rotation
Anticlockwise Rotation
