- Page 1 DS-K1801 Series Card Reader User Manual UD05259B-A...
- Page 2 ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
-
Page 4: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Safety Instruction
purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. product documentation specific battery... - Page 6 Warnings All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. Please use the power adapter, which is provided by normal company. The power consumption cannot be less than the required value.
- Page 7 The device cover for indoor use shall be kept from rain and moisture. Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger). Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.
-
Page 8: Chapter 1 Preventive And Cautionary Tips
Chapter 1 Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below. If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. If the distance is longer than 100m, you are advised to power the card reader by external 12V (range: -%10 ~ +%10) DC power supply, which is nonswitched and linear. -
Page 9: Front View

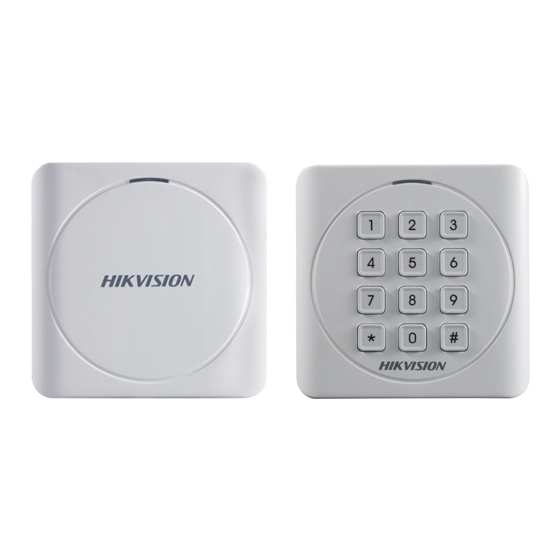

Chapter 2 Introduction 2.1 Front View The front view of DS-K1801 series card reader is shown below: DS-K1801M/DS-K1801E DS-K1801MK/DS-K1801EK 2.2 Side View and Rear View The side view of card reader is shown below: Side View Rear View... -
Page 10: Chapter 3 Wiring And Installation
Chapter 3 Wiring and Installation 3.1 Terminal Description The description of 8 cables is shown below. Table 3-1 Description of Cable Color Description PWR (+12 VDC) Black Purple Beep Control Brown Orange Green Wiegand W0 White Wiegand W1 Blue Wiegand 26/ 34 3.2 Wiring Cables Purpose: Wire the cables between controller and card reader, thus to... -
Page 11: Installing Card Reader
shown below. Controller Controller Card Reader Card Reader eader Card Reader Figure 3-1 Wiring for Wiegand Communication Mode 3.3 Installing Card Reader Steps: Fix the plate on the wall with screws(A and B) or other place with flat surface. Connect the cables between controller and card reader. -
Page 12: Chapter 4 Sound Prompt And Indicator
details, refer to 3.2 Wiring Cables. Buckle the card reader up to the plate with aligning C point and the corresponded slot on the upper side of card reader . Press the lower side of the card reader to fasten the card reader on D point of the plate. - Page 13 Sound Prompt Description card is valid. The operation of pressing keys or swiping Three slow beeps card is invalid. Prompt for tamper-proof alarm. Rapidly continuous beeps Prompt for buzzer alarm. Slowly continuous The card reader is unencrypted. beeps Table 4-2 Description of LED Indicator LED Indicator Status Description Green (blink for 1...
