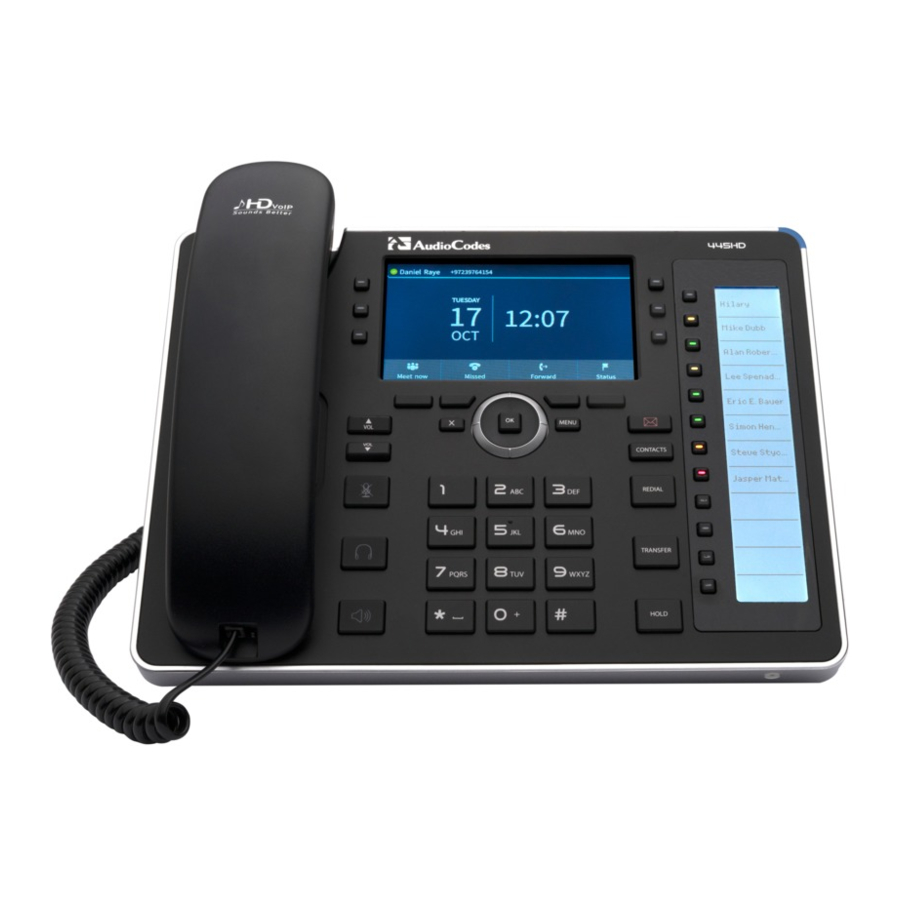

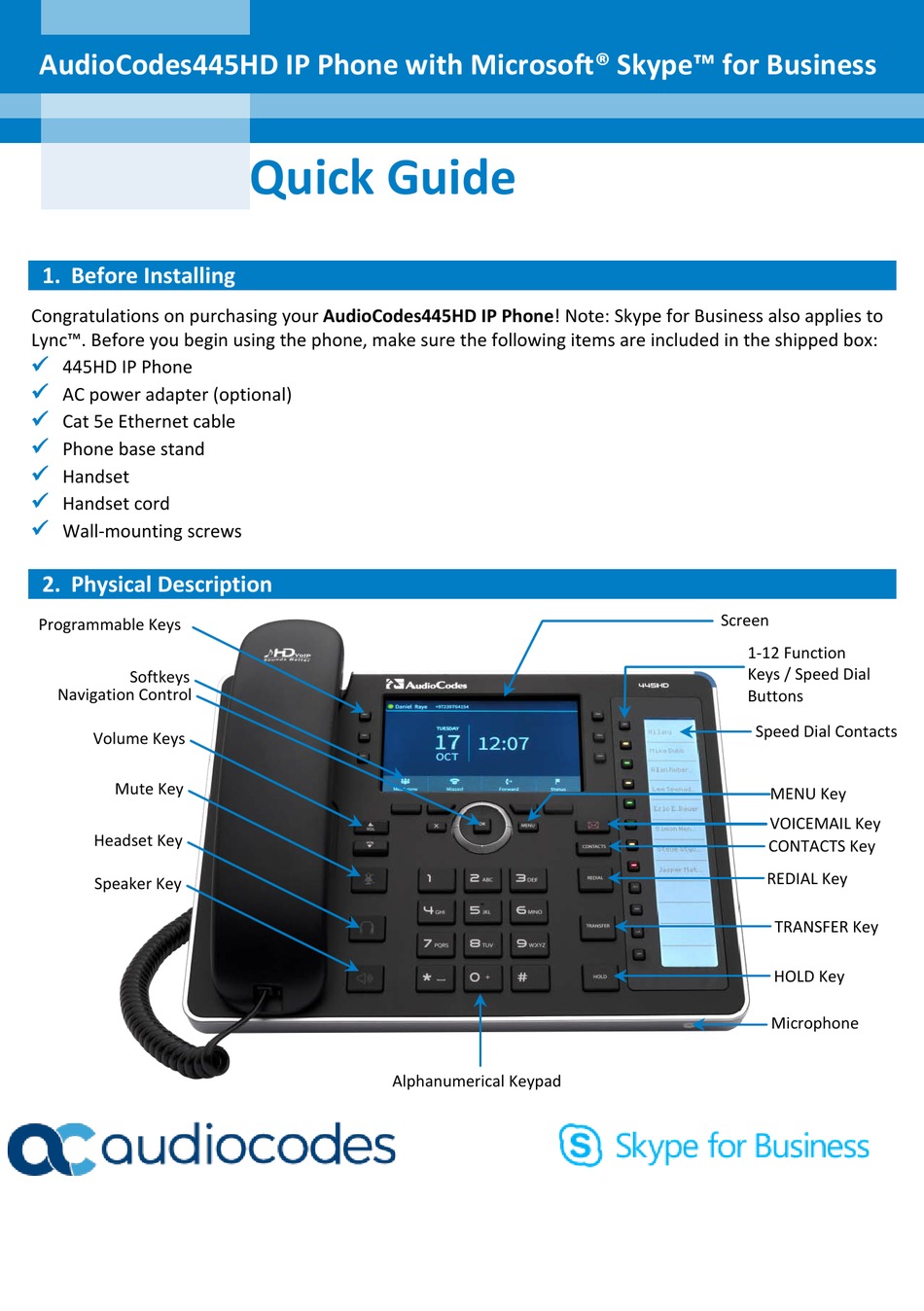

AudioCodes445HD IP Phone with Microsoft® Skype™ for Business
1. Before Installing
Congratulations on purchasing your AudioCodes445HD IP Phone! Note: Skype for Business also applies to
Lync™. Before you begin using the phone, make sure the following items are included in the shipped box:
445HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Phone base stand
Handset
Handset cord
Wall-mounting screws
2. Physical Description
Programmable Keys
Softkeys
Navigation Control
Volume Keys
Mute Key
Headset Key
Speaker Key
Quick Guide
Alphanumerical Keypad
Screen
1-12 Function
Keys / Speed Dial
Buttons
Speed Dial Contacts
MENU Key
VOICEMAIL Key
CONTACTS Key
REDIAL Key
TRANSFER Key
HOLD Key
Microphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 445HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes 445HD

Summary of Contents for AudioCodes 445HD

  • Page 1 Congratulations on purchasing your AudioCodes445HD IP Phone! Note: Skype for Business also applies to Lync™. Before you begin using the phone, make sure the following items are included in the shipped box:  445HD IP Phone  AC power adapter (optional) ...

  • Page 2: Cabling The Phone

    3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at www.audiocodes.com/library.  To cable the phone: Connect the short, straight end of the phone cord to the handset and the longer straight end of the cord to the handset jack on the phone.

  • Page 3: Attaching Stand To Phone

    5. Signing in  To sign in with the Skype for Business client, see the 445HD IP Phone User's Manual.  To sign in with your PIN: Press the Sign insoftkey(when the phone is offline).

  • Page 4: Changing Your Presence Status

    6. Changing your Presence Status Presence  To change your presence: Press the Statussoftkey (idle screen mode), scroll down to the required presence, and then press the Selectsoftkey.  To set Skype for Business server to automatically update presence: Press the Statussoftkey (idle screen mode), and then select Reset. 7.
  • Page 5 9. Enabling / Disabling Wi-Fi Capabilities Setting Wi-Fi to On provides the following options in the phone’s Settings >Wi-Fi menu: On/Off option – to enable / disable Wi-Fi  Connected Network if already connected  List of all available networks ...

  • Page 6: Supported Authentication Methods

    10. Configuring Wi-Fi Network Parameters Users can configure a new Wi-Fi connection using one of two options: By choosing one of the available networks from the list of available connections provided -or-  By setting another network ‘manually’  11. Supported Authentication Methods Following are the authentication methods supported: Open, no password ...

  • Page 7: Configuring Bluetooth

    12. Status The Device Status>Wi-Fi screen provides the following basic information: Network name  Authentication method  Note: • An icon indicating Wi-Fi signal strength is also displayed, on the screen’s upper bar. select the icon for the Wi-Fi Network Info screen to open. •...
  • Page 8 In the Administration screen, select the Bluetooth Settings option. In the Bluetooth Settings screen that opens, select the Bluetooth Scan option. View the indication that the system has started to automatically ‘scan’ if there are devices that are NOT PAIRED. Wait for the scan to finish.
  • Page 9 Select one of the Bluetooth devices listed, let it enter ‘pair mode’ and then click the Pairsoftkey; once paired successfully, click the Connectsoftkey to connect the remote device. Note: The system does not start scanning automatically if there are PAIRED devices in the list; to scan ‘manually’, press the Scan key in the uppermost right corner of the screen.
  • Page 10 Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. We, AudioCodes Ltd., 1 Hayarden St Airport City Lod Israel, declare under our sole • responsibility that the 445HD IP phone complies with Part 15 of FCC CFR47 Rules.
  • Page 11 Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions.
