Haworth Upside Assembly Instructions Manual

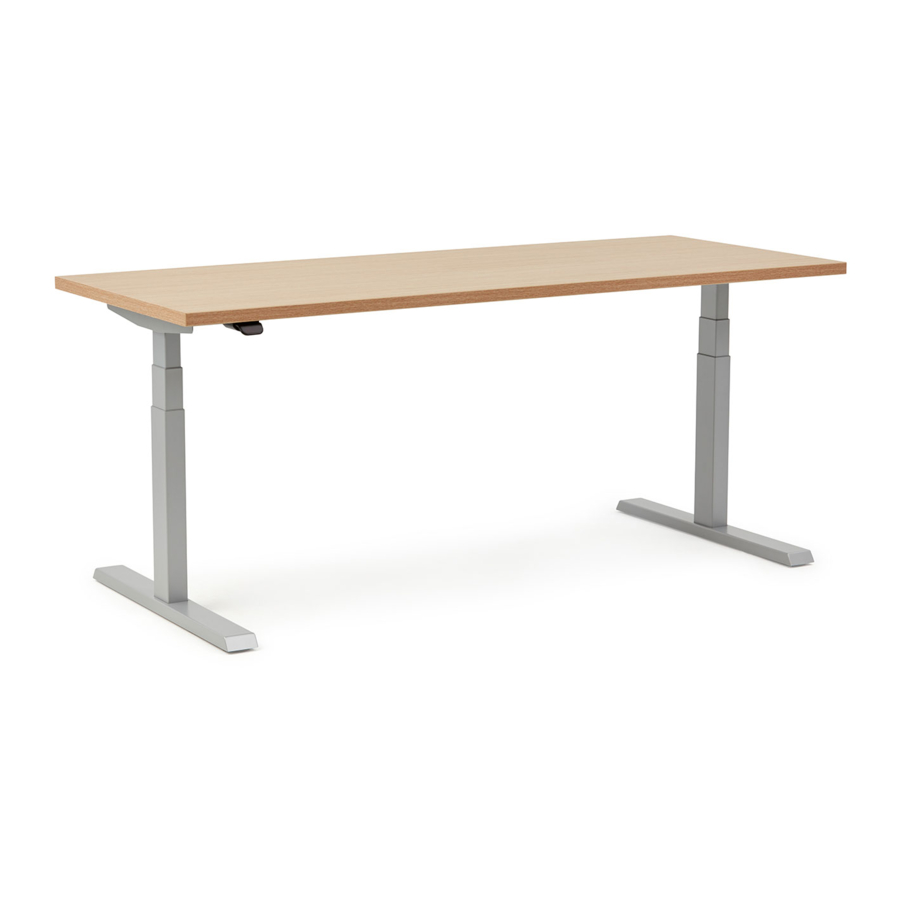

Sit-to-stand desk
Hide thumbs Also See for Upside:

Advertisement

Quick Links

Download this manual

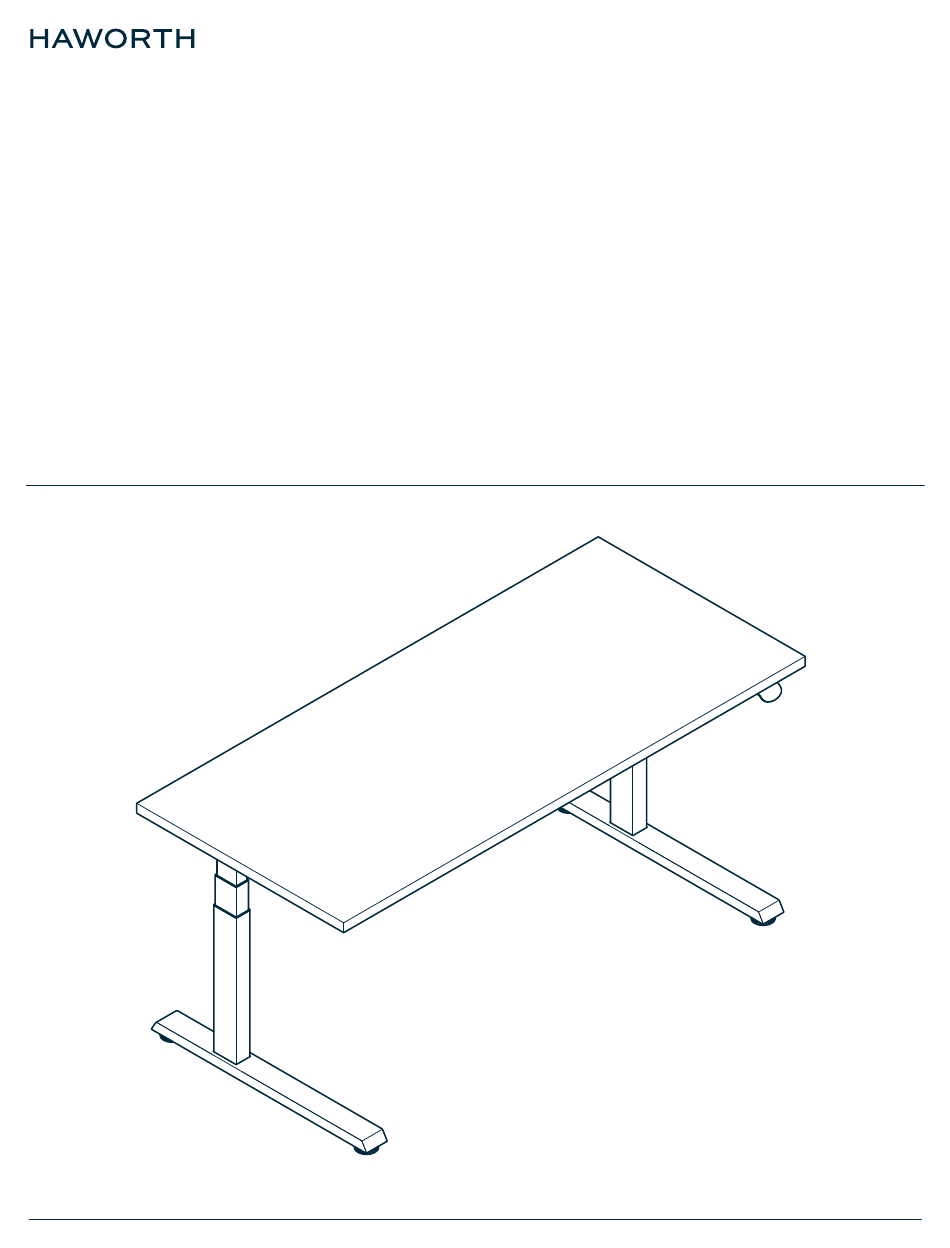

Upside
Assembly Instructions
Congratulations on your
purchase of a new Upside
Sit-to-Stand Desk!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to put some movement into your day?
We know you want to get up and running as soon as possible, but
before you dive right into setting up your desk, be sure to:
1. Grab a friend to help you with the lifting. They can also help you
hold parts in place during assembly to make things a little easier.
2. Make sure you have all your parts and hardware, and gather the
necessary tools and safety equipment.
3. Follow all the steps and synchronize your desk before using it.
That's it! Once you've got your desk assembled and synchronized,
you'll be ready to enjoy the freedom to change position as you work
anytime you want.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Upside and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haworth Upside

Summary of Contents for Haworth Upside

  • Page 1 That's it! Once you've got your desk assembled and synchronized, you'll be ready to enjoy the freedom to change position as you work Sit-to-Stand Desk! anytime you want. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...

  • Page 2: Important Safety Instructions

    9. Connect this furnishing to a properly grounded outlet only. See grounding instructions. Figure 1 Electrical Rating 120V, 60Hz, 6.25A for Upside Standard 2 leg desks Grounded 120V, 60Hz, 6A for Upside Value 2 leg desks Outlet Grounded...
  • Page 3 Upside Sit-to-Stand Desk Assembly Instructions Tools Required Optional: For caster installation only. 1/8” 9/16” Drill Bit Assembly Overview S200 S200 S201 S201 Scale 1 : 1 S206 (S-90) M6 X 8mm Set Screw (S209) M6 X 14mm Button Head S202...
  • Page 4 Upside Sit-to-Stand Desk Assembly Instructions (A) Desk Top (B) End Brackets (C) Paddle Handset (D) Leg Column (E) Foot (F) Control Box (G) Power Cord (H) Frame and (H1) Rails (J) Motor Extension (K) Cable Clips - Qty. 10 Cable...
  • Page 5 Upside Sit-to-Stand Desk Assembly Instructions Pull frame (H) off rails (H1) as shown Customer Service: 800 426 8562 E.C.O. No 245-650 Part No 6100-0167 Rev 1 Page 5 of 20...
  • Page 6 Upside Sit-to-Stand Desk Assembly Instructions Attach column (D) to frame (H) - Slightly lift column to align holes LOOSE TIGHT Important Install screws (S200) 4 Qty. LOOSELY (S200) M6 X 10mm Button Head M6*10 Machine Screws qty 12pcs S200 4mm Allen...
  • Page 7 Upside Sit-to-Stand Desk Assembly Instructions Attach bracket (B) to column (D) - Tilt column (D) and frame (H) slightly to align holes LOOSE TIGHT Important Install screws (S200) LOOSELY 2 Qty. (S200) M6 X 10mm Button Head M6*10 Machine Screws...
  • Page 8 Upside Sit-to-Stand Desk Assembly Instructions Tighten all 6 screws (S200) TIGHTEN TIGHTEN 6 Qty. S200 (S200) M6 X 10mm Button Head Important TIGHTEN all 6 screws (S200) 4mm Allen Wrench TIGHTEN S200 TIGHTEN TIGHTEN Repeat for other side and tighten all 6 screws (S200) TIGHTEN 6 Qty.
  • Page 9 Upside Sit-to-Stand Desk Assembly Instructions Slide rails (H1) and frame (H) together LONG TAB Important Install rails (H1) as shown with slots facing each other and long tab on the bottom Customer Service: 800 426 8562 E.C.O. No 245-650 Part No 6100-0167...
  • Page 10 Upside Sit-to-Stand Desk Assembly Instructions Repeat step 8 for other side and slide frame (H) onto rails (H1) Customer Service: 800 426 8562 E.C.O. No 245-650 Part No 6100-0167 Rev 1 Page 10 of 20...
  • Page 11 Upside Sit-to-Stand Desk Assembly Instructions Attach frame (H) to desk top (A) - Align holes in brackets (B) with holes in desk top (A) 6 Qty. (S201) M5 X 20mm Truss Head Screw ST5*20 Wood Screws qty 10pcs S201 NOTE: Holes towards the front.
  • Page 12 Upside Sit-to-Stand Desk Assembly Instructions Drilling may be required to start screws (S201) NOTE: You may need to drill 1/4” deep holes to start the screws. 4 Qty. 1/4” Deep (S201) M5 X 20mm Truss Head Screw 1/8” Drill Bit...
  • Page 13 Upside Sit-to-Stand Desk Assembly Instructions Install 8 set screws (S-90) as shown S-90 3mm Allen 8 Qty. Wrench (S-90) M6 X 8mm Set Screw M6*8 Set Screws qty 8pcs S-90 3mm Allen Wrench Important Make sure set screw (S-90) NOTE: Center rails (H1) engage rails (H1).
  • Page 14 Upside Sit-to-Stand Desk Assembly Instructions CASTER INSTALLATION - OPTIONAL Insert casters (D2) and tighten with wrench as shown Remove foot pads (D1) as shown NOTE: Casters are optional and ordered separately. Non-Locking Caster 9/16” Wrench Locking Caster Customer Service: 800 426 8562 E.C.O.
  • Page 15 Upside Sit-to-Stand Desk Assembly Instructions Plug cable (D) into control box (F) as shown Install control box (F) as shown S202 2 Qty. (S202) M5 X 16mm Truss Head Screw S202 ST5*16 Wood Screws qty 2pcs Important Make sure control box (F) NOTE: For frame (H) less than 46 inches wide is firmly attached to the...
  • Page 16 Upside Sit-to-Stand Desk Assembly Instructions Plug motor extension cable (J) into control box (F) and column (D) as shown Plug power cable (G) into control box (F) as shown Customer Service: 800 426 8562 E.C.O. No 245-650 Part No 6100-0167...
  • Page 17 Upside Sit-to-Stand Desk Assembly Instructions Install paddle handset (C) with hand screwdriver ONLY Screwdriver NOTE: Paddle screw (S206) must be installed straight and fully seated. Crooked or partial installation of screws (S206) may interfere with the 2 Qty paddle (C) performance (both standard and...
  • Page 18 Upside Sit-to-Stand Desk Assembly Instructions With a helper, flip desk onto its feet DO NOT USE DESK UNTIL ALL STEPS AND SYNCHRONIZATION HAVE BEEN COMPLETED STOP! FLIP DESK ONTO FEET Level desk as shown STOP! DO NOT USE DESK UNTIL...
  • Page 19 Upside Sit-to-Stand Desk Assembly Instructions SYNCHRONIZE DESK Lower desk all the way down using paddle handset (C) Lower desk all the way down and Important release paddle Prior to first use, synchronize the motors in the columns (D) - If table is already at lowest position skip to step 26.
  • Page 20 Upside Sit-to-Stand Desk Assembly Instructions SYNCHRONIZATION INTERVALS Be sure to synchronize your desk as noted below to keep it calibrated and functioning properly. 1) Before first use 2) After any cables/cords are disconnected/reconnected or after servicing any component (swapping out paddles, disconnecting/reconnecting the cables/cords, etc.)
