Summary of Contents for Vestil EHE-2

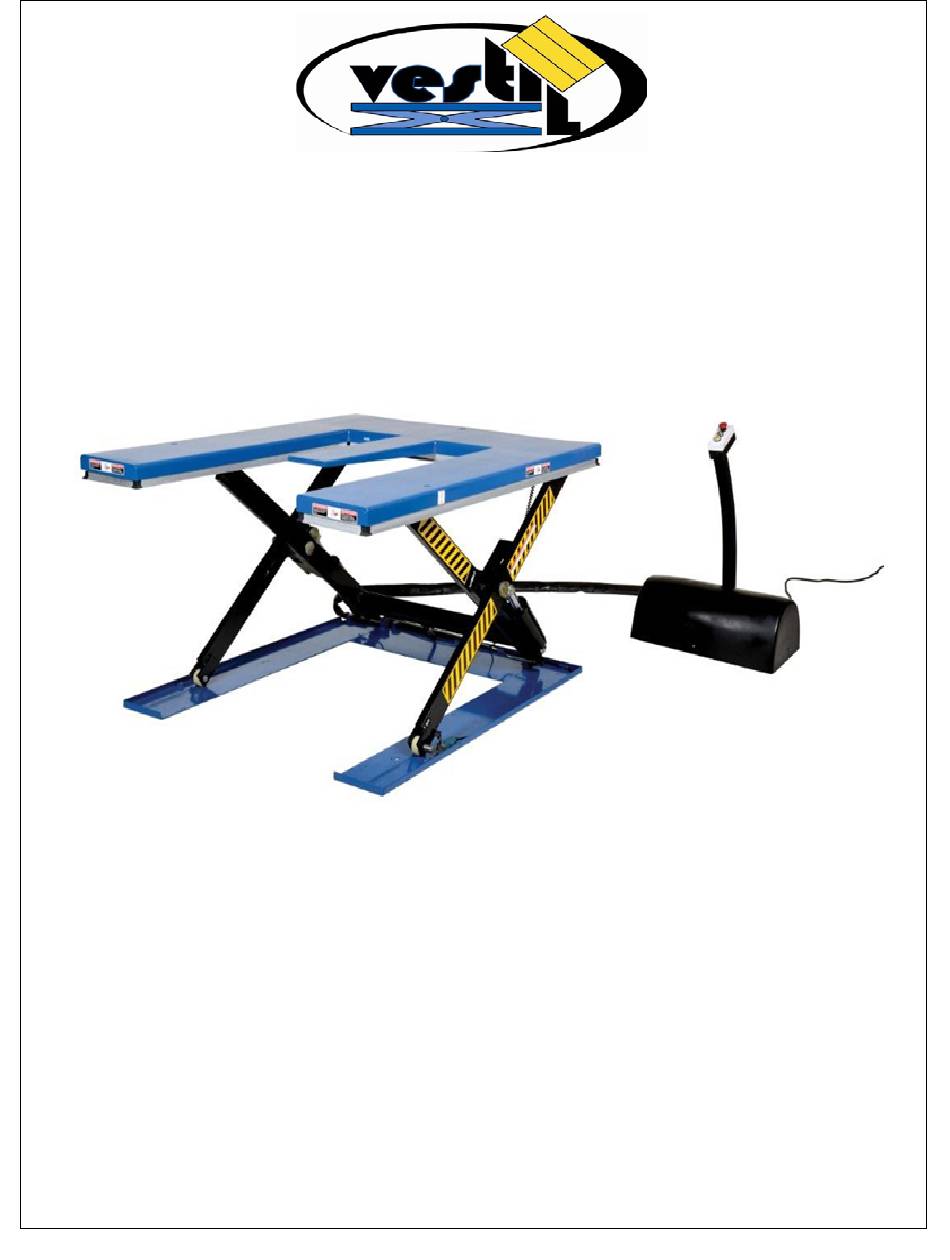

- Page 1 NSTRUCTION ANUAL EHE-2 & EHE-3 ESTIL ANUFACTURING 2999 N , P.O. B 507, A , IN 46703 ORTH AYNE TREET NGOLA : (260) 665-7586 - (800) 348-0868 ELEPHONE : (260) 665-1339 VESTILMFG MAIL SALES VESTIL...
- Page 2 THANK YOU VERY MUCH FOR SELECTING OUR PRODUCT. THIS INSTRUCTION MANUAL DESCRIBES CORRECT OPERATING METHOD TO ENSURE PROLONGED SERVICE LIFE. PLEASE READ AND COMPLETELY UNDERSTAND THIS MANUAL BEFORE OPERATING THE LOW PROFILE LIFT TABLE. ALWAYS KEEP THIS MANUAL AT AN APPROPRIATE PLACE. IF THE MANUAL OR WARNING DECAL IS MISSING, PLEASE CONTACT WITH DEALER.
- Page 3 ◇ It is forbidden to operate the lift table while a person is under the table. ◇ Do not adjust the safety valve of hydraulic power pack. ◇ It is forbidden to operate the lift table even if there is underf the table. ◇...
-
Page 4: Daily Inspection
3. DAILY INSPECTION Daily inspection is effective to find the malfunction or fault on the lift table. Before operation, check the lift table according to the following points. CAUTION! n o t u s e t h e l i ft ta b l e a n y m a l f u n c t i o n o r f a u l t i s f o u n d . -
Page 5: Emergency Stop
◇ Loose the UP button and power pack stops working. ■ Lowering the Table WARNING! Do not put foot or hand in scissors mechanism. ◇ Push the DOWN button and the table will lower. ◇ Loose the DOWN button and the table will stop. NOTE ◇... - Page 6 5. HYDRAULIC CIRCUIT & ELECTRIC PRINCIPLE DIAGRAM See Figure 1 & Figure 2...
- Page 7 Fig. 1 Hydraulic circuit...
-
Page 8: Specification
Fig. 2 Electric Principle Diagram 6. Specification Model EHE-2 EHE-3 Capacity (lbs) 2,000 3,000 Min. Height (inch) 3½ 4¼ Max. Height (inch) 33½ 33½ Platform Outside Dimensions Law (inch) 55¾ x 52¾ 63 x 53½ Platform Inside Dimensions LxW (inch) 41¼... - Page 9 7. SERVICE INSTRUCTIONS ■ Do routine check of fasteners, packing and oil leaking. ■ Do routine check of the function of the lift table. ■ Before service the lift table, make sure to turn off the AC power supply. ■ After service it is necessary to check the function of the lift table again. ■...
-
Page 10: Troubleshooting

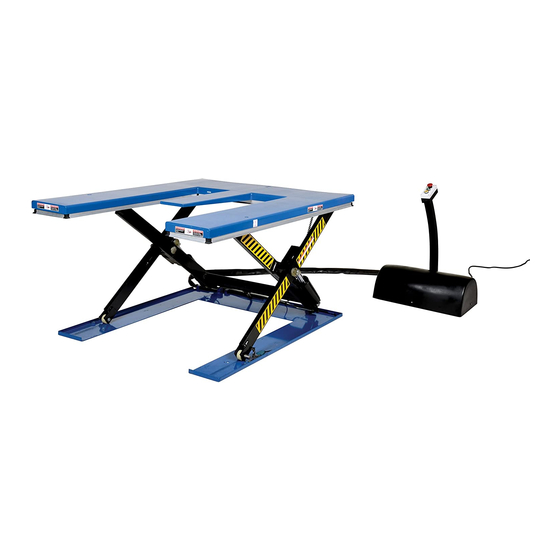

8. TROUBLE SHOOTING Note: Before service it is necessary to screw two eyebolts into relevant screw-holes on the basis lest the table lowers accidentally. Trouble Cause Remedy ◇ Eyebolt has not been removed ◇ Remove eyebolt ◇ AC Voltage phrases mistake Table cannot lift... - Page 12 EHE-2/3 "E" Type Electric Lift Table...
- Page 13 EHE-2 ELECTRIC LIFT TABLE PARTS LIST Part # Description Qty. Part # Description Qty. Part # Description Qty. EHE‐2‐BK Contactor, Motor EHE‐2‐38 Washer, Flat EHE‐2‐78 Spring Pin EHE‐2‐SK Kit, Seal EHE‐2‐39 Washer, Lock EHE‐2‐79 Shaft EHE‐2‐QC Connect, Quick EHE‐2‐40 Bolt, Hex Head EHE‐2‐80 Connector, Threaded EHE‐2‐1 Deck EHE‐2‐41 Bolt, Hex Head EHE‐2‐81 Hose, Oil EHE‐2‐2 Guard, Toe...
- Page 14 EHE-3ELECTRIC LIFT TABLE PARTS LIST Part # Description Qty. Part # Description Qty. Part # Description Qty. EHE‐3‐BK Contactor, Motor EHE‐3‐38 Washer, Flat EHE‐3‐78 Spring Pin EHE‐3‐SK Kit, Seal EHE‐3‐39 Washer, Lock EHE‐3‐79 Shaft EHE‐3‐QC Connect, Quick EHE‐3‐40 Bolt, Hex Head EHE‐3‐80 Connector, Threaded EHE‐3‐1 Deck EHE‐3‐41 Bolt, Hex Head EHE‐3‐81 Hose, Oil EHE‐3‐2 Guard, Toe EHE‐3‐42 Washer, Lock EHE‐3‐82...
