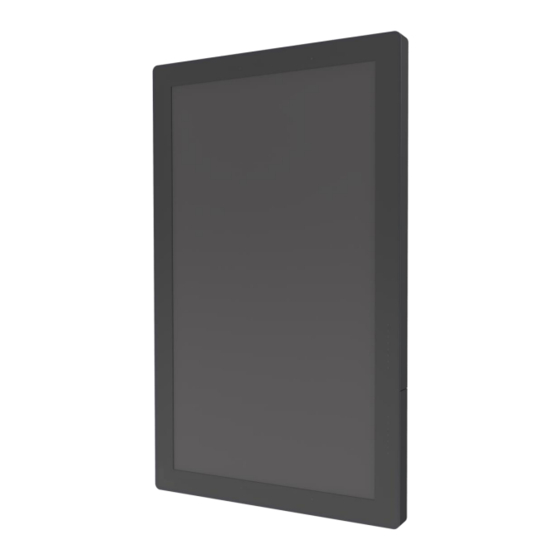

MicroTouch DS-320P-A1 User Manual

MicroTouch DS-320P-A1 User Manual

Digital signage monitor

Advertisement

Quick Links

User Manual
DS-320P-A1
Digital Signage Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-320P-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MicroTouch DS-320P-A1

  • Page 1 User Manual DS-320P-A1 Digital Signage Monitor...
  • Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
  • Page 7: Table Of Contents

    Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ..................... 10 1.5.2 Video Signal Connector ................... 10 1.6 Package Overview ....................12 Chapter 2 ........................
  • Page 8: Chapter 1

    Chapter 1 Product Introduction...
  • Page 9: Overview

    1.1 Overview DS-320P-A1 series supports landscape or portrait and low power consumption at the maximum consumption of 70W. DS-320P-A1 provides application for Interactive whiteboard and digital signage. 1.2 Feature ▪ VESA mounting holes for various mounting options. ▪ Multilingual OSD user control ▪...
  • Page 10: Block Diagram

    1.4 Block Diagram This section describes the electrical requirements of the monitor. The block diagram in figure 1 illustrates the various electrical sub-systems.
  • Page 11: Interface Connectors

    1.5 Interface Connectors 1.5.1 Power Connector The monitor shall have a power control switch visible and accessible on the bottom of the monitor. The power switch shall be marked with icons per IEC 417, #5009. The operation of the power switch should be programmable thru monitor firmware control.
  • Page 12 The video signal input via HDMI female connector. Connector Pin Assignment: Signal Signal TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock– TMDS Data2– TMDS Data1+ Reserved (N.C. on device) TMDS Data1 Shield TMDS Data1– TMDS Data0+ DDC/CEC Ground TMDS Data0 Shield +5V Power TMDS Data0–...
  • Page 13: Package Overview

    1.6 Package Overview LCD Display Power Cord DVI Cable USB Cable (A to B) HDMI Cable VGA cable Screw (M5 x 8mm) Nut x 2 x 4 pcs Washer x 2...
  • Page 14 This product is intended to be supplied by a AC-in Power source, rated 100V~240V, 1.2A 50/60Hz minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension...
  • Page 15: Chapter 2

    Chapter 2 Product Installation...
  • Page 16: About Vesa Mount

    2.1 About VESA Mount “VESA Flat Display Mounting Interface The DS-320P-A1 series conform to the Standard” which defines a physical mounting interface for touch monitor and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit.
  • Page 17: Install The Vesa Screw

    2.1.1 Install the VESA screw Note: Please install/ dismantle the product when the device is in the shutdown state. Step 1: Fasten two M5 screws nut into the VESA hole The length of screw nut is 30mm Step 2: Fasten four M5 screws into the VESA hole The specification of screw is M5 x 8mm...
  • Page 18: About General Mounting Information

    2.2 About General Mounting Information The following two mounting orientations are supported: Landscape and portrait mode. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. 2.2.1 Landscape 2.2.2 Portrait...
  • Page 19: On-Screen Display

    2.3 On-Screen Display The OF-320P-A1 provide side panel controls. And the following is OSD function table: Menu off status Menu on status MENU Menu appear Menu disappear/ return to main item ▲ Brightness Main item select up/ Adjust up ▼ Contrast Main item select down/ Adjust down SELECT...
  • Page 20 1. When the OSD Lock function is selected, this indicates that all the buttons except “power” button are now disabled. 2. When the Power Lock function is selected, this indicates that the power key is disabled; user can not to turn off the monitor by "Power" key. 3.
  • Page 21: Osd Function Description

    2.3.1 OSD Function Description Item Content Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Automatically adjusts the screen image of VGA signal, Auto Adjust affecting the H-position, V-position, Frequency, and Phase menu. Left/Right Moving screen image horizontal position to left or right. NA Up/Down Moving screen image vertical position to up or down.
  • Page 22: Timing Table Chart

    2.3.2 Timing Table Chart Polarity H-Freq. Bandwidth Mode Resolution (KHz) (MHz) VGA 640x480@ 60Hz 31.47 25.175 VESA 800x600@ 56Hz 35.16 VESA 800x600@ 60Hz 37.88 VESA 1024x768@ 60Hz 48.36 VESA 1280x720@ 60Hz 44.772 74.5 VESA 1280x768@ 60Hz 47.776 79.5 VESA 1280x1024@ 60Hz VESA 1280x960@ 60Hz VESA 1440x900@ 60Hz 106.5...
  • Page 23: Dimension

    2.4 Dimension 2.4.1 Front View 2.4.2 Side View...
  • Page 24: Rear View

    2.4.3 Rear View...
  • Page 25: Appendix

    Appendix...
  • Page 26 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱:觸控螢幕 型號(型式):DS-320P-A1 Type designation (Type) :DS-320P-A1 Equipment name:Touch Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead Mercury...
