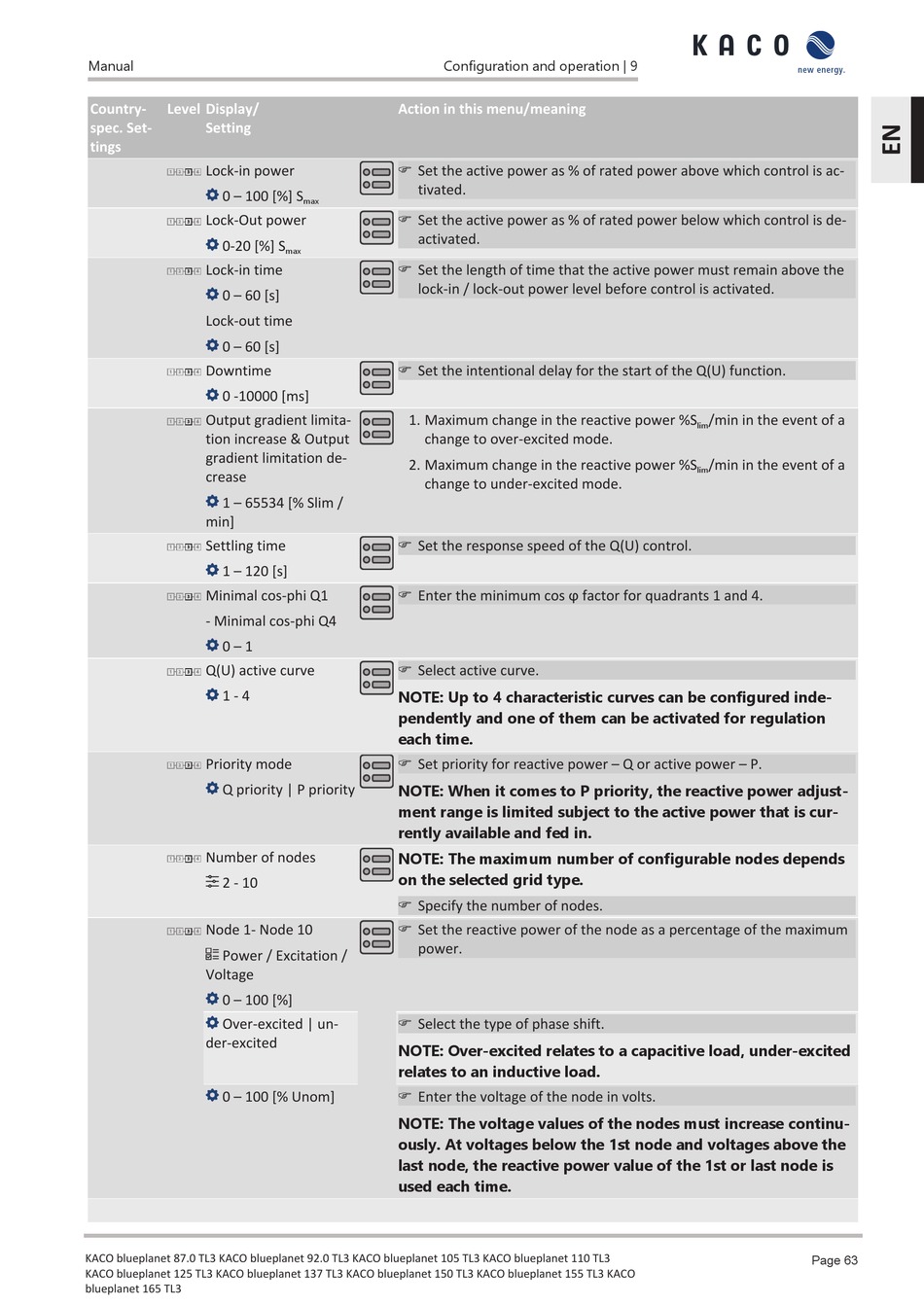

Kaco blueplanet 87.0 TL3 Manual page 63

Manual
Country- Level Display/
spec. Set- Setting
tings
Lock-in power
1 2 3 4 4
0 – 100 [%] S
Lock-Out power
1 2 3 4 4
0-20 [%] S
Lock-in time
1 2 3 4 4
0 – 60 [s]
Lock-out time
0 – 60 [s]
Downtime
1 2 3 4 4
0 -10000 [ms]
Output gradient limita-
1 2 3 4 4
tion increase & Output
gradient limitation de-
crease
1 – 65534 [% Slim /
min]
Settling time
1 2 3 4 4
1 – 120 [s]
Minimal cos-phi Q1
1 2 3 4 4
- Minimal cos-phi Q4
0 – 1
Q(U) active curve
1 2 3 4 4
1 - 4
Priority mode
1 2 3 4 4
Q priority | P priority
Number of nodes
1 2 3 4 4
2 - 10
Node 1- Node 10
1 2 3 4 4
Power / Excitation /
Voltage
0 – 100 [%]
Over-excited | un-
der-excited
0 – 100 [% Unom]
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 105 TL3 KACO blueplanet 110 TL3
KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3 KACO blueplanet 155 TL3 KACO
blueplanet 165 TL3
Configuration and operation | 9
Action in this menu/meaning
F Set the active power as % of rated power above which control is ac-
tivated.
max
F Set the active power as % of rated power below which control is de-
activated.
max
F Set the length of time that the active power must remain above the
lock-in / lock-out power level before control is activated.
F Set the intentional delay for the start of the Q(U) function.
1. Maximum change in the reactive power %S
change to over-excited mode.
2. Maximum change in the reactive power %S
change to under-excited mode.
F Set the response speed of the Q(U) control.
F Enter the minimum cos ϕ factor for quadrants 1 and 4.
F Select active curve.
NOTE: Up to 4 characteristic curves can be configured inde-
pendently and one of them can be activated for regulation
each time.
F Set priority for reactive power – Q or active power – P.
NOTE: When it comes to P priority, the reactive power adjust-
ment range is limited subject to the active power that is cur-
rently available and fed in.
NOTE: The maximum number of configurable nodes depends
on the selected grid type.
F Specify the number of nodes.
F Set the reactive power of the node as a percentage of the maximum
power.
F Select the type of phase shift.
NOTE: Over-excited relates to a capacitive load, under-excited
relates to an inductive load.
F Enter the voltage of the node in volts.
NOTE: The voltage values of the nodes must increase continu-
ously. At voltages below the 1st node and voltages above the
last node, the reactive power value of the 1st or last node is
used each time.
/min in the event of a
lim
/min in the event of a
lim
