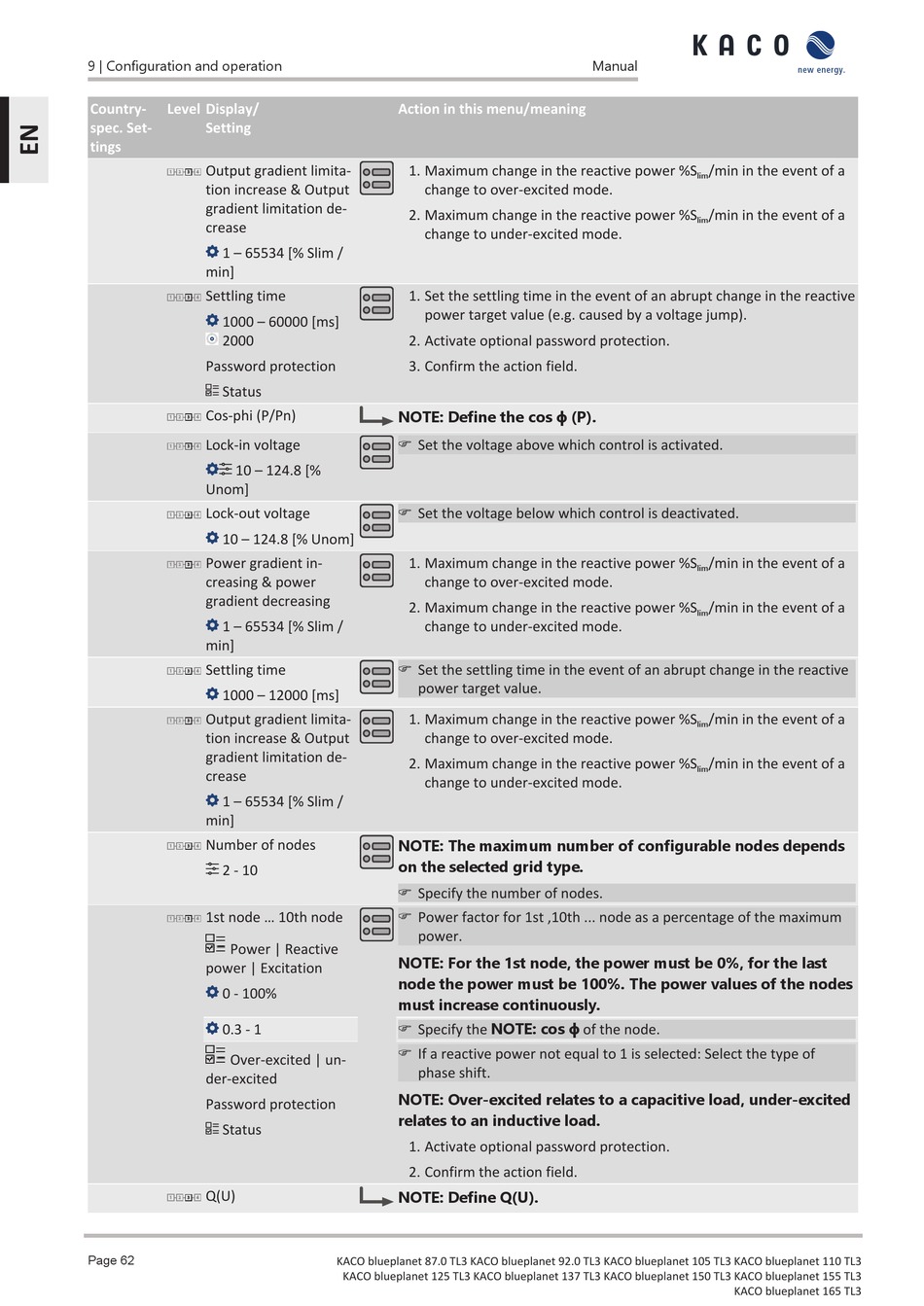

Kaco blueplanet 87.0 TL3 Manual page 62

9 | Configuration and operation
Country- Level Display/
spec. Set- Setting
tings
Output gradient limita-
1 2 3 4 4
tion increase & Output
gradient limitation de-
crease
1 – 65534 [% Slim /
min]
Settling time
1 2 3 4 4
1000 – 60000 [ms]
2000
Password protection
Status
Cos-phi (P/Pn)
1 2 3 4 4
Lock-in voltage
1 2 3 4 4
10 – 124.8 [%
Unom]
Lock-out voltage
1 2 3 4 4
10 – 124.8 [% Unom]
Power gradient in-
1 2 3 4 4
creasing & power
gradient decreasing
1 – 65534 [% Slim /
min]
Settling time
1 2 3 4 4
1000 – 12000 [ms]
Output gradient limita-
1 2 3 4 4
tion increase & Output
gradient limitation de-
crease
1 – 65534 [% Slim /
min]
Number of nodes
1 2 3 4 4
2 - 10
1st node ... 10th node
1 2 3 4 4
Power | Reactive
power | Excitation
0 - 100%
0.3 - 1
Over-excited | un-
der-excited
Password protection
Status
Q(U)
1 2 3 4 4
Page 62
Action in this menu/meaning
1. Maximum change in the reactive power %S
change to over-excited mode.
2. Maximum change in the reactive power %S
change to under-excited mode.
1. Set the settling time in the event of an abrupt change in the reactive
power target value (e.g. caused by a voltage jump).
2. Activate optional password protection.
3. Confirm the action field.
NOTE: Define the cos ϕ (P).
F Set the voltage above which control is activated.
F Set the voltage below which control is deactivated.
1. Maximum change in the reactive power %S
change to over-excited mode.
2. Maximum change in the reactive power %S
change to under-excited mode.
F Set the settling time in the event of an abrupt change in the reactive
power target value.
1. Maximum change in the reactive power %S
change to over-excited mode.
2. Maximum change in the reactive power %S
change to under-excited mode.
NOTE: The maximum number of configurable nodes depends
on the selected grid type.
F Specify the number of nodes.
F Power factor for 1st ,10th ... node as a percentage of the maximum
power.
NOTE: For the 1st node, the power must be 0%, for the last
node the power must be 100%. The power values of the nodes
must increase continuously.
F Specify the NOTE: cos ϕ of the node.
F If a reactive power not equal to 1 is selected: Select the type of
phase shift.
NOTE: Over-excited relates to a capacitive load, under-excited
relates to an inductive load.
1. Activate optional password protection.
2. Confirm the action field.
NOTE: Define Q(U).
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 105 TL3 KACO blueplanet 110 TL3
KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3 KACO blueplanet 155 TL3
Manual
/min in the event of a
lim
/min in the event of a
lim
/min in the event of a
lim
/min in the event of a
lim
/min in the event of a
lim
/min in the event of a
lim
