NetPA U 8001 SUB • Setup Guide (Continued)
Figure 5. Speaker Output Port and Wiring Diagram
ATTENTION:
•
You must use Class 2 wiring for this output to comply with UL requirements.
•
Vous devez utiliser le câblage de classe 2 pour cette sortie afin de vous conformer aux exigences UL.
•
Do not tie channel output pins to each other or to ground. Doing so will short out the outputs, damage the
amplifier, or both.
•
Ne pas lier les sorties 1 et 2 des canaux entre elles ou à la terre. Les sorties pourraient être court-circuitées et/
ou l'amplificateur pourrait être endommagé.
•
To avoid risk of damage to the amplifier or the speakers, always check that speaker loads are appropriately
wired to the amplifier.
•
Pour éviter les risques de dommages à l'amplificateur ou aux haut-parleurs, vérifiez toujours que les charges
des haut-parleurs sont correctement câblées à l'amplificateur.
Step 5 — AT Port

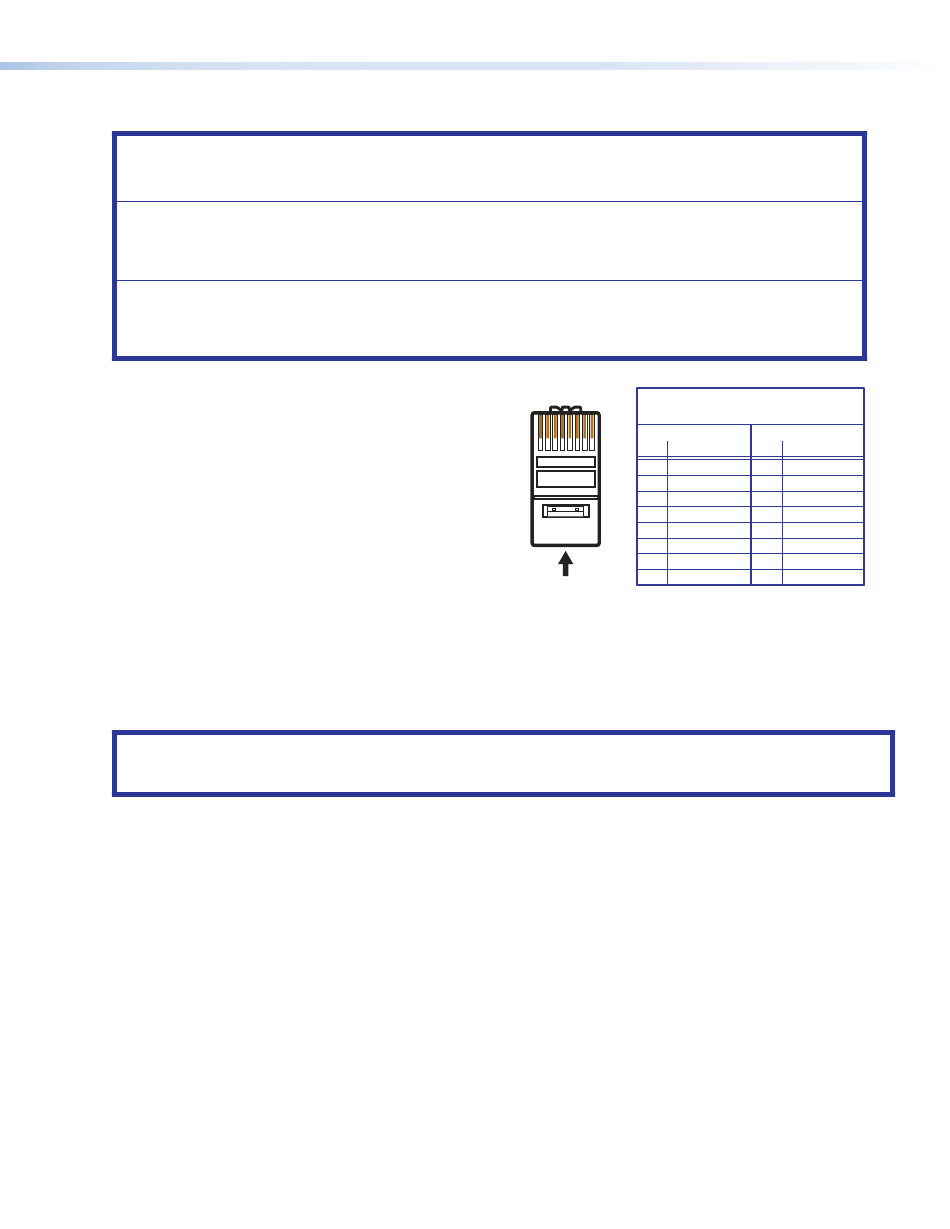

Connect an RJ-45 connector to the AT port to connect and
communicate with the Dante network. It is also one of the
interfaces DSP Configurator uses to communicate with the
amplifier. The Link LED indicates when a connection is made.
Go to Configure Dante Device Settings
information on Dante settings. See the image to the right for
wiring.
Step 6 — Powering on Amplifier and Adjustments
Ensure all sources connected to the amplifier inputs are muted to
avoid potential speaker damage during power-up.
Reconnect all the power cables and switch on the rest of the
equipment before powering on the power amplifier. The amplifier
boots-up for up to 10 seconds as the front panel LED flashes green.
Once the boot-up sequence is complete, the amplifier takes more time to sync with the Dante network, and begin the
playback of streamed content. The front panel LED lights green after approximately 20 seconds.
ATTENTION:
• The amplifier must be powered on last.
• L'amplificateur doit être mis sous tension en dernier.
Step 7 — Checking LEDs
Check the Limiter/Protect and Signal LEDs on the front and rear panels to see if any problems are encountered (see "Front
Panel Features and Troubleshooting" in the NetPA U 8001 SUB User Guide for more information).
Double-check the correct load is connected and properly wired to the rear panel connection (see
for more information).
Step 8 — DSP Configurator Software Installation
There are no hardware controls for the NetPA U 8001 SUB. Configuration is performed using Extron DSP Configurator
software, while control is performed via SIS commands. To learn about full computer requirements, see the DSP Configurator
product page on www.extron.com.
Download DSP Configurator from the Extron Website
From the Extron home page (www.extron.com), click the Download tab to open the Download page.
1.
Under Software (located on the left side of the page), select DSP Configurator Software. The DSP Configurator
2.
Software product page opens.
Click the Download button and follow the on-screen instructions.
3.
12345678
on page 5 for
Insert Twisted
Pair Wires
RJ-45
Connector
Pins:
Crossover Cable
(for direct connection to a PC)
End 1
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
T568B
A cable that is wired as TIA/EIA T568A at one
end and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
Speaker Wiring
End 2
Pin Wire Color
1 white-green
2 green
3 white-orange
4 blue
5 white-blue
6 orange
7 white-brown
8 brown
T568A
on page 3
