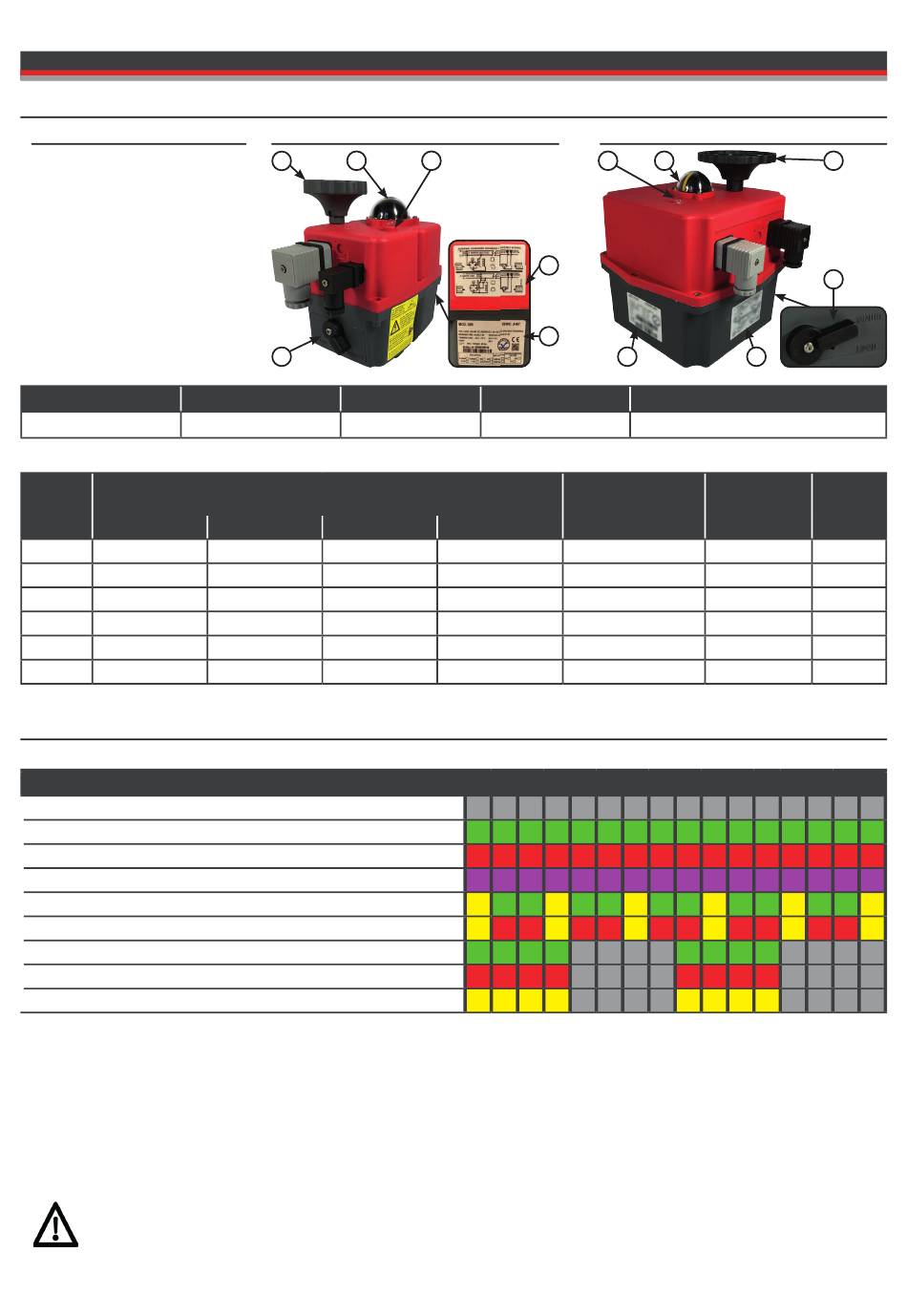

J+J J4C S 20 Manual page 3

Overview
Description
A Switch manual override
B Handwheel
C DOME position indicator
D Status LED
E Wiring diagram
F Type label
All models:
Temperature range
Duty cycle
ED= 75%
Model specific:
Current consumption with max. torque
Voltage range: 24-240V AC (50/60Hz) / 24-135 DC
24V AC
Model
S 20 1,3A / 30,7W
S 35 1,7A / 40,2W
S 55 2,0A / 47,5W
S 85 1,5A / 36,0W
S140 3,3A / 79,2W
S300 3,3A / 79,2W
Operation
Status LED (D)
Operation status
Without power supply
Actuator is in opened position
Actuator is in closed position
Actuator is in stop position
Actuator is turning in open direction
Actuator is turning in close direction
Torque limiter active in open direction
Torque limiter active in close direction
Manual override active, motor was stopped
Manual override (A/B)
All J4C models have a manual emergency transmission for manual operation in case of a power failure. For manual override turn
the switch „AUTO-MAN" (A) to „MAN". This decouples the motor from the gear.
Now you can turn the actuator with the handwheel (B).
After about four times of the working time, the motor is automatically stopped by the electronics.
To put the actuator back in automatic mode after manual actuation, turn the switch „AUTO-MAN" (A) to the „AUTO" position.
Now the motor is coupled again. If the motor has switched off automatically, this can be reversed either by driving to the other
direction or by reactivating with a short power interruption (removal of the power plug).
The switch „AUTO-MAN" must not be turned over its predetermined switch positions.
If the switching is difficult, the gear can be synchronized by using the handwheel.
The screw of the switch must never be loosened!
Manual J4C S20-S300
20-35-55-85
B C
A
-20°C - +70°C
24V DC 110V AC
1,0A / 23,4W 0,3A / 32,7W
1,4A / 32,8W 0,4A / 41,9W
1,6A / 39,0W 0,4A / 47,0W
1,2A / 29,3W 0,3A / 36,5W
2,5A / 60,7W 0,7A / 78,7W
2,7A / 64,7W 0,8A / 84,7W
D
E
F
IEC60529
Heater Protection
3,5 W IP67
230V AC
0,2A / 46W
0,2A / 46W
0,2A / 46W
0,2A / 46W
0,4A / 105,6W
0,5A / 113,5W
-PAGE 3-
140-300
D C
F
2x End position switches
SPST NO 5A 125VAC / 3A 250VAC
Optional 0,1A 30VDC (see page 1)
Working time
Work- / without load
s/90° ±10%
Break torque
20Nm / 25Nm 10s (5,5s)
35Nm / 38Nm 10s
55Nm / 60Nm 13s
85Nm / 90Nm 29s
140Nm / 170Nm 25s
300Nm / 350Nm 48s
LED
J+J
B
A
E
Weight
1,8kg
1,9kg
2,4kg
3,0kg
5,2kg
5,2kg
