Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Recommended tools

The procedures in this document may require the following tools:
● Phillips #0 screwdriver
● Phillips #1 screwdriver
● Plastic scribe-Recommended for field technician

Screw List

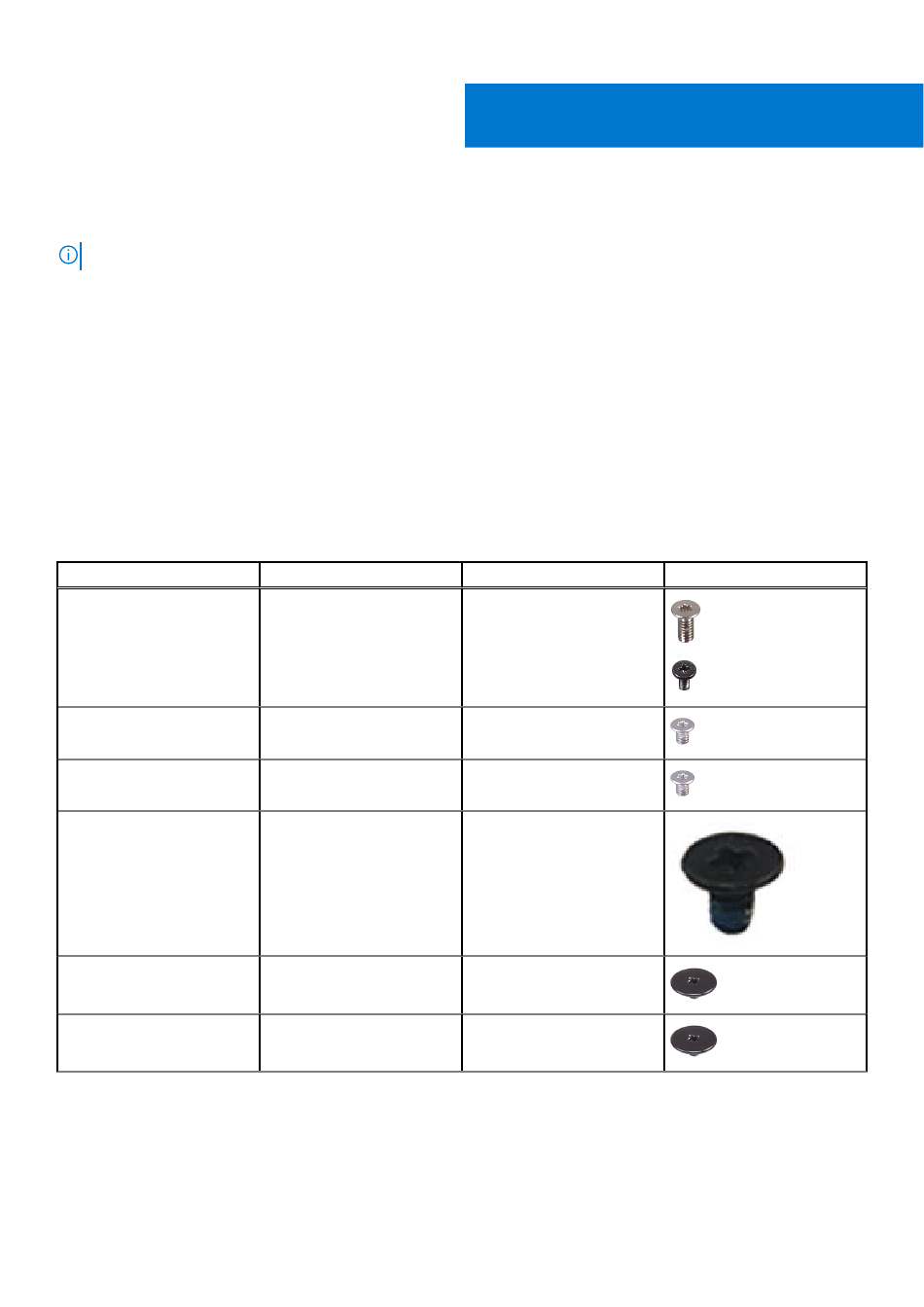

The following table shows the screw list and the images for different components.
Table 1. Screw Size List
Component
Base cover
Battery 3-cell
Battery 4-cell
WLAN
M.2 2230 SSD
M.2 2280 SSD
Screw type
M2x5
Captive screw
M2x3
M2x3
M2x3
M2x2
M2x2
Quantity
6
2
3
4
1
1
1
