Power Button With Fingerprint Reader; Removing The Power-Button With Fingerprint Reader - Dell Vostro 15 3510 Service Manual

Steps

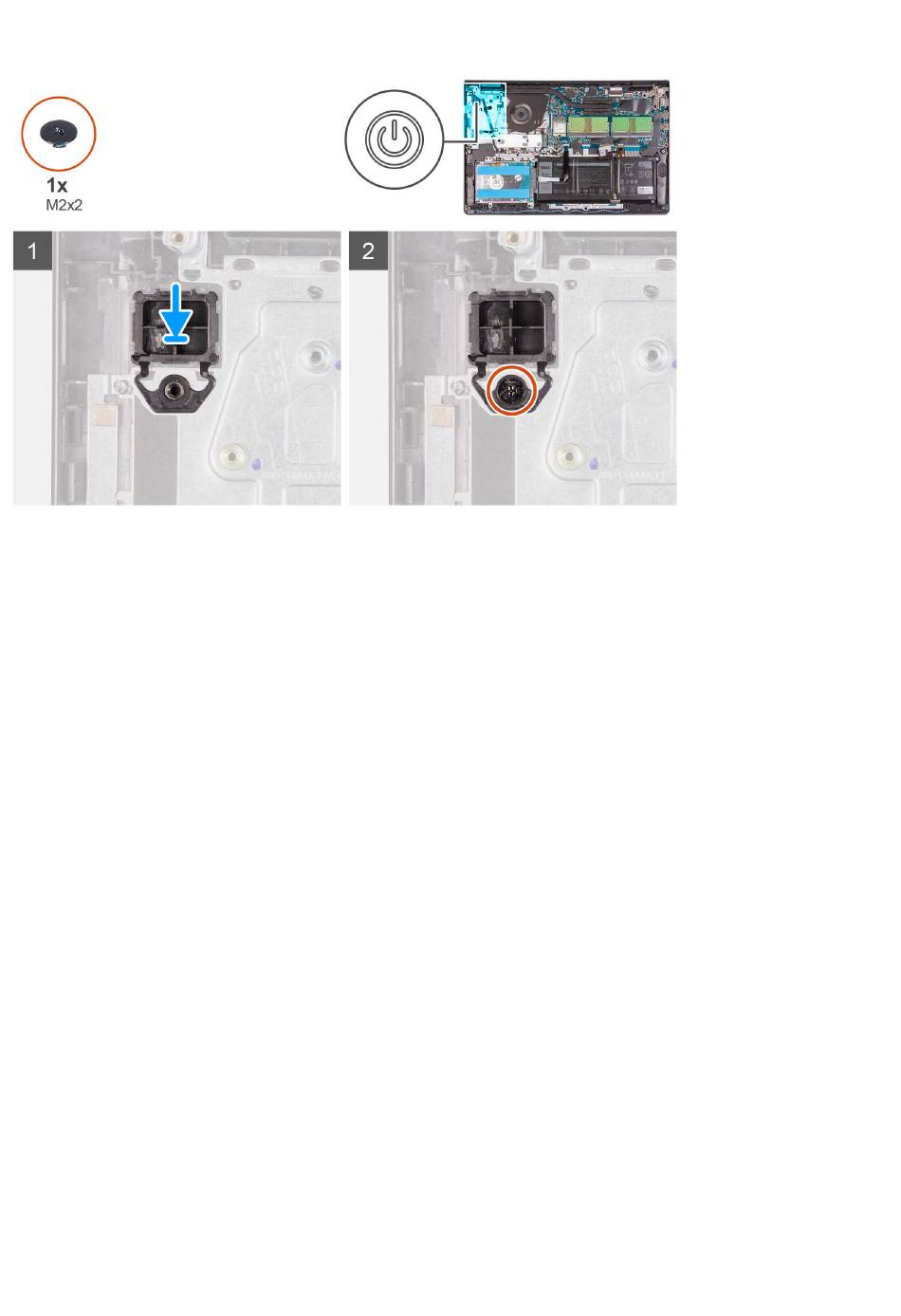

1. Place the power-button board into the slot on the palm-rest and keyboard assembly.
2. Install the single (M2x2) screws to secure the power button to the palm-rest and keyboard assembly.
Next steps
1. Install the IO board.
2. Install the base cover.
3. Exit service mode.
4. Install the SD card.
5. Follow the procedure in

Power button with fingerprint reader

Removing the power-button with fingerprint reader

Prerequisites
1. Follow the procedure in
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the IO board.
About this task
The following images indicate the location of the power-button with fingerprint reader and provides a visual representation of
the removal procedure.
after working inside your
before working inside your
computer.
computer.
Removing and installing components 73
