Solar System Design Guide
VITOSOL 200-FM
Model SH2F
Model SV2F

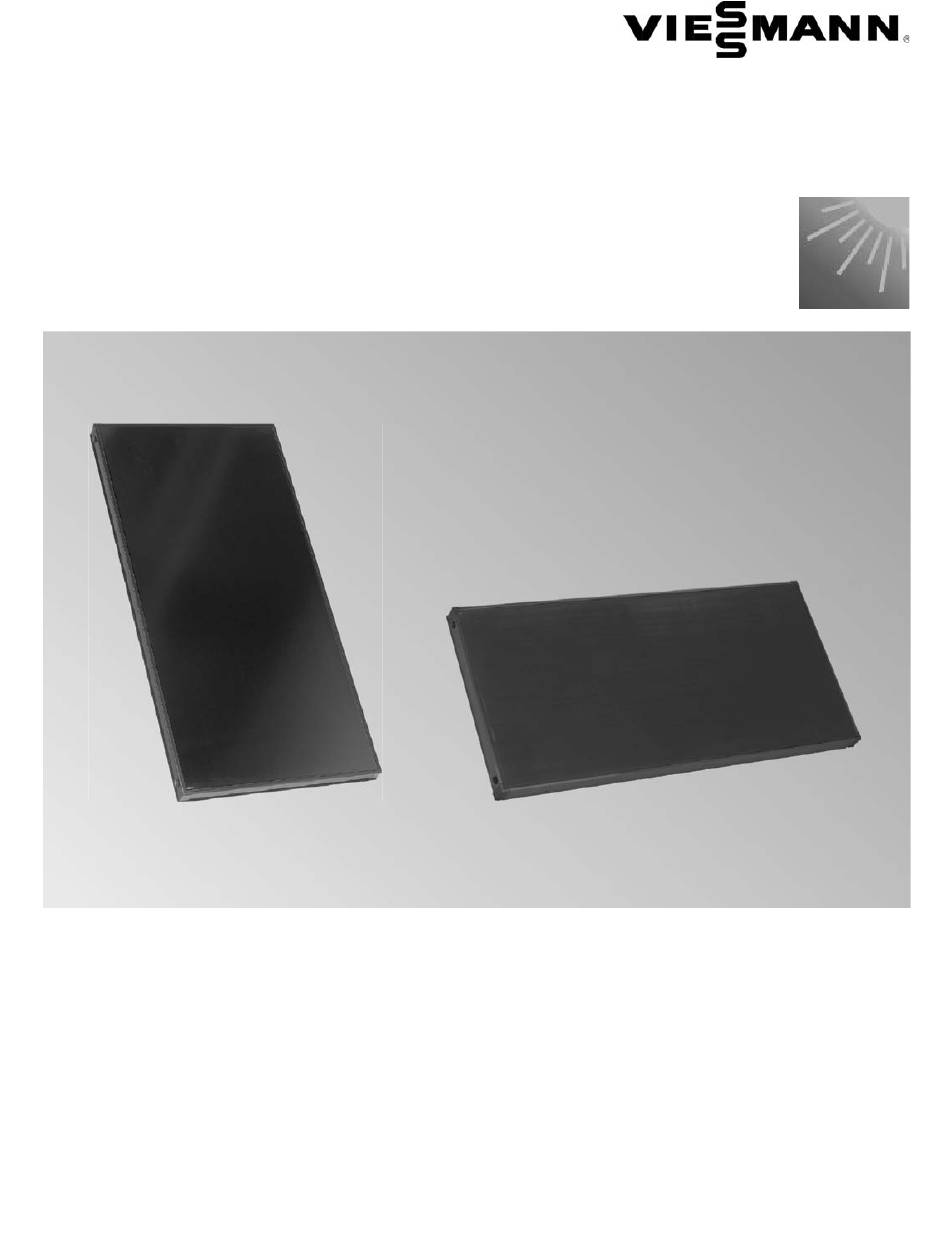

Product may not be exactly as shown
VITOSOL 200-FM
Model SV2F and SH2F
Flat plate solar collectors
For vertical (model SV) or horizontal (model SH) installation on
sloped and flat roofs. For integration on walls (model SH only).
To produce domestic hot water, or to supplement
low-temperature heating systems or swimming pools
via a heat exchanger.
6020 457 - 01
06/2019
