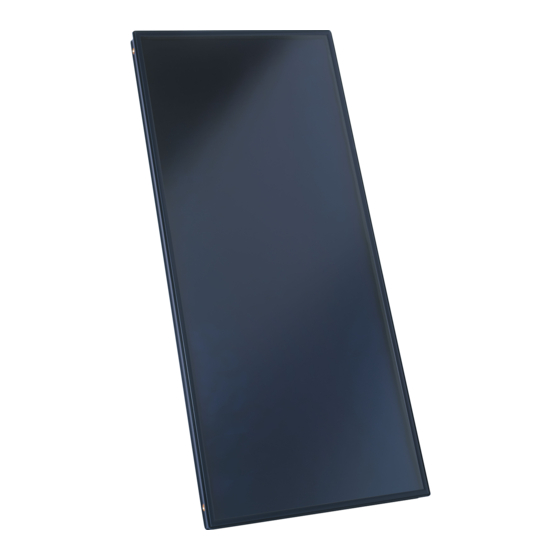

Flat-plate collector for sloping roofs; above roof installation
Hide thumbs Also See for Vitosol 200-F:
Table of Contents

Advertisement

Quick Links

Download this manual
VIESMANN
Installation instructions
for contractors
Vitosol 200-F
Type SVK

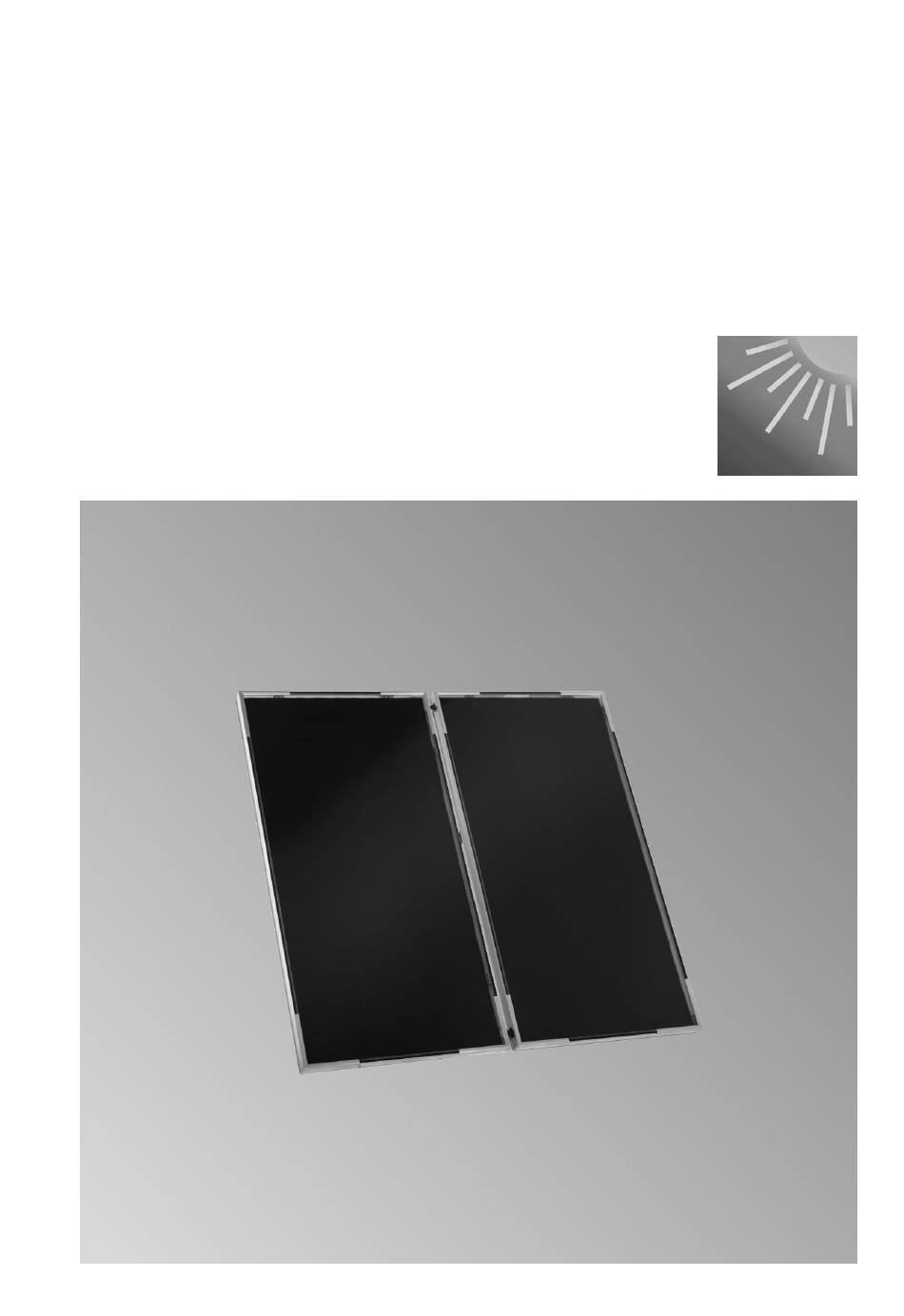

Flat-plate collector for sloping roofs; above roof installation
VITOSOL 200-F
Dispose after installation.
5782 246 GB
6/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitosol 200-F and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann Vitosol 200-F

Summary of Contents for Viessmann Vitosol 200-F

  • Page 1 VIESMANN Installation instructions for contractors Vitosol 200-F Type SVK Flat-plate collector for sloping roofs; above roof installation VITOSOL 200-F Dispose after installation. 5782 246 GB 6/2013...
  • Page 2 Safety instructions Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained Working on the system Please note ■ Isolate the system from the power sup- This symbol warns against the ply (e.g. by removing the separate fuse risk of material losses and envi- or by means of a mains isolator) and ronmental pollution.

  • Page 3: Table Of Contents

    Index Intended use....................... Installation sequence Installation with rafter hooks................. ■ Components...................... ■ Mounting the fixing system................Installation with roof hooks/mounting brackets............. 11 ■ Components...................... 11 ■ Mounting roof hooks..................12 ■ Fitting mounting brackets.................. 16 ■ Fitting mounting rails..................17 Installation with rafter anchors................

  • Page 4: Intended Use

    Intended use The appliance is only intended to be installed and operated in sealed unven- ted systems that comply with EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due atten- tion paid to the associated installation, service and operating instructions.

  • Page 5: Installation With Rafter Hooks

    Installation with rafter hooks Components 1 Rafter hook 5 Mounting plate 2 Support bracket 6 Clamping bracket, external 3 Screws 7 Clamping bracket, internal 4 Mounting rail Mounting the fixing system A specific number of rafters need to be used for fitting the rafter hooks. This number depends on the rafter spacing.
  • Page 6 Installation with rafter hooks (cont.) Rafter spacing ≤600 mm ≥700 mm, ≤1000 mm A Position of rafter hooks (4 pce)
  • Page 7 Installation with rafter hooks (cont.) ■ Version I: Please note Fitting rafter hook 1 onto counter bat- Take care to avoid breaking ten C with support bracket 2 tiles. The rafter hook must not be posi- ■ Version II: tioned on top of the roof tiles. Fitting rafter hook 1 directly onto raf- Observe the dimensions.
  • Page 8 Installation with rafter hooks (cont.)
  • Page 9 Installation with rafter hooks (cont.)
  • Page 10 Installation with rafter hooks (cont.) 90° Maximum deviation from dimensions x and y 10 mm. Continue with "Installing and connecting the collectors" (see page 25).

  • Page 11: Installation With Roof Hooks/Mounting Brackets

    Installation with roof hooks/mounting brackets Components 1 Timber 7 Roof hook for plain tile roofs ■ 38 x 58 x 2430/1570 mm 8 Roof hook for corrugated sheet pro- ■ 30 x 100 x 2430/1570 mm files 5 and 6 2 Roof hook for pantiled roofs 9 Roof hook for corrugated sheet pro- 3 Zinc-plated countersunk chipboard...

  • Page 12: Mounting Roof Hooks

    Installation with roof hooks/mounting brackets (cont.) Mounting roof hooks Roof hooks fitted to a pantiled roof, by way of an example Dimension x according to the width of the tile head y = 440 mm...
  • Page 13 Installation with roof hooks/mounting brackets (cont.) Roof hooks fitted to a plain tile roof, by way of an example Roof cover y in mm Slate Plain tiles Corrugated sheets...
  • Page 14 Installation with roof hooks/mounting brackets (cont.) Pantiled roof 30x100 38x58 Continue with "Fitting mounting rails" on page 17. Slate roof Note Fit commercially available lead flashing to protect against the ingress of mois- ture. Continue with "Fitting mounting rails" on page 17.
  • Page 15 Installation with roof hooks/mounting brackets (cont.) Plain tile roof Note Trim tile; cut off approx. 30 mm with angle grinder. Continue with "Fitting mounting rails" on page 17. Corrugated sheet roof Ø8 Continue with "Fitting mounting rails" on page 17. A Sealing washer (on site) B Existing roof batten...

  • Page 16: Fitting Mounting Brackets

    Installation with roof hooks/mounting brackets (cont.) Fitting mounting brackets E.g. on sheet steel roofs. Use on-site fixings A to secure the The installation of the mounting brackets is shown using box profiles as an exam- mounting brackets. ple. Screws supplied on site.

  • Page 17: Fitting Mounting Rails

    Installation with roof hooks/mounting brackets (cont.) Fitting mounting rails Maximum deviation from dimensions x and y 10 mm. A Roof hook C Mounting rail B Mounting bracket for installation on sheet steel roofs...

  • Page 18: Installation With Rafter Anchors

    Installation with roof hooks/mounting brackets (cont.) Continue with Mounting the collectors on page 25. Installation with rafter anchors Components 1 Rafter anchor 6 Clamping bracket, internal 2 Mounting rail 7 Plastic replacement tile, if the exist- 3 Seal ing tile is not to be cut. 4 Mounting plate Use only on roofs with a slope of at 5 Clamping bracket, external...
  • Page 19 Installation with rafter anchors (cont.) Rafter spacing ≤600 mm ≥700 mm, ≤1000 mm Snow loads up to 1.25 kN/m Snow loads > 1.25 kN/m , ≤ 2.55 kN/m A Position of rafter anchors (4 pce)
  • Page 20 Installation with rafter anchors (cont.) B Rafter C Batten...
  • Page 21 Installation with rafter anchors (cont.) Installation involving trimming tiles Continue with step 9 (see page 24).
  • Page 22 Installation with rafter anchors (cont.) Installation involving plastic replacement tiles...
  • Page 23 Installation with rafter anchors (cont.)
  • Page 24 Installation with rafter anchors (cont.) 90° Max. deviation from dimensions x and y 10 mm.

  • Page 25: Installing And Connecting The Collectors

    Installing and connecting the collectors Please note Lubricate O-ring seals only with Connection pipes should not the special valve grease provi- show any signs of damage. ded. 90° 90°...
  • Page 26 Installing and connecting the collectors (cont.) A Flow connection with sensor well for B Return connection collector temperature sensor 90° A Type plate...

  • Page 27: Fitting The Collector Temperature Sensor

    Fitting the collector temperature sensor The collector temperature sensor is part of the standard delivery of the collector connection set.

  • Page 28: Commissioning

    Fitting the collector temperature sensor (cont.) Commissioning "Vitosol-F" service instructions.
  • Page 32 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
