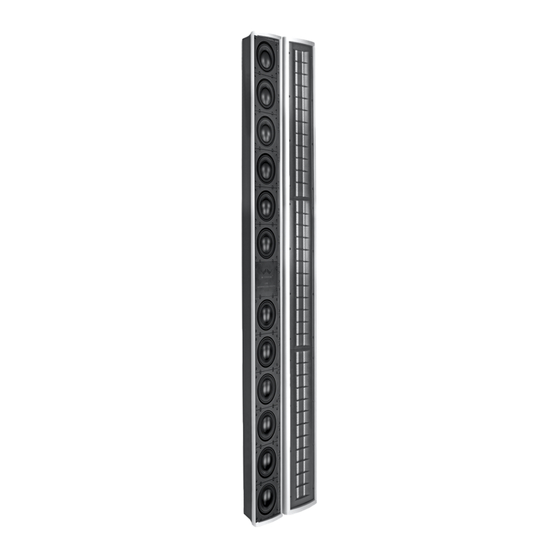

- Page 1 Owner’s Manual Sage L150i Tri-amplified In-Wall Line Source Two-way Planar Magnetic Loudspeaker...
-
Page 2: Table Of Contents
Dimensions | 14 DOCUMENT CONVENTIONS This document contains general safety, installation, and operation instructions for the Wisdom Audio Sage Series L150i Speaker. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death. -
Page 3: Introduction
See the following section entitled “Description” for more information. While we expect your local Wisdom Audio dealer to take care of the setup and calibration of the system, we still recommend that you at least briefly review this and your other manuals to better understand your system’s full capabilities. - Page 4 One of the most remarkable things about the sound of well-designed planar magnetic speakers is their lack of thermal or dynamic compression. There are several reasons for this: • The lightweight diaphragm responds quickly to even the smallest signals yet is robust enough to handle a great deal of power.
- Page 5 One of Wisdom Audio’s strengths is in seamlessly blending these technologies – particularly important given the high standards set by our planar magnetic drivers. Of course, the dynamic woofers themselves must be rather extraordinary to “keep up” with the planar magnetic drivers right up to the crossover frequency.
- Page 6 By contrast, the Wisdom Series L150i speakers radiate sound as a “line source”. The sound moves into the room as an expanding cylinder, rather than as an expanding sphere – as though from a vertical line suspended in space. Line source speakers provide two significant advantages: •...
-
Page 7: Unpacking And Installing The L150I
Unpacking and Installing the L150i The Wisdom Audio Sage L150i freestanding speaker is a substantial piece of equipment. Please exercise caution when unpacking your L150i to ensure that you do not strain yourself from its (perhaps unexpected) weight. - Page 8 Any other method of shipping this product runs a significant risk of damage to the L150i – damage that would not be covered by the warranty. (If you lose your packaging and need to ship your speakers, replacement packaging can be purchased from Wisdom Audio.) SAGE SERIES L150i WISDOMAUDIO.COM...
-
Page 9: Proper Planar Placement
(such as a short- circuit). Note: The Wisdom Audio L150i is a tri-amplified speaker that requires three sets of speaker wire to each location rather than the usual two. One pair of connections is for the planar magnetic module, whereas the woofer module uses two sets of connections, one each for six of the 12 woofers. -
Page 10: Care And Maintenance
North American Warranty Standard Warranty When purchased from and installed by an authorized Wisdom Audio dealer, Wisdom Audio loudspeakers are warranted to be free from defects in material and workmanship under normal use for a period of 10 years from the original date of purchase. - Page 11 The warranty will not apply to any Wisdom Audio products that has been misused, abused, altered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer.
-
Page 12: Obtaining Service
Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently. -
Page 13: Specifications
• Dimensions: See appropriate dimensions drawings on next page • Shipping weight, each HF Planar: 90 lbs. (41 kg) • Shipping weight, each LF Woofer: 53 lbs. (24 kg) For more information, see your Wisdom Audio dealer or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 wisdomaudio.com... -
Page 14: Dimensions
L150i Dimensions Mid-Bass Section SAGE SERIES L150i WISDOMAUDIO.COM... - Page 15 PMD Section SAGE SERIES L150i WISDOMAUDIO.COM...
- Page 16 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA (775) 887-8850 (775) 887-8820 wisdomaudio.com Sage Series L150i OM © 11/2021 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
