- Page 1 Owner’s Manual Sage L75, L75m, L75i Biamplified Planar Magnetic Hybrid Loudspeakers...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................4 About this manual ....................4 Please register your system ..................4 Description .....................5 Planar magnetic panels ..................5 Free from compression..................5 More reliable ....................5 Easy on amplifiers ...................6 Line source behavior ..................6 Dynamic woofers....................7 Big bass in small boxes? ..................7 Extraordinary drivers ..................7 Designed for biamplification ..................8 SC-1 System Controller ..................8... -
Page 4: Introduction
SC-1 is essential to the speakers’ proper operation. In ad- dition, the SA-series amplifiers are specifically designed to meet the needs of the unique bass system of your Sage L75 speakers. It is truly a “system” design, and not merely a collection of loudspeaker drivers in a box. -
Page 5: Description
When you become accustomed to the sound of your new Sage L75 speakers, conventional speakers sound a bit bland and lifeless. -
Page 6: Easy On Amplifiers
By contrast, the Sage L75 speakers radiate sound as a “line source.” The sound moves into the room as an expanding cylinder, rather than as an expanding sphere —... -
Page 7: Dynamic Woofers
In the Sage L75, for example, the active area of the midrange/treble driver is approximately 1“ wide by 48” tall. Because of this shape, the sound (even at high frequencies) is distributed uni- formly across the width of the room from a driver that “looks”... -
Page 8: Designed For Biamplification
But you can also biamplify a full range loudspeak- er, driving the woofer separately from the drivers that handle the midrange and treble frequencies. Your Sage L75 is such a speaker, designed to use separate amplifiers for the woofer and the planar sections of each loudspeaker. -
Page 9: Unpacking & Setting Up The L75

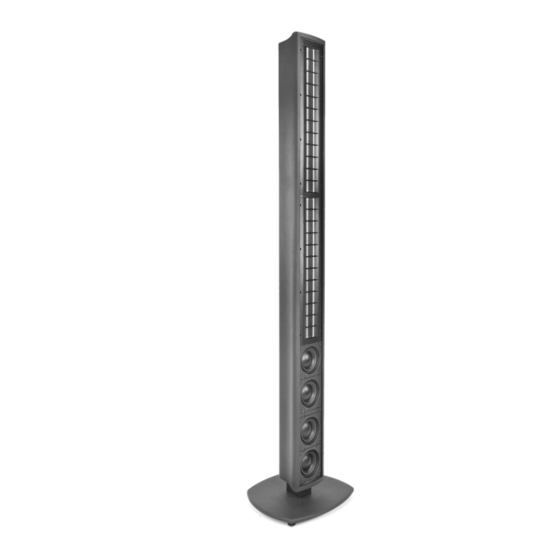

Unpacking & Setting Up the L75 The Wisdom Audio Sage L75 freestanding speaker is a substantial piece of equipment. Please exercise caution when unpacking your L75 to ensure that you do not strain yourself from its (perhaps unexpected) weight. Caution! Do not attempt to lift your L75 by yourself. - Page 10 Wisdom Audio spikes are reversible for use on either hard or carpeted floors. The sharp end of the spike is designed to penetrate the carpeting and couple to the floor beneath, for excellent stability and improved sound. When on tile or hardwood floors, however, use the blunt end of the spike instead to avoid floor damage.
-
Page 11: Making The L75 Connections
(such as a short-circuit). Two sets of speaker wires are required for each Sage L75 loudspeaker: one for the woofer (low pass) section, and a separate one for the planar magnetic (high pass) section that handles the midrange and treble. -
Page 12: Unpacking & Installing The L75M
Unpacking & Installing the L75m The Wisdom Audio Sage L75m on-wall speaker is a substantial piece of equip- ment. Please exercise caution when unpacking your L75m to ensure that you do not strain yourself from its (perhaps unexpected) weight. Caution! Do not attempt to lift your L75m by yourself. - Page 13 a. Using a #2 Phillips bit in your cordless drill, spin the E-Z Toggle Anchor into the drywall until the head of the anchor is seated flush and the arrows on the head of the anchor point up and down. Repeat this process for each anchor location. b.
-
Page 14: Unpacking & Installing The L75I
Unpacking & Installing the L75i Your new Wisdom Audio Sage L75i in-wall speaker is a substantial piece of equipment. Please exercise caution when unpacking your L75i to ensure that you do not strain yourself from its (perhaps unexpected) weight. Caution! Do not attempt to lift your L75i by yourself. - Page 15 system does not require unusually high torque on the screws to be secure. 7. Paint the bezel and grill as necessary, being careful not to plug up the holes in the grille. Note that the speaker modules are not mounted in the bezel and grille assembly at this time. They can be mounted later, after all the paint is dry.
-
Page 16: Room Acoustics & Placement
Room Acoustics & Placement Wisdom Audio believes in equalization. Assume for a moment that you had a “perfect” loudspeaker: as soon as you place it in your room, its perfection is gone. In fact, even good rooms often introduce deviations of 20 dB to the re- sponse of the system. -
Page 17: Speaker Placement
SC-1. Your Wisdom Audio dealer can help you with optimizing your speaker place- ment, which is never quite as simple as it seems it should be. The characteristics... -
Page 18: Surround Speakers
Left and Right speakers while minimizing the change in image height as a sound is panned across the front stage. Wisdom Audio has designed horizontally- oriented planar magnetic hybrid speakers that will match your L75 loudspeaker superbly;... -
Page 19: Room Treatment
(The minimization of these reflections is one of the strongest arguments for the tall, line source loud- speakers that Wisdom Audio builds.) This leaves you with eight “first reflections” that you should consider minimizing somehow. These points are easily found by having an assistant slide a small mirror along the four walls of the room, while you sit at the listening position. -
Page 20: References
Find someone who specializes in and has a great deal of experi- ence designing home studios, home theaters, and the like. Your Wisdom Audio dealer may be such a person; failing that, he/she can help you find such a pro- fessional. -
Page 21: Optimizing The System
Optimizing the System A Wisdom Audio loudspeaker system is just that: a system, designed to provide the highest calibre of performance, in the widest variety of possible settings. As such, simply connecting all the wires does not mean the system is optimized. -
Page 22: Care & Maintenance
Care & Maintenance To remove dust from the cabinet of your L75, use a feather duster or a lint-free soft cloth. To remove stubborn dirt and fingerprints, we recommend isopropyl alcohol and a soft cloth. Lightly dampen the cloth with alcohol first and then clean the surface of the L75 with the cloth. -
Page 23: North American Warranty
The warranty will not apply to any Wisdom Audio loudspeaker that has been misused, abused, al- tered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer. -
Page 24: Obtaining Service
If the packaging to protect the unit is, in our opinion or that of our dealer, inade- quate to protect the unit, we reserve the right to repackage it for return shipment at the owner’s expense. Neither Wisdom Audio nor your dealer can be respon- sible for shipping damage due to improper (that is, non-original) packaging. -
Page 25: Specifications
69 lbs. (31 kg) ■ Shipping weight, each L75m 65 lbs. (29 kg) ■ Shipping weight, each L75i For more information, see your Wisdom Audio dealer, or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 www.wisdomaudio.com information@wisdomaudio.com Ph: 775.887.8850... -
Page 26: L75 Dimensions
L75 Dimensions... -
Page 27: L75M Dimensions
L75m Dimensions... -
Page 28: L75I Dimensions
L75i Dimensions... -
Page 29: Notes
Notes... - Page 30 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio 1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA Telephone: 775.887.8850 Fax: 775.887.8820 L75OM-1.04 © 10/2008 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
