Wisdom Sage ICS7a Series Owner's Manual

Wisdom Sage ICS7a Series Owner's Manual

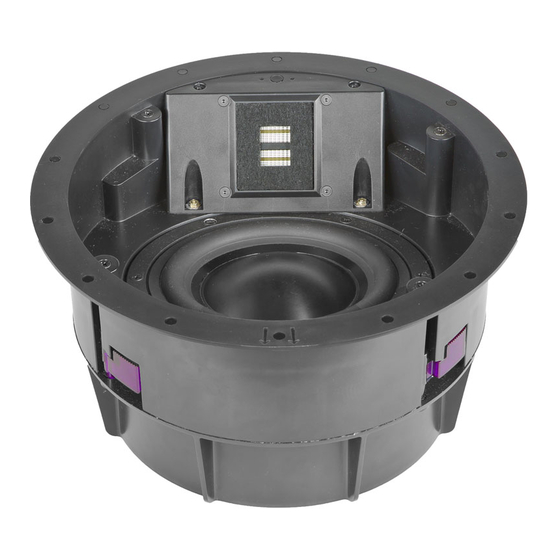

Planar magnetic hybrid loudspeaker
Hide thumbs Also See for Sage ICS7a Series:

Advertisement

Quick Links

Owner's Manual
Sage Series ICS7a
Planar Magnetic Hybrid Loudspeaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sage ICS7a Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wisdom Sage ICS7a Series

  • Page 1 Owner’s Manual Sage Series ICS7a Planar Magnetic Hybrid Loudspeaker...
  • Page 2: Table Of Contents

    Dimensions | 13 DOCUMENT CONVENTIONS This document contains general safety, installation, and operation instructions for the Wisdom Audio Sage Series ICS7a Loudspeaker. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.
  • Page 3: Introduction

    See the following section entitled “Description” for more information. While we expect your local Wisdom Audio dealer to take care of the setup and calibration of the system, we still recommend that you at least briefly review this and your other manuals to better understand your system’s full capabilities.
  • Page 4 One of the most remarkable things about the sound of well-designed planar magnetic speakers is their lack of thermal or dynamic compression. There are several reasons for this: • The lightweight diaphragm responds quickly to even the smallest signals yet is robust enough to handle a great deal of power.
  • Page 5: Unpacking And Installing The Ics7A

    One of Wisdom Audio’s strengths is in seamlessly blending these technologies – particularly important given the high standards set by our planar magnetic drivers. Of course, the dynamic woofers themselves must be rather extraordinary to “keep up”...
  • Page 6 Planar Magnetic Transducer housing. A. If the IC-LAT is used, proceed with step 8. If the IC-LAT is NOT used, skip to step 9 Fig. 1 IC-LAT attached to the ICS7a Planar Magnetic Hybrid Loudspeaker 8. If the IC-LAT Laser is used: Turn the laser on the IC-LAT on by rotating the thumbscrew slowly in a counter-clockwise direction until the laser is activated.
  • Page 7 a maximum opening of 2" (5.8 cm) Extended Coverage Waveguide (ECW) The purpose of the ECW is to allow the ICS7a to be used for more than one purpose. Depending on your intended purpose the included ECW may or may not be used.
  • Page 8: Your Ics7A And Subwoofers

    Wisdom Audio’s Regenerative Transmission Line™ (RTL™) subwoofers. In some installations, the ICS7a may be used full range rather than with a subwoofer. If so, we recommend using a high-performance Wisdom Audio SA amplifier or something comparable with between 200-500 watts per channel.
  • Page 9: Care And Maintenance

    Standard Warranty When purchased from and installed by an authorized Wisdom Audio dealer, Wisdom Audio loudspeakers are warranted to be free from defects in material and workmanship under normal use for a period of 10 years from the original date of purchase.
  • Page 10: Obtaining Service

    If your Wisdom Audio loudspeaker must be serviced, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, or whether to contact Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently.
  • Page 11 If the packaging to protect the unit is, in our opinion or that of our dealer, inadequate to protect the unit, we reserve the right to repackage it for return shipment at the owner’s expense. Neither Wisdom Audio nor your dealer can be responsible for shipping damage due to improper (that is, non-original) packaging.
  • Page 12: Specifications

    • Cutout dimensions: 10-1/8" (25.9 cm) • Dimensions: 11.57" x 11.57" x 6.57" (29cm x 29cm x 16.4cm) • Shipping weight, each: 16 lbs. (7.3 kg) For more information, see your Wisdom Audio dealer or contact:
 Wisdom Audio
 1572 College Parkway, Suite 164 Carson City, NV 89706 wisdomaudio.com...
  • Page 13: Dimensions

    ICS7a Dimensions SAGE SERIES ICS7a WISDOMAUDIO.COM...
  • Page 14 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio
1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA (775) 887-8850 (775) 887-8820 wisdomaudio.com Sage Series ICS7a OM © 11/2021 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
